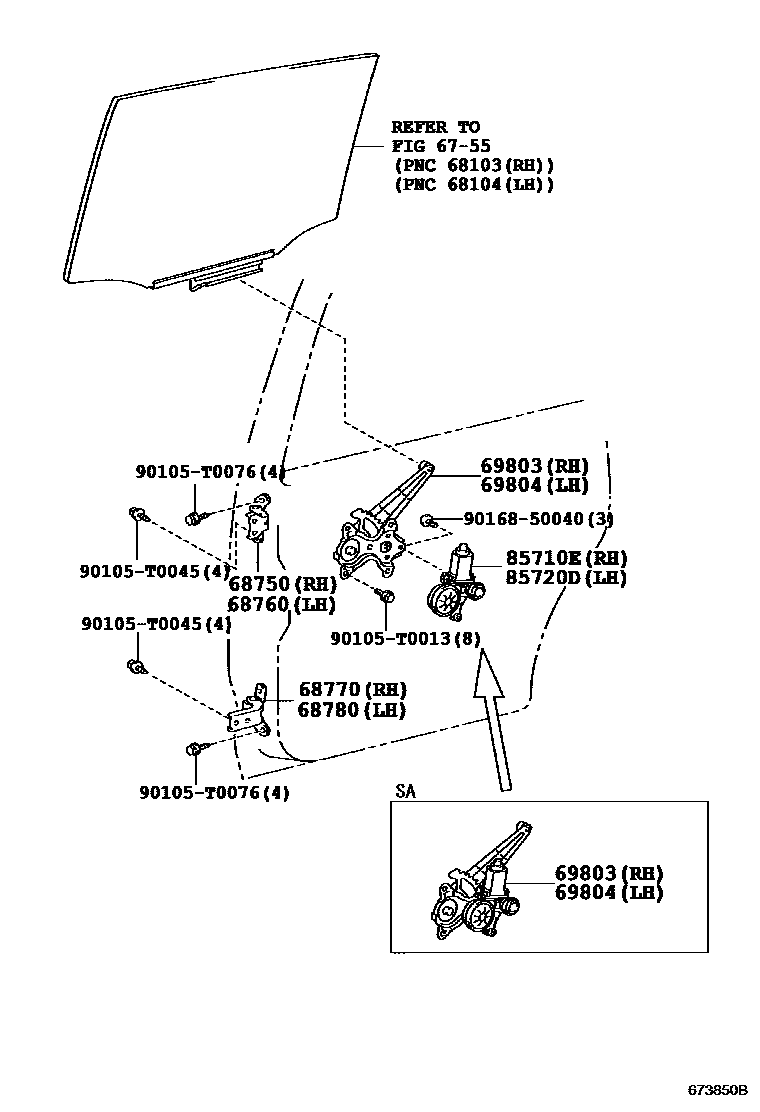

REAR DOOR WINDOW REGULATOR & HINGE

6755

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-0K010iKUN50,61..4FC..(MA,TH);GGN50,KUN51,60,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,MA,PHL,TH,VN)200808

main68750-0K020iGGN50,60,KUN51,61,LAN50,TGN51..SA200810-201108

main68750-0K030iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-200903

main68750-0K040iGGN50,KUN51,60,TGN51,61..IDSUV200808-201107

main68750-0K050iKUN51..IND200908

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-0K010iKUN50,61..4FC..(MA,TH);GGN50,KUN51,60,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,MA,PHL,TH,VN)200808

main68760-0K020iGGN50,60,KUN51,61,LAN50,TGN51..SA200810-201108

main68760-0K030iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-200903

main68760-0K040iGGN50,KUN51,60,TGN51,61..IDSUV200808-201107

main68760-0K050iKUN51..IND200908

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-02020iGGN50,60,KUN51,61,LAN50,TGN51..SA200704-200810

main68770-0K040iGGN50,TGN51,61..IDSUV200610-200808

main68770-0K050iKUN51..IND200908

main68770-52030iGGN50,60,KUN5#,6#,LAN50,TGN51,61200501-200609

main68770-52031iGGN50,60,KUN51,61,LAN50,TGN51..SA200610-200703

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-02020iGGN50,60,KUN51,61,LAN50,TGN51..SA200810-201108

main68780-0K040iGGN50,TGN51,61..IDSUV200610-200808

main68780-0K050iKUN51..IND200908

main68780-52030iGGN50,60,KUN5#,6#,LAN50,TGN51,61200501-200609

main68780-52031iGGN60,KUN50..(4FC,5FC)..(ANCOM,MA);GGN50,KUN51,6#,TGN51,61..(SUVW,THSUV)..(ANCOM,GCC,GEN,IDN,LA,MA,PHL,TH,VN)200808

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-0K010iGGN60..GEN200808-201107

main69803-0K050iGGN50,60,KUN51,61,TGN61..ANCOM,LA200509-200808

main69803-0K051iGGN50,60,KUN51,61,TGN61..ANCOM,LA200810

main69830-0K040iGGN50,60,KUN51,61,LAN50,TGN51..SA200810-200902

main69830-0K041iGGN50,60,KUN51,61,LAN50,TGN51..SA200903-201108

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-0K010iTGN61..IDSUV..(GCC,IDN);GGN50,KUN50,TGN51..GCC,GEN,IDN,MA,TH;KUN51,60,TGN61..(SUVW,THSUV)..(GCC,GEN,IDN,PHL,TH)200501-200809

main69804-0K050iGGN50,60,KUN51,61,TGN61..ANCOM,LA200509-200808

main69804-0K051iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200809-200903

main69840-0K040iGGN50,60,KUN51,61,LAN50,TGN51..SA200810-200902

main69840-0K041iGGN50,60,KUN51,61,LAN50,TGN51..SA200903-201108

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-0K020iTGN61..5F..LA;TGN61..IDSUV..(GCC,IDN);GGN60,TGN51..ANCOM,GCC,IDN,MA,TH;GGN50,KUN50,61..(5F,5FC)..(ANCOM,GCC,GEN,LA,MA);KUN51,60,TGN61..(SUVW,THSUV)..SR..(GCC,GEN,ID200501-200903

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-0K020iTGN61..5F..LA;TGN61..IDSUV..(GCC,IDN);GGN60,TGN51..ANCOM,GCC,IDN,MA,TH;GGN50,KUN50,61..(5F,5FC)..(ANCOM,GCC,GEN,LA,MA);KUN51,60,TGN61..(SUVW,THSUV)..SR..(GCC,GEN,ID200501-200903

90105T0013

main90105-T0013

90105T0045

main90105-T0045

90105T0076

main90105-T0076

9016850040

main90168-50040

13 parts on this diagram · 1 diagram in section
