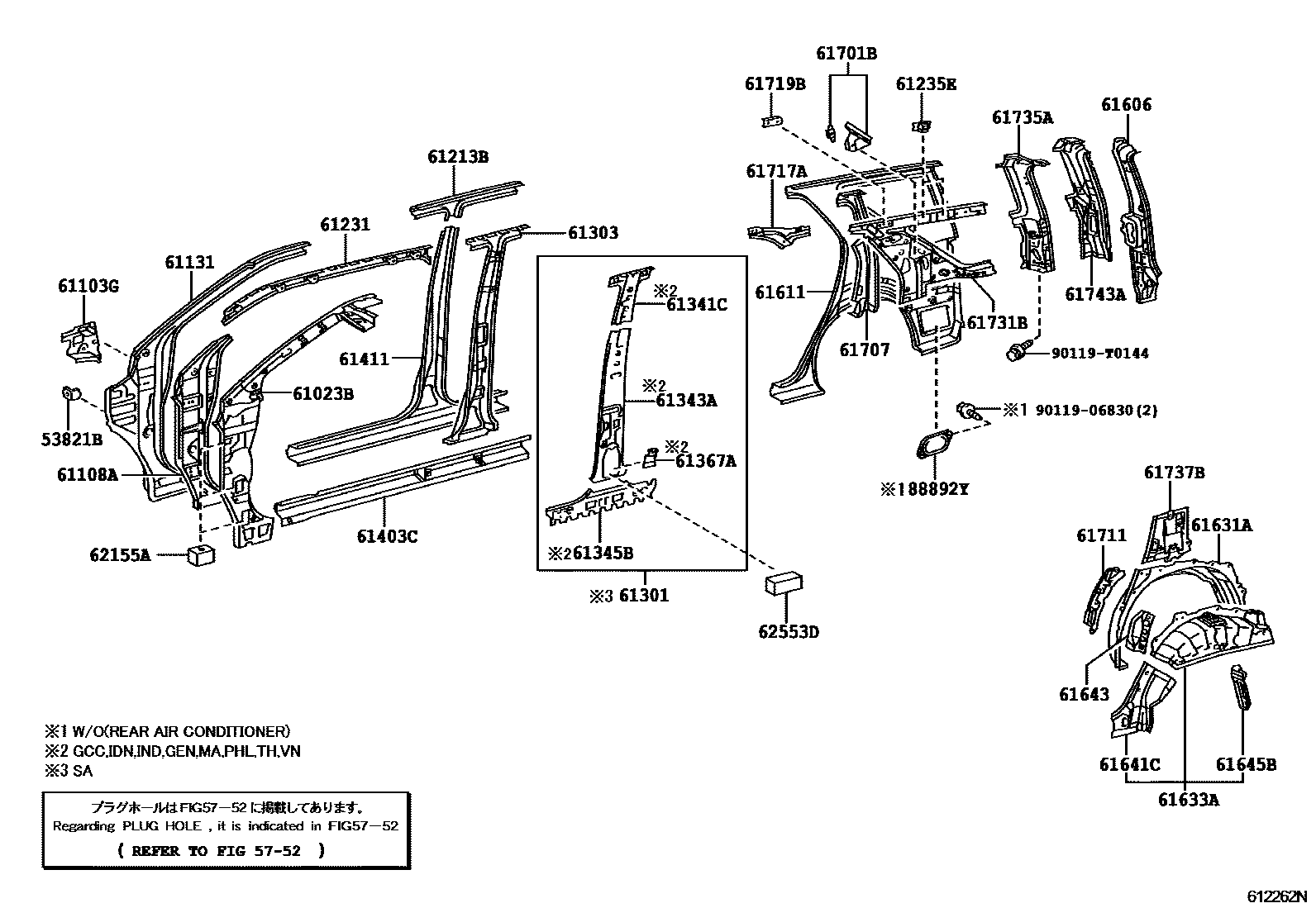

SIDE MEMBER

0001 1RH 0002 1LH 0003 1RH 0004 1LH

53821BBRACKET, FRONT FENDER, REAR RH

main53821-16010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

5752

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-0K020iTGN51..TH;KUN51,61,TGN61..LA200501-201102

sub61023-0K022

sub61023-0K130

main61023-0K022iGGN50,KUN51,61,TGN61..LA201103-201110

sub61023-0K091

main61023-0K091iGGN50..5FC..SA;GGN50..ANCOM,GCC,GEN;GGN60,KUN50..4FC,5FC;KUN51,6#,LAN50,TGN51,61..GCC,GEN,IDN,IND,MA,PHL,SA,TH,VN200808-201204

main61023-0K130iTGN61..IDSUV..(GCC,IDN);KUN51..(SUVW,THSUV)..(GEN,PHL,SA,TH);GGN60,TGN51..(4FC,5F)..(GCC,IDN,MA,SA);GGN60,KUN60,TGN61..SUVW..(ANCOM,GCC,IDN,PHL,TH);GGN50,KUN50,61,L200710-200903

61103GGUSSET SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61103-0K010iGGN60..GEN200501-201107

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-0K080iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-0K040iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

61231RAIL, ROOF SIDE, INNER RH

main61210-0K010iGGN50,60,KUN5#,6#,LAN50,TGN51,61200501-200710

main61210-0K011iTGN61..5F..LA;TGN61..IDSUV..(GCC,IDN);GGN60,TGN51..ANCOM,GCC,IDN,MA;GGN50,KUN50,61..(5F,5FC)..(ANCOM,GCC,GEN,LA,MA);KUN51,60,TGN61..(SUVW,THSUV)..SR..(GCC,GEN,IDN,L200710-201204

main61210-0K040iGGN50,60,KUN51,61,LAN50,TGN51..SA200710-201108

61235EBRACKET, ASSIST GRIP, NO.1

main61235-0K030iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

61301PILLAR SUB-ASSY, CENTER BODY, RH

main61301-0K901iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-200710

main61301-0K903iGGN50,60,KUN51,61,LAN50,TGN51..SA200710-200807

sub61301-0K904

main61301-0K904iGGN50,60,KUN51,61,LAN50,TGN51..SA200808-201108

61303REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH

main61303-0K010iKUN51,61,TGN61..LA200501-200810

main61303-0K060iTGN61..IDSUV..(GCC,IDN);KUN51..(SUVW,THSUV)..(GEN,PHL,SA,TH);GGN60,TGN51..(4FC,5F)..(GCC,IDN,MA,SA);GGN60,KUN60,TGN61..SUVW..(ANCOM,GCC,IDN,PHL,TH);GGN50,KUN50,61,L200710-201107

61341CPILLAR, CENTER BODY, INNER UPPER RH

main61341-0K010iGGN50,60,KUN5#,6#,TGN51,61..ANCOM,GCC,GEN,IDN,LA,MA,PHL,TH200501-200710

sub61341-0K040

main61341-0K040iTGN61..5F..LA;TGN61..IDSUV..(GCC,IDN);GGN60,TGN51..ANCOM,GCC,IDN,MA;GGN50,KUN50,61..(5F,5FC)..(ANCOM,GCC,GEN,LA,MA);KUN51,60,TGN61..(SUVW,THSUV)..SR..(GCC,GEN,IDN,L200710-201204

61343APILLAR, CENTER BODY, INNER RH

main61343-0K010iGGN50,60,KUN5#,6#,TGN51,61..ANCOM,GCC,GEN,IDN,LA,MA,PHL,TH200501-200710

sub61343-0K012

main61343-0K012iGGN50,KUN51,61,TGN61..LA200710-201110

main61343-0K040iGGN50,60,KUN5#,60,TGN51,61..ANCOM,GCC,GEN,IDN,MA,PHL,TH200710-200808

sub61343-0K041

main61343-0K041iTGN51..MA;GGN50,60,KUN50..(5F,5FC)..(ANCOM,MA)200808-201204

61345BPILLAR, CENTER BODY, INNER LOWER RH

main61345-0K010iTGN61..5F..LA;TGN61..IDSUV..(GCC,IDN);GGN60,TGN51..ANCOM,GCC,IDN,MA,TH;GGN50,KUN50,61..(5F,5FC)..(ANCOM,GCC,GEN,LA,MA);KUN51,60,TGN61..(SUVW,THSUV)..SR..(GCC,GEN,ID200501-201204

61367AREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER RH

main61367-0K010iTGN61..5F..LA;TGN61..IDSUV..(GCC,IDN);GGN60,TGN51..ANCOM,GCC,IDN,MA,TH;GGN50,KUN50,61..(5F,5FC)..(ANCOM,GCC,GEN,LA,MA);KUN51,60,TGN61..(SUVW,THSUV)..SR..(GCC,GEN,ID200501-201204

61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH

main61403-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

61411PANEL, ROCKER, OUTER RH

main61411-0K040iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

61606FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH

main61705-0K060iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

61611PANEL, QUARTER, RH

main61611-0K060iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-0K030iGGN50,60,KUN5#,6#,LAN50,TGN51,61..GCC,GEN,IDN,MA,PHL,SA,TH200501-200709

sub61631-0K031

main61631-0K031iTGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..(5F,5FC)..(GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,PHL,SA,TH)200710-201202

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-0K030iTGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..(5F,5FC)..(GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,PHL,SA,TH)200501-201107

main61607-0K040iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-200903

61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH

main61641-0K030iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

61643GUSSET, QUARTER WHEEL HOUSE CENTER, RH

main61643-0K020iKUN50,TGN51..MA200501-201202

61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-0K030iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

61701BPANEL SUB-ASSY, ROOF SIDE, INNER UPPER RH

main61701-0K020iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

61707PANEL SUB-ASSY, QUARTER, INNER RH

main61707-0K020iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

61711PANEL, ROOF SIDE, OUTER RH

main61711-0K020iTGN51..TH200501-201202

61717AREINFORCEMENT, QUARTER PANEL EXTENSION, RH

main61717-0K010iTGN51..TH200501-201107

61719BBRACKET, ROOF SIDE, INNER

main61719-0K010iKUN50,TGN51..MA200501-201107

61731BPANEL, ROOF SIDE, INNER RH

main61731-0K030iGGN50,60,KUN5#,6#,LAN50,TGN51,61200501-200709

sub61731-0K031

main61731-0K031iTGN51..GCC,IDN,MA,SA;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,G200710-200903

main61731-0K050iGGN60..GEN200808-201107

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-0K020iGGN50,60,KUN51,61,TGN61..ANCOM,LA200509-200709

sub61735-0K021

main61735-0K021iGGN50..ANCOM200710-200903

sub61735-0K903

main61735-0K901iTGN51..GCC,IDN,MA,SA;GGN50,60,KUN5#,6#,LAN50,TGN61..GCC,GEN,IDN,MA,PHL,SA,TH200501-200709

sub61735-0K903

main61735-0K903iKUN50,TGN51..MA200710-201107

61737BPANEL, ROOF SIDE, INNER LOWER RH

main61503-0K040iGGN50,60,KUN5#,6#,LAN50,TGN51,61200501-200709

sub61503-0K041

main61503-0K041iTGN51..GCC,IDN,MA,SA;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,G200710-201107

61743AREINFORCEMENT, BACK DOOR OPENING SIDE, RH

main61743-0K010iTGN51..TH200501-201107

62155APAD, COWL SIDE LOWER SILENCER

main62155-0K010iGGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)200501-201107

62553DPAD, PILLAR, NO.3

main62557-0K010iGGN60..GEN200501-201107

main62557-0K050iGGN50,KUN51,61,TGN61..LA201010

88892YCOVER, COOLER, NO.3

main88891-0K040iGGN50,TGN51,61..IDSUV..GCC200611-201107

main88891-0K060iGGN50,TGN51,61..SUVW..GCC200507-201108

main88891-0K080iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-200812

9011906830

main90119-06830

90119T0144

main90119-T0144

38 parts on this diagram · 4 diagrams in section
