CONSOLE BOX & BRACKET

0001 1 0002 1

58572ACUSHION, CONSOLE BOX

main58872-0K010iGGN50..LHD;GGN50..5FC..SA;GGN60,KUN50..4FC,5FC;KUN51,6#,LAN50,TGN51,61200501-201204

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-0K011-A0iGGN50,KUN5#,LAN50..RHD..5F200501-200810

IVORY,TRIM0#

sub58804-0K150

main58804-0K021-A0iGGN50,KUN51,TGN51..RHD..(4FC,5FC)200501-200810

IVORY,TRIM0#

sub58804-0K160

main58804-0K021-B0iKUN50,TGN51..MA200809-201109

GRAY,TRIM1#

sub58804-0K160

main58804-0K021-E0iGGN50,KUN5#,TGN51..RHD..(4FC,5FC)200808-201109

SAND BEIGE,TRIM4#

sub58804-0K160

main58804-0K031-A0iGGN60,KUN6#..RHD..SUVW..5F200504-200810

IVORY,TRIM0#

sub58804-0K170

main58804-0K041-A0iGGN50,KUN51,LAN50,TGN51..LHD..5F200507-200812

IVORY,TRIM0#

sub58804-0K180

main58804-0K051-A0iGGN50,TGN51..LHD..(4FC,5FC);KUN51..LHD..(SUVW,THSUV)..4FC200504-200812

IVORY,TRIM0#

sub58804-0K051

sub58804-0K190

main58804-0K051-E0iGGN50,KUN51,TGN51..LHD..(4FC,5FC)200808-201204

SAND BEIGE,TRIM4#

sub58804-0K051

sub58804-0K190

main58804-0K061-A0iKUN61,TGN61..LHD..5F;KUN60..SUVW..5F..PHL200504-200810

IVORY,TRIM0#

sub58804-0K200

main58804-0K081-A1iTGN61..RHD200504-200808

IVORY,TRIM0#

main58804-0K081-E1iGGN60,KUN6#,TGN61..RHD..(4FC,5FC)200808-201108

SAND BEIGE,TRIM4#

main58804-0K091-A1iTGN61..IDSUV..4FC..GCC;GGN60,KUN60,TGN61..LHD..SUVW..(4FC,5FC)..SR200504-200812

IVORY,TRIM0#

main58804-0K091-E1iGGN60,KUN60,TGN61..LHD..(4FC,5FC)200808-201204

SAND BEIGE,TRIM4#

main58804-0K260-E0iKUN51,LAN50..RHD..5F200808-201201

SAND BEIGE,TRIM4#

sub58804-0K300

main58804-0K270-E1iKUN6#..RHD..5F200808-201108

SAND BEIGE,TRIM4#

sub58804-0K310

main58804-0K280-E0iGGN50,KUN51,LAN50,TGN51..LHD..5F200808-201204

SAND BEIGE,TRIM4#

sub58804-0K320

sub58804-0K280

main58804-0K290-E1iKUN6#,TGN61..LHD..5F200808-201202

SAND BEIGE,TRIM4#

sub58804-0K330

sub58804-0K290

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-0K010-E0iGGN50,KUN5#,LAN50..RHD..5F200501-200810

SANDAL WOOD,TRIM0#

main58808-0K030-B0iKUN50,TGN51..MA200809-201109

DK.GRAY,TRIM1#

sub58808-0K030

main58808-0K030-E0iGGN50,KUN51,TGN51..RHD..(4FC,5FC)200501-200810

SANDAL WOOD,TRIM0#

sub58808-0K030

main58808-0K030-E1iGGN50,KUN5#,TGN51..RHD..(4FC,5FC)200808-201109

ASH BROWN,TRIM4#

sub58808-0K030

main58808-0K040-E0iKUN60..SUVW..5F;GGN60,KUN61,TGN61..5F200504-200810

SANDAL WOOD,TRIM0#

main58808-0K060-E0iGGN50,KUN51,LAN50,TGN51..LHD..5F200507-200812

SANDAL WOOD,TRIM0#

main58808-0K080-E0iGGN50,TGN51..LHD..(4FC,5FC);KUN51..LHD..(SUVW,THSUV)..4FC200504-200812

SANDAL WOOD,TRIM0#

sub58808-0K080

main58808-0K080-E1iGGN50,KUN51,TGN51..LHD..(4FC,5FC)200808-201204

ASH BROWN,TRIM4#

sub58808-0K080

main58808-0K120-E0iKUN51,LAN50..RHD..5F200808-201201

ASH BROWN,TRIM4#

main58808-0K130-E0iKUN6#,TGN61..5F200808-201202

ASH BROWN,TRIM4#

58810JBOX ASSY, CONSOLE

main58810-0K011-A0iKUN51,60..5F..(IDN,TH)200501-200808

IVORY,TRIM0#

sub58810-0K370

main58810-0K011-E1iKUN51,60..SUVW..5F..(IDN,TH)200808-201107

SAND BEIGE,TRIM4#

sub58810-0K370

main58810-0K031-A0iKUN51,TGN51,61..SUVW..4FC..(IDN,TH)200501-200808

IVORY,TRIM0#

sub58810-0K430

sub58810-0K400

main58810-0K031-E1iKUN51,61,TGN51,61..SUVW..4FC..(GEN,IDN,TH)200808-201107

SAND BEIGE,TRIM4#

sub58810-0K430

sub58810-0K400

main58810-0K041-A0iGGN50,KUN51,60,TGN51,61..(SUVW,THSUV)..(4FC,5FC)..(GCC,GEN,PHL)200504-200808

IVORY,TRIM0#

sub58810-0K530

main58810-0K041-E1iGGN50,60,KUN51,60,TGN51,61..LHD..(SUVW,THSUV)..(4FC,5FC)..(GCC,GEN,PHL)200808-201107

SAND BEIGE,TRIM4#

sub58810-0K530

main58810-0K130-A0iGGN50,KUN51,60,TGN51..(SUVW,THSUV)..5F..(GCC,GEN,PHL)200504-200808

IVORY,TRIM0#

sub58810-0K480

main58810-0K130-E1iGGN50,KUN51,60,TGN51,61..(SUVW,THSUV)..5F..(GCC,GEN,PHL)200808-201107

SAND BEIGE,TRIM4#

sub58810-0K480

58811DCLIP(FOR CONSOLE BOX)

main90467-T0002-A0iTGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR200501-200812

IVORY,TRIM0#

main90467-T0002-B0iKUN50,TGN51..MA200809-201109

GRAY,TRIM1#

main90467-T0002-E1iGGN50..LHD;GGN50..5FC..SA;GGN60,KUN50..4FC,5FC;KUN51,6#,LAN50,TGN51,61200808-201204

SAND BEIGE,TRIM4#

58837APAD, CONSOLE BOX SILENCER, NO.2

main58837-0K010iTGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR200501-201204

RH

main58837-0K020iGGN50..LHD;GGN50..5FC..SA;GGN60,KUN50..4FC,5FC;KUN51,6#,LAN50,TGN51,61200501-201204

LH

58839ACOVER, CONSOLE BOX HOLE

main58839-0K010-A0iTGN61..5F..LA;TGN61..IDSUV..GCC;KUN51..LHD..(SUVW,THSUV);GGN50,KUN61,LAN50,TGN51..LHD;GGN60,KUN60,TGN61..LHD..SUVW..SR200501-200812

IVORY,TRIM0#

sub58839-0K010

main58839-0K010-B0iKUN50,TGN51..MA200809-201109

GRAY,TRIM1#

sub58839-0K010

main58839-0K010-E1iGGN50..LHD;GGN50..5FC..SA;GGN60,KUN50..4FC,5FC;KUN51,6#,LAN50,TGN51,61200808-201204

SAND BEIGE,TRIM4#

sub58839-0K010

58844BEZEL, CONSOLE BOX

main58844-0K010-A0iKUN60..SUVW..5F;GGN60,KUN61,TGN61..5F200504-200810

IVORY,TRIM0#

main58844-0K020-E1iKUN6#,TGN61..5F200808-201202

SAND BEIGE,TRIM4#

sub58844-0K020

58901ABOX SUB-ASSY, CONSOLE, REAR

main58911-0K010-A0iKUN51..5F..LA;GGN50,TGN51,61..IDSUV..5F;GGN50,KUN61,LAN50,TGN51,61..LHD..5F..(ANCOM,LA,SA)200508-200812

IVORY,TRIM0#

sub58911-0K010

sub58911-0K130

main58911-0K010-B0iKUN51..5F..LA;GGN50,TGN51,61..IDSUV..5F;GGN50,KUN61,LAN50,TGN51,61..LHD..5F..(ANCOM,LA,SA)200509-200812

GRAY,TRIM1#

sub58911-0K010

sub58911-0K130

main58911-0K010-E1iGGN50..5F..ANCOM;GGN50,KUN60,TGN51,61..IDSUV..5F;KUN51,6#,LAN50,TGN51,61..5F..(IND,LA,SA,VN)200808-201204

SAND BEIGE,TRIM4#

sub58911-0K010

sub58911-0K130

main58911-0K020-A0iTGN51,61..IDSUV..IDN;GGN50,TGN51..(4FC,5FC)..(MA,SA)200508-200810

IVORY,TRIM0#

sub58911-0K010

main58911-0K020-B0iKUN50,TGN51..MA200809-201109

GRAY,TRIM1#

sub58911-0K010

main58911-0K020-E1iTGN51..MA;TGN51,61..IDSUV..IDN;GGN50,60,KUN5#,6#..(4FC,5FC)..(IDN,MA,SA)200808-201109

SAND BEIGE,TRIM4#

sub58911-0K010

main58911-0K050-A0iGGN50,60,KUN51..(4FC,5FC)..(ANCOM,LA);GGN50,TGN51,61..IDSUV..(4FC,5FC)..GCC200509-200812

IVORY,TRIM0#

sub58911-0K010

sub58911-0K160

main58911-0K050-E1iGGN50,KUN51,60,TGN51,61..LHD..IDSUV..(4FC,5FC);GGN50,60,KUN51,TGN51,61..(4FC,5FC)..(ANCOM,LA,VN)200808-201204

SAND BEIGE,TRIM4#

sub58911-0K010

sub58911-0K160

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-0K010-A0iTGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR200501-200812

IVORY,TRIM0#

sub58903-0K010

main58903-0K010-B0iKUN50,TGN51..MA200809-201109

GRAY,TRIM1#

sub58903-0K010

main58903-0K010-E1iGGN50..LHD;GGN50..5FC..SA;GGN60,KUN50..4FC,5FC;KUN51,6#,LAN50,TGN51,61200808-201204

SAND BEIGE,TRIM4#

sub58903-0K010

58904BCOVER SUB-ASSY, PARKING BRAKE HOLE

main58904-0K010-A0iTGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR200501-200812

IVORY,TRIM0#

sub58904-0K010

main58904-0K010-B0iKUN50,TGN51..MA200809-201109

GRAY,TRIM1#

sub58904-0K010

main58904-0K010-E1iGGN50..LHD;GGN50..5FC..SA;GGN60,KUN50..4FC,5FC;KUN51,6#,LAN50,TGN51,61200808-201204

SAND BEIGE,TRIM4#

sub58904-0K010

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-0K010-A0iTGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR200501-200812

IVORY,TRIM0#

sub58905-0K010

main58905-0K010-B0iKUN50,TGN51..MA200809-201109

GRAY,TRIM1#

sub58905-0K010

main58905-0K010-E1iGGN50..LHD;GGN50..5FC..SA;GGN60,KUN50..4FC,5FC;KUN51,6#,LAN50,TGN51,61200808-201204

SAND BEIGE,TRIM4#

sub58905-0K010

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-0K050iGGN50,60,KUN5#,6#,LAN50,TGN51,61201012-201204

main58907-12050iTGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR200501-201012

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-33030iTGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR200501-200812

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main90541-04079iTGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR200501-201109

main90541-04079iGGN50,60,KUN51,6#,TGN51,61201109

(J)

main90541-T0008iGGN50,60,KUN51,6#,TGN51,61..LHD201109

(L)

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-0K050iGGN50,60,KUN5#,6#,LAN50,TGN51,61201012-201204

(L)

main58964-20030iTGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR200501-200812

sub58964-0K020

main58964-20030iGGN50..LHD;GGN50..5FC..SA;GGN60,KUN50..4FC,5FC;KUN51,6#,LAN50,TGN51,61200808-201204

(J)

sub58964-0K020

58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2

main58965-0K070iGGN50,60,KUN5#,6#,LAN50,TGN51,61201012-201204

(L)

main58965-20040iTGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR200501-200812

sub58965-0K040

main58965-20040iGGN50..LHD;GGN50..5FC..SA;GGN60,KUN50..4FC,5FC;KUN51,6#,LAN50,TGN51,61200808-201204

(J)

sub58965-0K040

58995EBRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-0K010iKUN60..SUVW..5F;GGN50,60,KUN5#,61,LAN50,TGN51,61..5F200501-201204

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-0K010iTGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR200501-201204

9011906812

main90119-06812

90119T0075

main90119-T0075

90119T0234

main90119-T0234

90163T0001

main90163-T0001

90167T0007

main90167-T0007

90167T0012

main90167-T0012

90167T0023

main90167-T0023

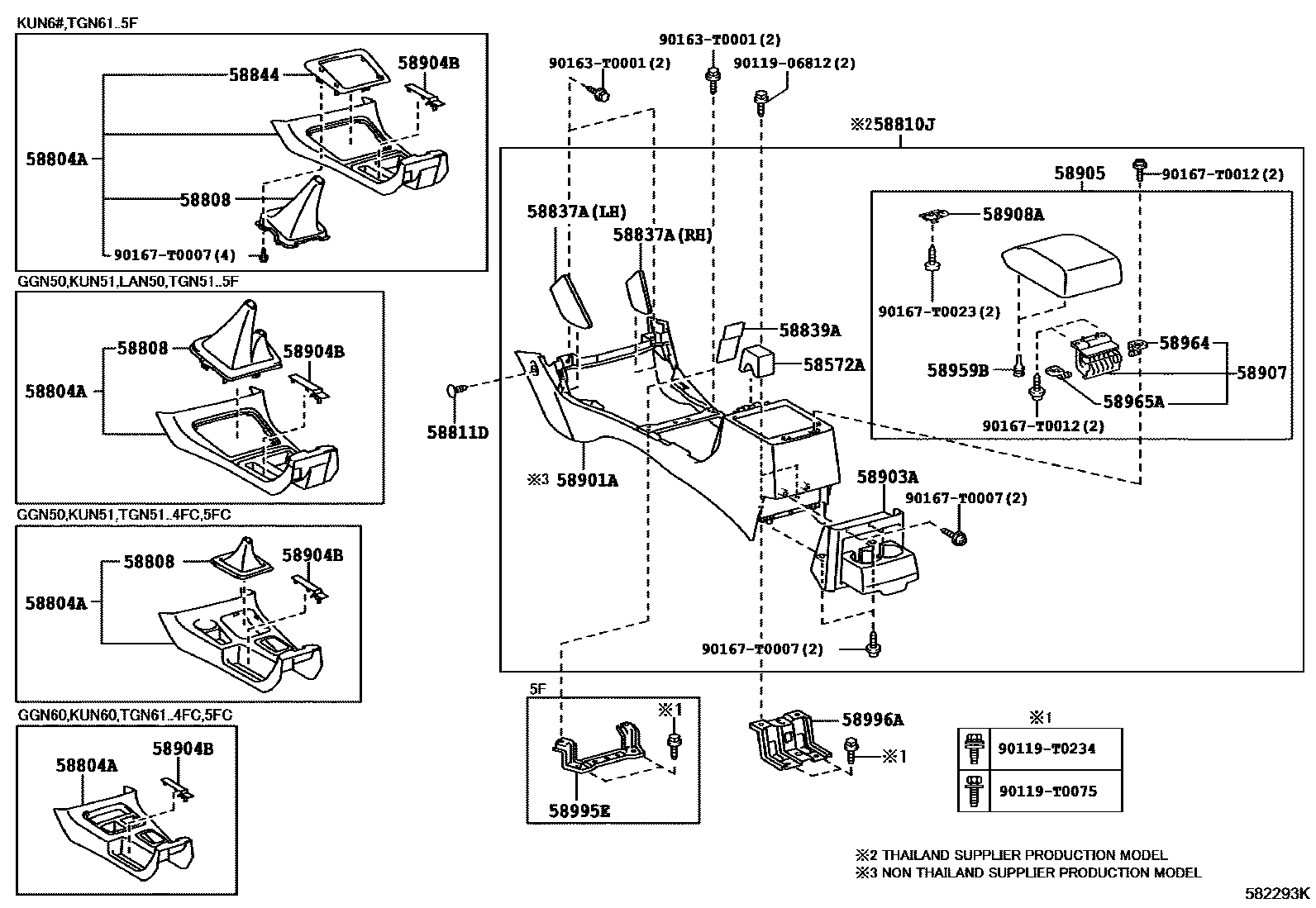

26 parts on this diagram · 2 diagrams in section
