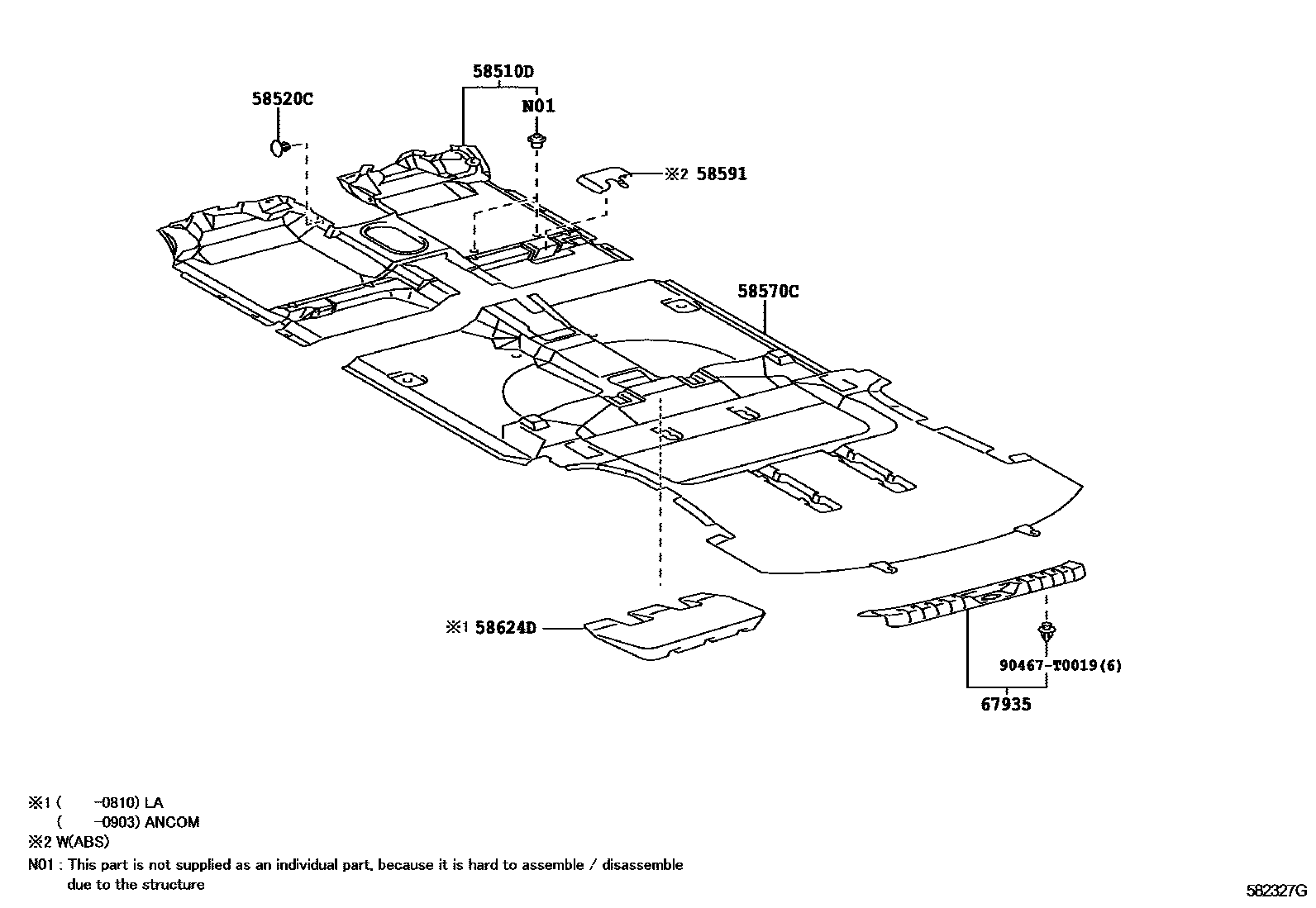

FLOOR MAT & SILENCER PAD

58510DCARPET ASSY, FLOOR, FRONT

main58510-0K560-A0iKUN51,60,TGN51,61..SUVW..(IDN,TH)200501-200808

IVORY,TRIM0#

main58510-0K590-A1iGGN50,KUN51,60,TGN51,61..(SUVW,THSUV)..(GCC,GEN,PHL)200504-200808

IVORY,TRIM0#

main58510-0K750-E0iGGN50,60,KUN51,61,LAN50..RHD..SA200602-200810

SANDALWOOD,TRIM0#

main58510-0K760-E0iKUN51,LAN50,TGN51..LHD..SA200605-200810

SANDALWOOD,TRIM0#

main58510-0K790-A1iKUN51,61,TGN61..LA200509-200810

IVORY,TRIM0#

main58510-0KC20-A0iGGN50,60..ANCOM200602-200812

IVORY,TRIM0#

main58510-0KC20-E1iGGN50..ANCOM200812-200903

SANDALWOOD,TRIM0#

main58510-0KC40-A0iKUN50,TGN51..MA200508-200809

IVORY,TRIM0#

main58510-0KC90-E0iKUN51..IND200908-201201

SAND BEIGE,TRIM4#

main58510-0KD90-A0iTGN51,61..IDSUV..IDN200610-200808

IVORY,TRIM0#

main58510-0KE00-A0iGGN50,TGN51,61..IDSUV..GCC200611-200808

IVORY,TRIM0#

main58510-0KF50-E1iGGN50,60,KUN51,61,LAN50..RHD..SA200810-201108

SANDALWOOD,TRIM4#

main58510-0KF60-E1iKUN51,LAN50,TGN51..LHD..SA200810-201108

SANDALWOOD,TRIM4#

main58510-0KF70-E0iKUN60,TGN51,61..IDSUV..IDN200808-201107

SAND BEIGE,TRIM4#

main58510-0KF80-E0iGGN50,KUN51,60,TGN51,61..LHD..IDSUV200808-201107

SAND BEIGE,TRIM4#

main58510-0KF90-E0iKUN50,TGN51..MA200809-201109

SAND BEIGE,TRIM4#

main58510-0KG00-E0iGGN50,KUN51,61,TGN61..LA200810-201110

SAND BEIGE,TRIM4#

main58510-0KG10-E0iGGN50,60..ANCOM200812-201204

SAND BEIGE,TRIM4#

main58510-0KG20-E0iKUN51,6#,TGN51,61..SUVW..(GEN,IDN,TH)200808-201107

SAND BEIGE,TRIM4#

main58510-0KG30-E0iGGN50,60,KUN51,60,TGN51,61..LHD..(SUVW,THSUV)..(GCC,GEN,PHL,VN)200808-201202

SAND BEIGE,TRIM4#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-T0029-E0×2iTGN61..5F..LA;TGN51..GCC,IDN,MA,TH;TGN61..IDSUV..(GCC,IDN);KUN51..(SUVW,THSUV)..(GEN,LA,PHL,TH);GGN50,KUN50,61..(5F,5FC)..(ANCOM,GCC,GEN,LA,MA);GGN60,KUN60,TGN61..S200501-200812

MD.NEUTRAL BONE,TRIM0#

main90467-T0029-E1×2iGGN60..5F;GGN50,KUN51,61,LAN50,TGN51..(5F,5FC)..SA200602-200903

SANDAL WOOD,TRIM0#

main90467-T0029-E4×2iKUN50..4FC;GGN50,60,KUN51,6#,TGN51,61..ANCOM,GCC,GEN,IDN,IND,LA,MA,PHL,TH,VN200808-201204

SAND BEIGE,TRIM4#

58570CCARPET ASSY, REAR FLOOR

main58570-0K010-A0iGGN50,KUN51,60,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,PHL,TH)200501-200808

IVORY,TRIM0#

main58570-0K010-E0iGGN50,60,KUN51,6#,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,PHL,TH)200808-201107

SAND BEIGE,TRIM4#

main58570-0K090-A0iKUN51..RHD..SA;GGN50,60,KUN61,LAN50,TGN51..SA200602-200810

IVORY,TRIM01

main58570-0K090-E0iGGN50,60,KUN51,61,LAN50,TGN51..SA200810-201108

SANDALWOOD,TRIM4#

main58570-0K110-A0iKUN51,61,TGN61..LA200509-200810

IVORY,TRIM0#

main58570-0K250-A0iGGN50,60..ANCOM200602-200812

IVORY,TRIM0#

main58570-0K250-E0iGGN50..ANCOM200812-200903

SANDALWOOD,TRIM0#

main58570-0K260-A0iKUN50,TGN51..MA200508-200809

IVORY,TRIM0#

main58570-0K260-E2iKUN50,TGN51..MA200809-201109

SAND BEIGE,TRIM4#

main58570-0K290-A0iGGN50,TGN51,61..IDSUV200610-200808

IVORY,TRIM0#

main58570-0K290-E0iGGN50,KUN51,60,TGN51,61..IDSUV200808-201107

SAND BEIGE,TRIM4#

main58570-0K330-E0iGGN50,KUN51,61,TGN61..LA200810-201110

SAND BEIGE,TRIM4#

main58570-0K340-E0iGGN50,60..ANCOM200812-201204

SAND BEIGE,TRIM4#

main58570-0K350-E0iKUN51..IND200908-201201

SAND BEIGE,TRIM4#

main58570-0K430-E0iKUN60,TGN51..VN201009-201202

SAND BEIGE,TRIM4#

58591COVER, FLOOR CARPET

main58591-0K010-E0iGGN50..GCC,GEN;GGN60..5FC..(GEN,SA);KUN51,6#..GEN,IDN,PHL,SA,TH,VN;GGN50,KUN50,TGN51,61..(4FC,5FC)..(IDN,MA,PHL,SA,TH,VN)200808-201202

SAND BEIGE,TRIM4#

58624DPAD, CENTER FLOOR SILENCER

main58624-0K020iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-200903

67935PLATE, BACK DOOR SCUFF

main67935-0K010-A0iTGN51,61..IDSUV..IDN200501-200803

IVORY,TRIM0#

main67935-0K010-E0iGGN50..GCC,GEN;GGN60..5FC..(GEN,SA);GGN50,KUN50..RHD..(4FC,5FC);KUN51,6#,LAN50,TGN51,61..GCC,GEN,IDN,IND,MA,PHL,SA,TH,VN200808-201202

SAND BEIGE,TRIM4#

main67935-0K030-A0iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-200903

IVORY,TRIM0#

main67935-0K030-E0iGGN50,60,KUN51,61,TGN61..ANCOM,LA200810-201204

SAND BEIGE,TRIM4#

90467T0019

main90467-T0019

7 parts on this diagram · 1 diagram in section
