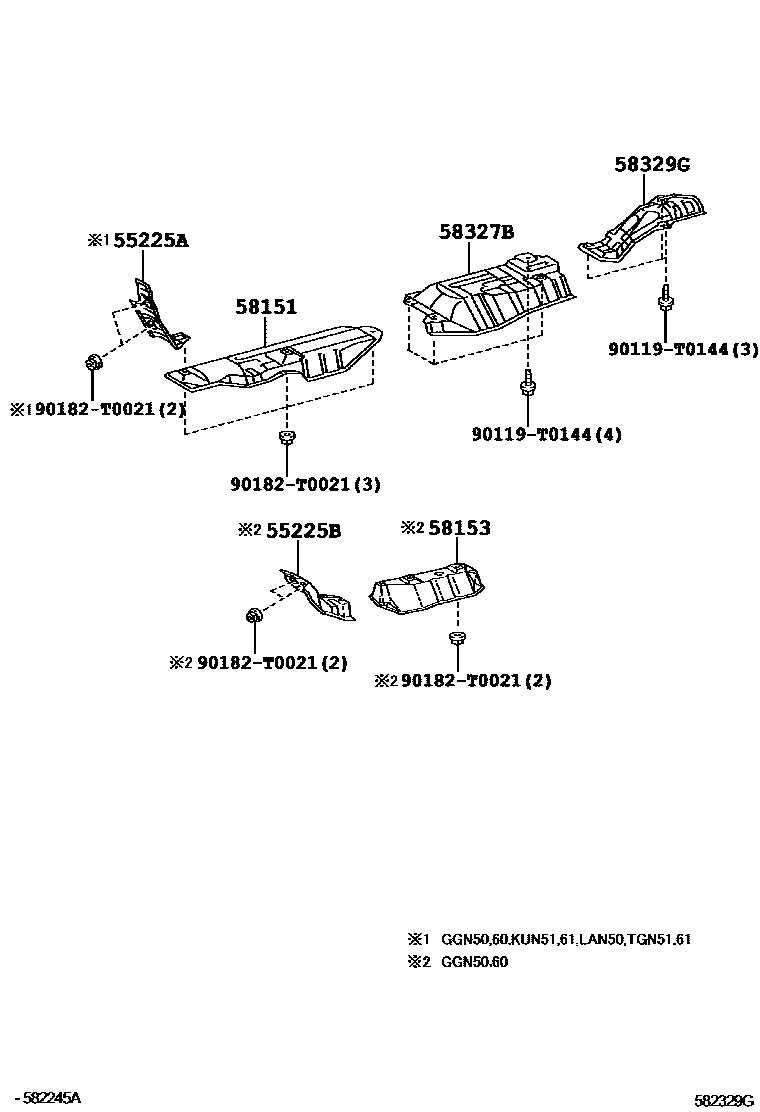

FLOOR INSULATOR

55225AINSULATOR, DASH PANEL HEAT, NO.1

main55225-0K010iTGN61..4FC..LA;GGN50,60,KUN51..ANCOM,IND200501-201105

sub55225-0K030

main55225-0K030iGGN50,KUN51,61,TGN61..LA201010-201107

55225BINSULATOR, DASH PANEL HEAT

main55225-0K020iGGN50..GCC,GEN200507-201107

sub55225-0K021

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-0K010iGGN60..GEN200501-201204

sub58151-0K030

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-0K010iGGN50..GCC,GEN200507-201107

sub58153-0K011

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-0K030iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201204

58329GINSULATOR, MAIN MUFFLER HEAT, REAR UPPER

main58329-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201204

90119T0144

main90119-T0144

90182T0021

main90182-T0021

8 parts on this diagram · 1 diagram in section
