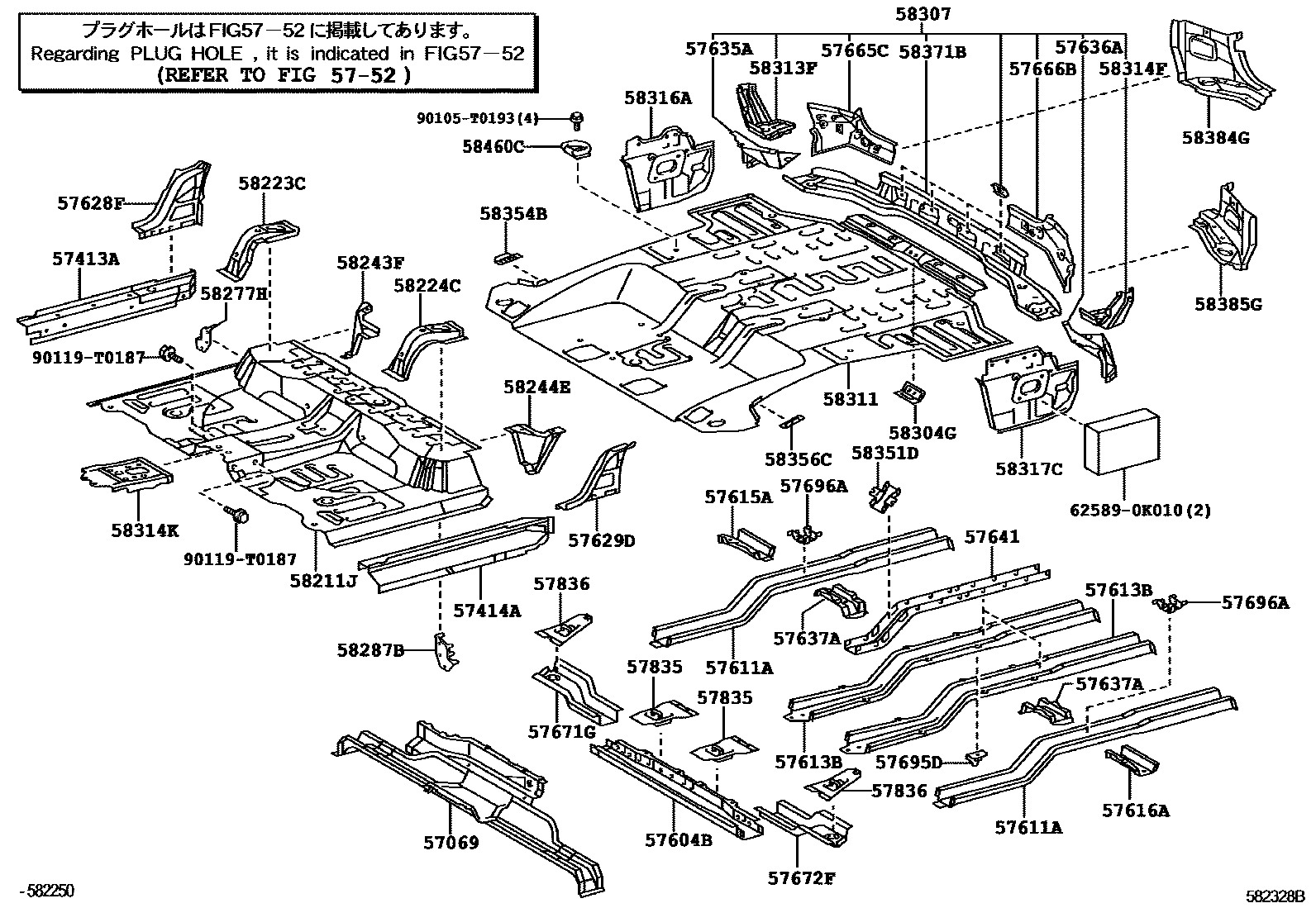

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0004 1

57069MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER

main57069-0K010iGGN60..GEN200501-201107

57413AMEMBER, FLOOR SIDE, INNER REAR RH

main57413-0K030iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

57414AMEMBER, FLOOR SIDE, INNER REAR LH

main57414-0K030iGGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)200501-201107

5752

57604BMEMBER SUB-ASSY, REAR FLOOR SIDE, NO.3

main57604-0K906iKUN50..4FC;GGN50,60,KUN51,6#,TGN51,61..GCC,GEN,IDN,MA,PHL,TH200501-200810

sub57604-0K909

main57604-0K909iGGN60..GEN200810-201107

57611AMEMBER, REAR FLOOR SIDE, RH

main57611-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

57613BMEMBER, REAR FLOOR SIDE CENTER, RH

main57613-0K010iTGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..(5F,5FC)..(GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,PHL,SA,TH)200501-201107

sub57613-0K090

sub57613-0K091

main57613-0K040iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA¥6,700200509-200903

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-0K010iTGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..(5F,5FC)..(GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,PHL,SA,TH)200501-201107

main57615-0K030iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-200903

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-0K010iGGN60..GEN200501-201107

main57616-0K030iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-200903

57628FPLATE, REAR FLOOR SIDE MEMBER, RH

main57628-0K020iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

57629DPLATE, REAR FLOOR SIDE MEMBER, LH

main57629-0K020iGGN60..GEN200501-201107

57635AREINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR RH

main57635-0K010iGGN60..GEN200501-201107

main57635-0K030iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA¥3,550200509-200903

57636AREINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR LH

main57636-0K010iGGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)200501-201107

main57636-0K030iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA¥3,550200509-200903

57637AREINFORCEMENT, REAR FLOOR SIDE, RH

main57637-0K010iGGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)200501-201107

57641REINFORCEMENT, REAR FLOOR SIDE MEMBER, INNER RH

main57641-0K040iGGN60..GEN200501-201107

57665CPANEL, LOWER BACK SIDE, RH

main57665-0K030iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

57666BPANEL, LOWER BACK SIDE, LH

main57666-0K030iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

57671GMEMBER, REAR FLOOR CROSS, NO.1 RH

main57671-0K010iGGN60..GEN200501-201107

57672FMEMBER, REAR FLOOR CROSS, NO.1 LH

main57672-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

57695DBRACKET, REAR FLOOR MOUNTING, NO.2 RH

main57695-0K010iTGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..(5F,5FC)..(GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,PHL,SA,TH)200501-201107

57696AEXTENSION, REAR FLOOR CROSSMEMBER REAR SIDE, LH

main57696-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

57835REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.1

main57835-0K020iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

57836REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.2

main57836-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

58211JPAN, CENTER FLOOR

main58211-0K020iGGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)200501-201107

58223CREINFORCEMENT, SEAT SET, NO.1

main58223-0K020iGGN50,60,KUN5#,6#,LAN50,TGN51,61..ANCOM,GCC,GEN,IDN,IND,LA,MA,PHL,SA,TH200501-201009

main58223-0K030iKUN60,TGN51..VN201009

58224CREINFORCEMENT, SEAT SET, NO.2

main58224-0K020iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201009

main58224-0K030iKUN60,TGN51..VN201009

58243FPANEL, FLOOR SIDE, REAR RH

main58243-0K050iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

58244EPANEL, FRONT FLOOR SIDE, REAR LH

main58244-0K020iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

58277HREINFORCEMENT, SIDE FLOOR, NO.2 RH

main58277-0K020iGGN50..ANCOM200501-201107

58287BREINFORCEMENT, SIDE FLOOR, NO.2 LH

main58287-0K020iTGN51..TH200501-201107

58304GREINFORCE SUB-ASSY, BODY LOWER BACK PANEL

main58304-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

sub58304-0K030

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-0K010iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-200903

main58307-0K901iTGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..(5F,5FC)..(GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,PHL,SA,TH)200501-201107

58311PAN, REAR FLOOR

main58311-0K120iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-200903

sub58311-0K121

sub58311-0K122

main58311-0K140iTGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..(5F,5FC)..(GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,PHL,SA,TH)200501-201107

sub58311-0K141

58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH

main58305-0K040iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH

main58306-0K040iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

58314KPANEL, REAR FLOOR, CENTER

main58314-0K020iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

58316AEXTENSION, REAR FLOOR SIDE PANEL, REAR RH

main58316-0K020iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

sub58316-0K021

58317CEXTENSION, REAR FLOOR SIDE PANEL, REAR LH

main58317-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

sub58317-0K011

58351DREINFORCEMENT, REAR FLOOR PANEL

main58351-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

58354BREINFORCEMENT, REAR FLOOR PANEL, NO.4

main58354-0K030iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

58356CREINFORCEMENT, REAR FLOOR PANEL, NO.6

main58356-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

58371BPANEL, BODY LOWER BACK, OUTER

main58371-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

58384GGUSSET, LOWER BACK, UPPER RH

main58384-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

58385GGUSSET, LOWER BACK, UPPER LH

main58385-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

58460CSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-35012iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA¥680200509-200903

625890K010GARNISH, BACK PANEL

main62589-0K010

90105T0193

main90105-T0193

90119T0187

main90119-T0187

48 parts on this diagram · 2 diagrams in section
