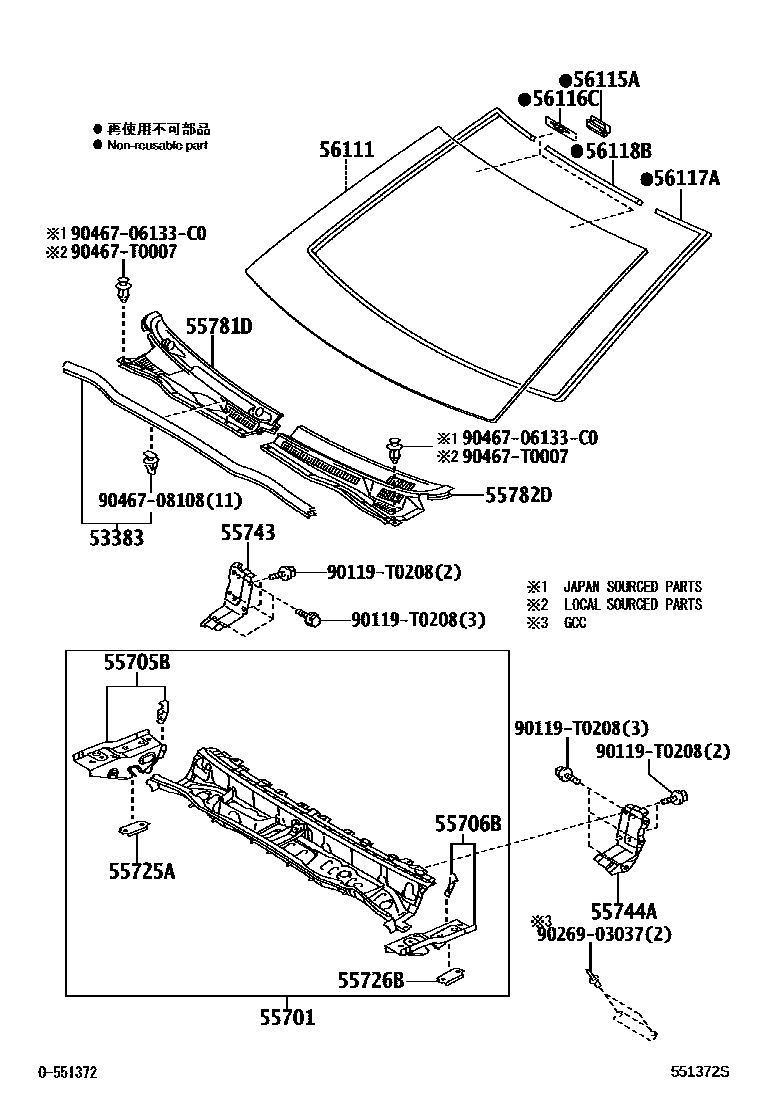

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

53383SEAL, HOOD TO COWL TOP

main53383-0K010iTGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..(5F,5FC)..(GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,PHL,SA,TH)200501-201204

main53383-0K020iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-201204

sub53383-0K010

55701PANEL SUB-ASSY, COWL

main55700-0K010iKUN51,6#,LAN50..RHD;GGN50,60,KUN50,TGN51,61..RHD..(4FC,5FC)200501-201204

main55700-0K020iGGN60..GEN200504-201204

main55700-0K030iGGN50,TGN51,61..GCC200507-201107

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-0K050iGGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)200501-201204

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-0K050iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201204

55725AREINFORCEMENT, HOOD HINGE MOUNTING, RH

main55725-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201204

55726BREINFORCEMENT, HOOD HINGE MOUNTING, LH

main55725-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201204

55743PANEL, COWL TOP OUTSIDE CORNER, RH

main55743-0K010iGGN60..GEN200501-201204

55744AREINFORCEMENT, PEDAL BRACKET MOUNTING

main55744-0K010iGGN60..GEN200501-201204

55781DLOUVER, COWL TOP VENTILATOR, RH

main55708-0K010iKUN51,60..RHD..(GEN,IDN,IND,TH);KUN50,61,TGN51,61..4FC..(IDN,MA,TH)200501-201204

sub55708-0K290¥7,800

main55708-0K020iGGN50,KUN51,60,TGN51,61..GCC,GEN,PHL200504-201204

sub55708-0K021

main55708-0K040iGGN50,60,KUN51,61,LAN50..RHD..SA200602-201108

main55708-0K050iKUN51,LAN50,TGN51..LHD..SA200605-201108

main55708-0K070iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-201204

55782DLOUVER, COWL TOP VENTILATOR, LH

main55709-0K010iKUN51,60..RHD..(GEN,IDN,IND,TH);KUN50,61,TGN51,61..4FC..(IDN,MA,TH)200501-201204

main55709-0K020iGGN60..GEN200504-201204

sub55709-0K021

main55709-0K040iGGN50,60,KUN51,61,LAN50..RHD..SA200602-201108

main55709-0K050iKUN51,LAN50,TGN51..LHD..SA200605-201108

main55709-0K070iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-201204

56111GLASS, WINDSHIELD

main56101-0K010iGGN50,60..ANCOM200602-201201

*LAM,T=4.76,GREEN

sub56101-0K190

main56101-0K020iTGN51..TH¥104,000200501-201109

*LAM,T=4.76,GREEN

sub56101-0K200¥104,000

main56101-0K030iTGN51,61..GCC200507-200712

*LAM,T=4.76,GREEN

sub56101-0K031

main56101-0K031iTGN51,61..GCC200801-201107

*LAM,T=4.76,GREEN

sub56101-0K041

main56101-0K040iGGN50..GCC200507-200712

*LAM,T=4.76,GREEN

sub56101-0K041

main56101-0K041iGGN50..GCC200801-201107

*LAM,T=4.76,GREEN

sub56101-0K043

main56101-0K060iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-201108

*LAM,T=4.96,GREEN

main56101-0K070iKUN51,61,TGN61..LA200509-201204

*LAM,T=4.96,GREEN

sub56101-0K071

main56101-0K170iKUN51..THSUV200808-201107

*LAM,T=4.96,GREEN

main56101-0K180iGGN50,KUN51..LA200810-201204

*LAM,T=4.96,GREEN

sub56101-0K181

main56101-0K190iGGN50,60..GEN200801-201107

*LAM,T=4.76,GREEN

sub56101-0K192

main56101-0K200iKUN51,6#,TGN51,61..(IDSUV,SUVW)..(GEN,IDN,PHL,TH,VN)¥104,000200801-201204

*LAM,T=4.76,GREEN

sub56101-0K201

main56101-0K210iKUN51..IND200908-201204

*LAM,T=4.76,GREEN

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-02020iGGN50..GCC,GEN,LA;KUN51,6#,LAN50,TGN51,61;GGN50,60,KUN50..RHD..(4FC,5FC)200501-201204

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-02020iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201204

56117ADAM, WINDOW GLASS ADHESIVE

main56117-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC¥920200501-201204

L=3089

56118BDAM, WINDOW GLASS ADHESIVE, NO.2

main56118-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC¥410200501-201204

L=706

90119T0208

main90119-T0208

9026903037

main90269-03037¥110

9046706133C0

main90467-06133C0

9046708108

main90467-08108¥70

90467T0007

main90467-T0007¥70

20 parts on this diagram · 2 diagrams in section
