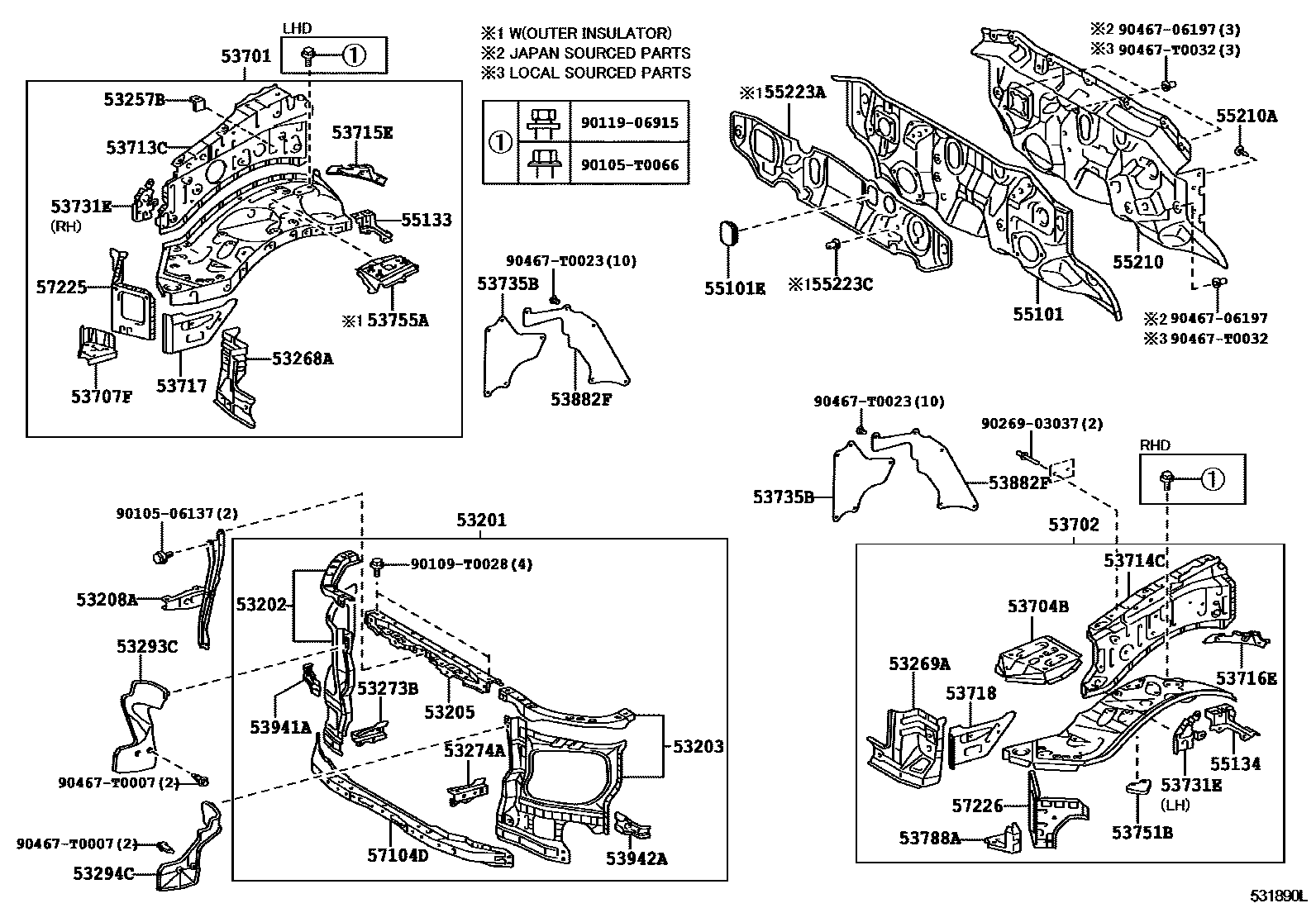

FRONT FENDER APRON & DASH PANEL

53201SUPPORT SUB-ASSY, RADIATOR

main53201-0K010iKUN51,TGN51200501-200903

main53201-0K050iGGN50,KUN51,60,TGN51,61..GCC,GEN,IDN,PHL,TH200504-201107

sub53201-0K220

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-0K010iKUN51,TGN51200501-200903

main53205-0K040iGGN50,KUN51,60,TGN51,61..GCC,GEN,IDN,PHL,TH200504-201107

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-0K010iGGN50..5FC..SA;GGN50..ANCOM,LA;GGN60..SUVW..5FC;KUN5#,6#,LAN50,TGN51,61..LA,MA,SA,VN200501-200903

main53208-0K040iGGN50,KUN51,6#,TGN51,61..GCC,GEN,IDN,IND,PHL,TH200504-201107

53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER

main53257-35030iGGN60..GEN200501-201204

main53257-35030iKUN51,61..RHD..5F..SA200810-201108

ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT

53268AREINFORCEMENT, RADIATOR MOUNTING, RH

main53268-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201204

53269AREINFORCEMENT, RADIATOR MOUNTING, LH

main53269-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

53273BBRACKET, RADIATOR SUPPORT TO FRONT FENDER, RH

main53273-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

53274AREINFORCEMENT, RADIATOR SUPPORT, LH

main53274-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

53293CDEFLECTOR, RADIATOR SIDE, RH

main53293-0K010iTGN51..GCC,IDN,MA,SA;GGN50,60,KUN5#,6#,LAN50,TGN61200501-200711

sub53293-0K011

main53293-0K011iTGN51..GCC,IDN,MA,SA;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,G200711-201107

53294CDEFLECTOR, RADIATOR SIDE, LH

main53294-0K010iTGN51..GCC,IDN,MA,SA;GGN50,60,KUN5#,6#,LAN50,TGN61200501-200711

sub53294-0K011

main53294-0K011iTGN51..GCC,IDN,MA,SA;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,G200711-201107

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-0K010iKUN5#,60..RHD200501-200512

sub53701-0K011

main53701-0K011iKUN51..IND200601-201105

sub53701-0K012

main53701-0K012iKUN5#,6#..SUVW..(GEN,IDN,MA,TH)201106-201109

main53701-0K020iTGN51,61..RHD200501-200512

sub53701-0K021

main53701-0K021iTGN51,61..RHD..SUVW200601-201105

sub53701-0K022

main53701-0K022iTGN51,61..RHD..SUVW201106-201109

main53701-0K030iGGN50,KUN51,6#..LHD200504-200512

sub53701-0K031

main53701-0K031iGGN50..IDSUV;GGN50,60..ANCOM200601-201203

sub53701-0K190

main53701-0K040iTGN51,61..LHD200504-200512

sub53701-0K041

main53701-0K041iTGN61..5F..LA;TGN51,61..LHD..SUVW..SR200601-201107

sub53701-0K200

main53701-0K051iLAN50200605-201107

sub53701-0K052

main53701-0K181iLAN50..RHD200810-201107

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

sub53701-0K182

main53701-0K181iGGN50,60,KUN51,61..RHD..SA200602-200810

sub53701-0K182

main53701-0K190iGGN60..GEN201010-201204

main53701-0K200iTGN51,61..LHD..SUVW..SR201010-201204

main53701-0K210iTGN51,61..IDSUV..IDN200710-201107

main53701-0K220iKUN60..IDSUV..IDN200808-201107

main53701-0K230iKUN51,60..IDSUV..PHL200808-201107

main53701-0K240iTGN61..IDSUV..PHL200808-201107

main53701-0K310iKUN51..IND201010-201204

main53701-0K330iTGN61..LA201010-201109

sub53701-0K331

main53701-0K340iGGN50,KUN51,61..LA201010-201109

sub53701-0K341

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-0K010iTGN61..5F..LA;KUN51,60..RHD..SUVW;TGN51,61..IDSUV..GCC;TGN61..SUVW..(GCC,IDN,TH);GGN50,60,KUN50..RHD..(4FC,5FC);KUN61,LAN50,TGN51..SUVW..(GCC,IDN,LA,MA,SA,TH)200501-201203

sub53702-0K011

main53702-0K020iGGN50..LHD;KUN51..LHD..(SUVW,THSUV);GGN60,KUN60,TGN51,61..SUVW..(ANCOM,PHL,VN)200808-201203

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

sub53702-0K021

sub44507-0K011

sub44590-0K011

sub44590-0K021

sub90179-08249

main53702-0K020iGGN50..LHD;KUN51..LHD..(SUVW,THSUV);GGN60,KUN60,TGN61..SUVW..(ANCOM,PHL)200504-201107

sub53702-0K021

sub44507-0K011

sub44590-0K011

sub44590-0K021

sub90179-08249

main53702-0K100iKUN60,TGN51,61..IDSUV..IDN200710-201107

sub53702-0K101

main53702-0K110iKUN51,60,TGN61..IDSUV..PHL200808-201107

sub53702-0K111

sub44507-0K011

sub44590-0K011

sub44590-0K021

sub90182-T0018

53704BSUPPORT SUB-ASSY, BATTERY, LH

main53704-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

53707FGUSSET SUB-ASSY, FRONT FENDER APRON, LOWER RH

main53707-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201204

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201204

main53713-0K040iGGN50,KUN51,61,TGN61..LA201010-201204

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201204

53715EEXTENSION, FRONT FENDER APRON, REAR RH

main53715-0K030iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201204

53716EEXTENSION, FRONT FENDER APRON, REAR LH

main53716-0K030iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201204

53717PLATE, FENDER APRON, RH

main53717-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201204

53718PLATE, FENDER APRON, LH

main53718-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

53731EPATCH, FRONT FENDER APRON

main53731-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201204

RH

main53732-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201204

LH

53735BSEAL, FRONT FENDER APRON, UPPER

main53735-0K020iGGN60..GEN200501-201204

53751BBRACKET, CHARCOAL CANISTER MOUNTING

main53751-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

53755AREINFORCEMENT, BRAKE ACTUATOR MOUNTING, NO.1

main53755-0K010iTGN51..TH200501-200810

53788AGUSSET, FRONT FENDER APRON, LOWER LH

main53708-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

53882FSEAL, FRONT FENDER

main53885-0K020iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201204

53941ABRACKET, FRONT END PANEL, NO.1 RH

main53941-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

53942ABRACKET, FRONT END PANEL, NO.1 LH

main53941-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

55101PANEL SUB-ASSY, DASH

main55101-0K010iKUN51,6#,LAN50..RHD..5F200501-200810

main55101-0K020iTGN51,61..IDSUV..IDN200501-201109

main55101-0K030iKUN51,60,LAN50,TGN51,61..LHD..5F..(GCC,GEN,PHL,SA,VN)200504-201103

main55101-0K040iGGN50,TGN51..IDSUV..(4FC,5FC)..GCC200504-201107

main55101-0K110iGGN50,60..5F..SA200602-200810

main55101-0K120iGGN50..LHD..5F200507-200903

main55101-0K160iKUN51,61,TGN61..5F..LA201103

main55101-0K170iGGN50,KUN51..(4FC,5FC)..LA201103

55101EGROMMET, DASH PANEL, NO.2

main87128-0K010iGGN60..GEN200509-201107

main87128-0K020iGGN50,TGN51,61..IDSUV..GCC200611-200808

main87128-0K060iKUN51,60..SUVW..(IDN,PHL,TH);KUN50,61,TGN51,61..SUVW..4FC..(IDN,MA,PHL,TH)200501-201109

main87128-0K070iTGN51,61..IDSUV..IDN200610-201107

55133PLATE, FRONT FENDER APRON SET, LOWER RH

main55133-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201204

55134PLATE, FRONT FENDER APRON SET, LOWER LH

main55134-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

55210INSULATOR ASSY, DASH PANEL

main55210-0K010iKUN5#,60,TGN51,61..RHD200501-200511

sub55210-0K011

main55210-0K011iKUN60..SUVW..IDN;KUN5#,TGN51,61..IDN,MA,TH200512-200809

main55210-0K020iGGN50,KUN51,60,TGN51,61..GCC,PHL200504-200511

sub55210-0K021

main55210-0K021iGGN50,KUN51,60,TGN51,61..GCC,GEN,PHL200512-201107

main55210-0K030iGGN50,60,KUN51,61,LAN50..RHD..SA200602-201108

main55210-0K040iTGN61..5F..LA;GGN50,60,KUN51,61,LAN50,TGN51..LHD..(ANCOM,LA,SA)200509-200903

55210ACLIP

main90467-T0004-A0iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

IVORY,TRIM0#

main90467-T0004-B0iKUN50,TGN51..MA200809-201109

LT.GRAY,TRIM1#

main90467-T0004-E1iGGN50..LHD;GGN50..5FC..SA;GGN60,KUN50..4FC,5FC;KUN51,6#,LAN50,TGN51,61200808-201204

SAND BEIGE,TRIM4#

55223AINSULATOR, DASH PANEL, OUTER

main55223-0K010iKUN51..RHD;KUN50,6#,LAN50..RHD..SUVW..5F200501-200810

main55223-0K020iKUN51,6#,LAN50..LHD200504-200810

55223CCLIP

main90467-06197iKUN51..RHD;KUN50,6#,LAN50..RHD..SUVW..5F200607-200810

(J)

main90467-06197iKUN5#,6#,LAN50..RHD200501-200607

main90467-T0032iKUN51,6#,LAN50..LHD..(SUVW,THSUV)200607-200810

(L)

57104DMEMBER SUB-ASSY, FRONT CROSS

main57161-0K010iGGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)200501-201107

57225BRACE, FRONT MOUNTING BRACKET, RH

main57225-0K010iGGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)200501-201204

57226BRACE, FRONT MOUNTING BRACKET, LH

main57226-0K010iGGN50..LHD;TGN61..IDSUV..IDN;GGN60,TGN51..ANCOM,IDN;KUN51..LHD..(SUVW,THSUV);KUN60,TGN61..SUVW..(IDN,PHL)200504-201107

9010506137

main90105-06137

90105T0066

main90105-T0066

90109T0028

main90109-T0028

9011906915

main90119-06915

9026903037

main90269-03037

9046706197

main90467-06197

90467T0007

main90467-T0007

90467T0023

main90467-T0023

90467T0032

main90467-T0032

50 parts on this diagram · 1 diagram in section
