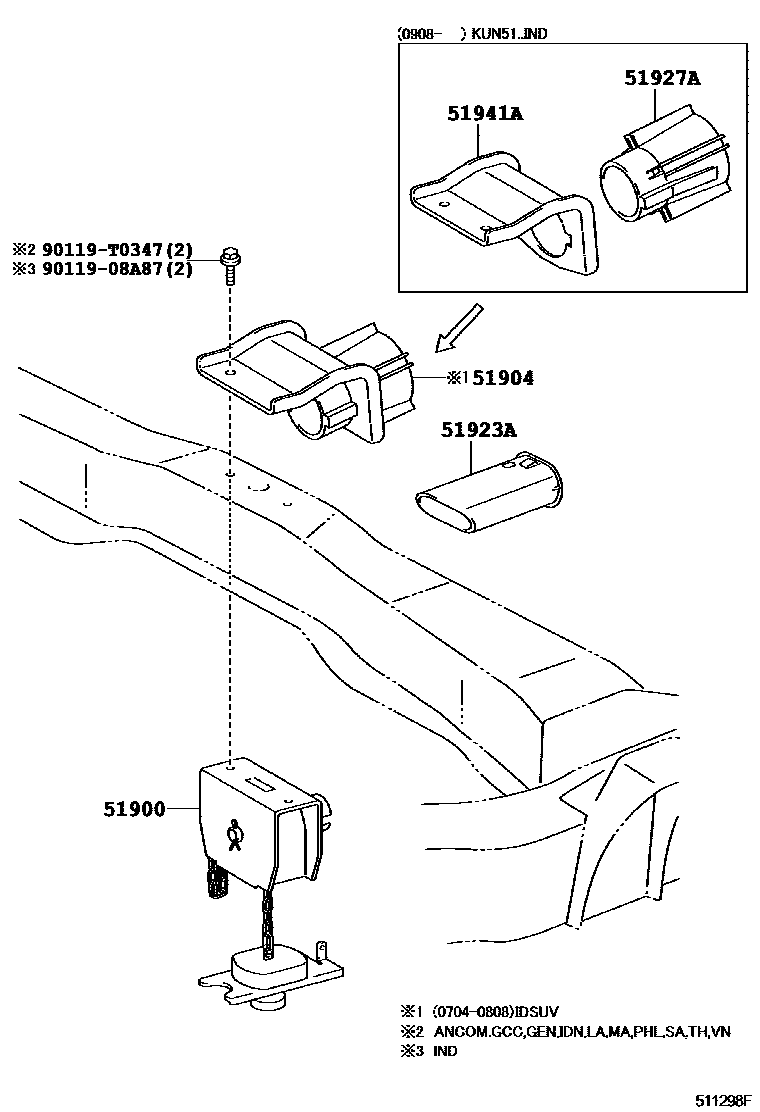

SPARE WHEEL CARRIER

51900CARRIER ASSY, SPARE WHEEL

main51900-0K050iGGN50,60,KUN51,61..SA200501-200603

sub51900-0K051

main51900-0K051iGGN50..GCC,GEN;GGN50,60,KUN50..RHD..(4FC,5FC);KUN51,6#,LAN50,TGN51,61..GCC,GEN,IDN,MA,PHL,SA,TH,VN200603-201107

main51900-0K070iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-200903

main51900-0K090iKUN51..IND200908

51904BRACKET SUB-ASSY, SPEARE WHEEL CARRIER

main51904-0K010iGGN50,TGN51,61..IDSUV200704-200808

51923AGUIDE, SPARE WHELL CARRIER HANDLE

main51927-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

51927AGUIDE, SPARE WHEEL

main51927-0K021iKUN51..IND200908

51941ABRACKET, SPARE WHEEL CARRIER

main51941-0K021iKUN51..IND200908

9011908A87

main90119-08A87

90119T0347

main90119-T0347

7 parts on this diagram · 1 diagram in section
