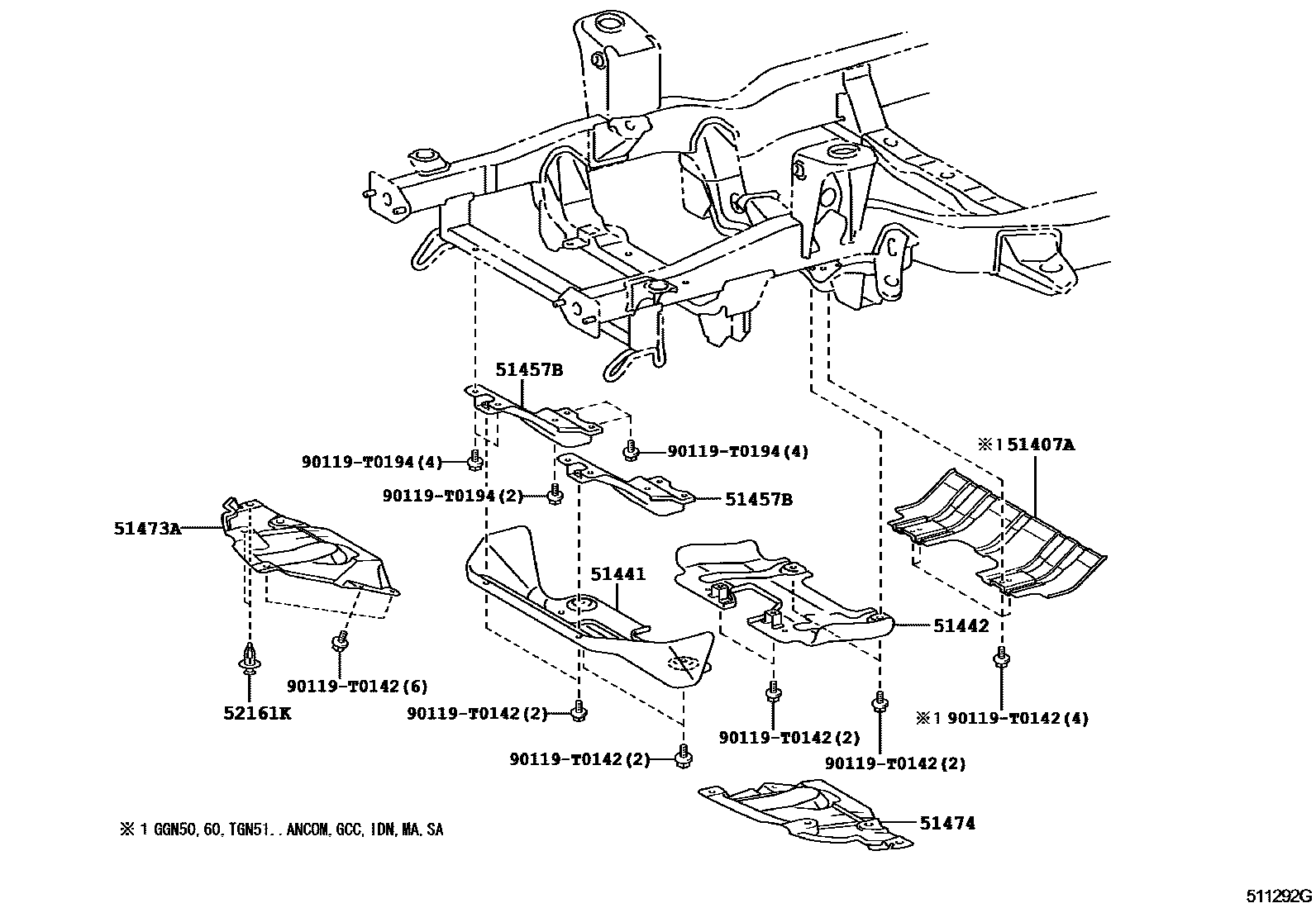

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0006 1 0007 1

51407ACOVER SUB-ASSY, ENGINE UNDER, NO.3

main51407-0K020iTGN51..MA200504-200903

51441COVER, ENGINE UNDER, NO.1

main51410-0K020iGGN60,KUN50..4FC,5FC;KUN51,6#,LAN50,TGN51,61200501-201012

sub51410-0K021

main51410-0K021iKUN51;GGN60,KUN50,6#,LAN50,TGN51,61..IDSUV,SUVW201101-201107

main51410-0K030iGGN50..SA200507-201012

sub51410-0K031

main51410-0K031iGGN50201101

51442COVER, ENGINE UNDER, NO.2

main51420-0K010iTGN51..TH200501-201107

main51420-0K040iGGN50..GCC;GGN50,60..5FC..SA;KUN51,61,LAN50,TGN51,61..GCC,SA200507-201108

51457BBRACE, FRONT SIDE MEMBER TO FRONT SUSPENSION CROSSMEMBER

main51405-0K020iGGN60..GEN200501-201107

51473ACOVER SUB-ASSY, ENGINE SIDE, RH

main51473-0K010iGGN60..GEN201008-201107

main51473-71020iGGN50,KUN51,60,TGN51,61..GCC,IDN,PHL,TH200501-200612

main51473-71031iGGN60..ANCOM200608-201008

51474COVER SUB-ASSY, ENGINE SIDE, LH

main51474-0K010iGGN60..GEN201008-201107

main51474-71020iGGN50,KUN51,60,TGN51,61..GCC,IDN,PHL,TH200501-200612

main51474-71031iKUN51..LHD..SA200608-201008

52161KPIECE, FRONT BUMPER

main52161-0K050iKUN51,61,TGN61..LA200501-201107

90119T0142

main90119-T0142

90119T0194

main90119-T0194

9 parts on this diagram · 3 diagrams in section
