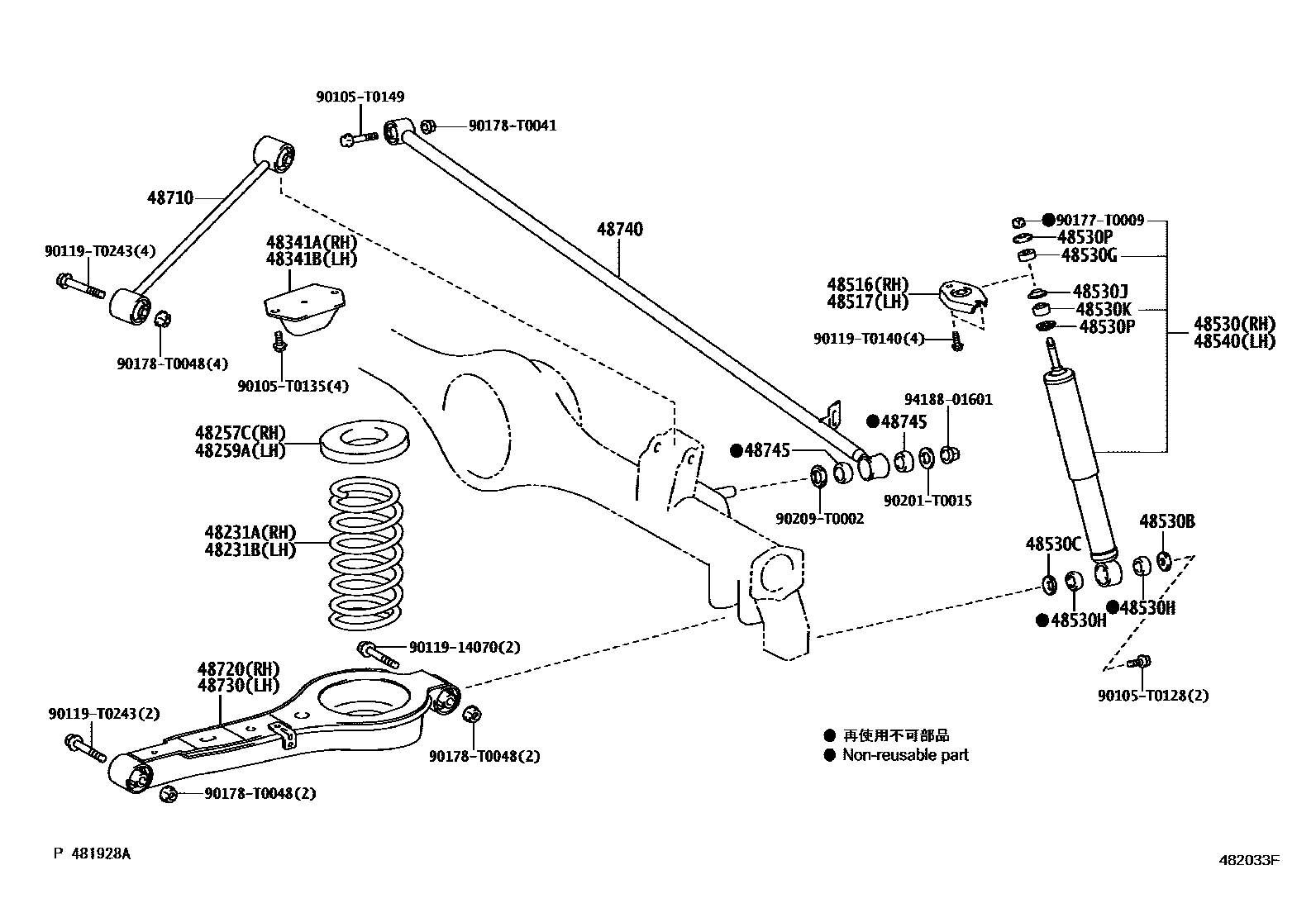

REAR SPRING & SHOCK ABSORBER

0001 1 0003 1

48231ASPRING, COIL, REAR RH

main48231-0K140iKUN51,61,TGN61..LA200509-200810

main48231-0K150iGGN50,KUN51,60,TGN51,61..GCC,GEN,IDN,PHL,TH200501-200808

main48231-0K170iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-201108

main48231-0K220iKUN50,TGN51..MA200508-201109

main48231-0K230iGGN50,60..ANCOM200602-200903

main48231-0K260iGGN50,KUN51,61,TGN61..LA200810-201204

main48231-0K270iGGN50,60..ANCOM200812-201204

48231BSPRING, COIL, REAR LH

main48231-0K140iKUN51,61,TGN61..LA200509-200810

main48231-0K150iGGN50,60,KUN51,6#,TGN51,61..GCC,GEN,IDN,IND,PHL,TH,VN200501-200808

main48231-0K170iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-201108

main48231-0K220iKUN50,TGN51..MA200508-201109

main48231-0K230iGGN50,60..ANCOM200602-200903

main48231-0K260iGGN50,KUN51,61,TGN61..LA200810-201204

main48231-0K270iGGN50,60..ANCOM200812-201204

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-0K010iGGN50..LHD;GGN50..5FC..SA;GGN60,KUN50..4FC,5FC;KUN51,6#,LAN50,TGN51,61200501-200903

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-0K050iTGN51..TH200501-200810

main48341-0K070iGGN50,60,KUN51,61,TGN61..ANCOM,LA200509-200903

sub48341-0K050

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-0K050iKUN50,TGN51..MA200501-200810

main48341-0K070iGGN60..ANCOM200509-200903

sub48341-0K050

48516BRACKET, REAR SHOCK ABSORBER, UPPER RH

main48516-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

48517BRACKET, REAR SHOCK ABSORBER, UPPER LH

main48516-0K010iGGN50..LHD;GGN50..5FC..SA;GGN60,KUN50..4FC,5FC;KUN51,6#,LAN50,TGN51,61200501-200903

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-09450iKUN50,TGN51..MA200508-201109

MARK 48531-0K280

main48531-09610iGGN50,60..ANCOM200602-201204

main48531-09620iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-200910

sub48531-09890

main48531-09710iKUN51,61,TGN61..LA200509-201110

MARK 48531-0K250

sub48531-09711

main48531-09730iKUN51..IND200501-201202

MARK 48531-0K230

main48531-09800iKUN51..IND200808-201107

MARK 48531-0K390

main48531-09890iGGN50,60,KUN51,61,LAN50,TGN51..SA200910-201004

MARK 48531-0K400

sub48531-0K400

main48531-0K400iGGN50,60,KUN51,61,LAN50,TGN51..SA201004-201007

MARK 48531-0K400

sub48531-0K420

main48531-0K420iGGN50,60,KUN51,61,LAN50,TGN51..SA201008-201108

MARK 48531-0K420

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-T3002iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-T3001iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

48530GCUSHION, REAR SHOCK ABSORBER, NO.1

main90948-T1003iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

48530HBUSH, REAR SHOCK ABSORBER

main90385-T0004iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

48530JRETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER)

main90948-T2005iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

48530KCUSHION, REAR SHOCK ABSORBER, NO.2

main90948-T1004iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

48530PRETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER)

main90948-T2008iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-09450iKUN50,TGN51..MA200508-201109

MARK 48531-0K280

main48531-09610iGGN50,60..ANCOM200602-201204

main48531-09620iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-200910

sub48531-09890

main48531-09710iKUN51,61,TGN61..LA200509-201110

MARK 48531-0K250

sub48531-09711

main48531-09730iKUN51..IND200501-201202

MARK 48531-0K230

main48531-09800iTGN51,61..IDN;KUN60..5F..IDN200808-201107

MARK 48531-0K390

main48531-09890iGGN50,60,KUN51,61,LAN50,TGN51..SA200910-201004

MARK 48531-0K400

sub48531-0K400

main48531-0K400iGGN50,60,KUN51,61,LAN50,TGN51..SA201004-201007

MARK 48531-0K400

sub48531-0K420

main48531-0K420iGGN50,60,KUN51,61,LAN50,TGN51..SA201008-201108

MARK 48531-0K420

48710ARM ASSY, UPPER CONTROL

main48710-0K030iGGN50..GCC,GEN;GGN60..5FC..(GEN,SA);GGN50,KUN50..RHD..(4FC,5FC);KUN51,6#,LAN50,TGN51,61..GCC,GEN,IDN,IND,MA,PHL,SA,TH,VN200501-200810

main48710-0K040iGGN50,60,KUN51,61,TGN61..ANCOM,LA200509-200903

48720ARM ASSY, LOWER CONTROL, RH

main48720-0K010iGGN50,TGN51,61..IDSUV200610-200808

main48720-0K030iGGN60,KUN50,61,LAN50..5F..(MA,SA);GGN50,KUN51,60,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,MA,PHL,SA,TH)200501-200810

main48720-0K040iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-200903

48730ARM ASSY, LOWER CONTROL, LH

main48720-0K010iGGN50,KUN51,60,TGN51,61..IDSUV200610-200808

main48720-0K030iGGN60,KUN50,61,LAN50..5F..(MA,SA);GGN50,KUN51,60,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,MA,PHL,SA,TH)200501-200810

main48720-0K040iGGN50,60,KUN51,61,TGN61..ANCOM,LA200509-200903

48740ROD ASSY, REAR LATERAL CONTROL

main48740-0K030iGGN50..GCC,GEN;GGN60..5FC..(GEN,SA);GGN50,KUN50..RHD..(4FC,5FC);KUN51,6#,LAN50,TGN51,61..GCC,GEN,IDN,IND,MA,PHL,SA,TH,VN200501-200810

main48740-0K040iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-200903

48745BUSH, LATERAL CONTROL ROD

main90385-T0005iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

90105T0128

main90105-T0128

90105T0135

main90105-T0135

90105T0149

main90105-T0149

9011914070

main90119-14070

90119T0140

main90119-T0140

90119T0243

main90119-T0243

90177T0009

main90177-T0009

90178T0041

main90178-T0041

90178T0048

main90178-T0048

90201T0015

main90201-T0015

90209T0002

main90209-T0002

9418801601

main94188-01601

34 parts on this diagram · 2 diagrams in section
