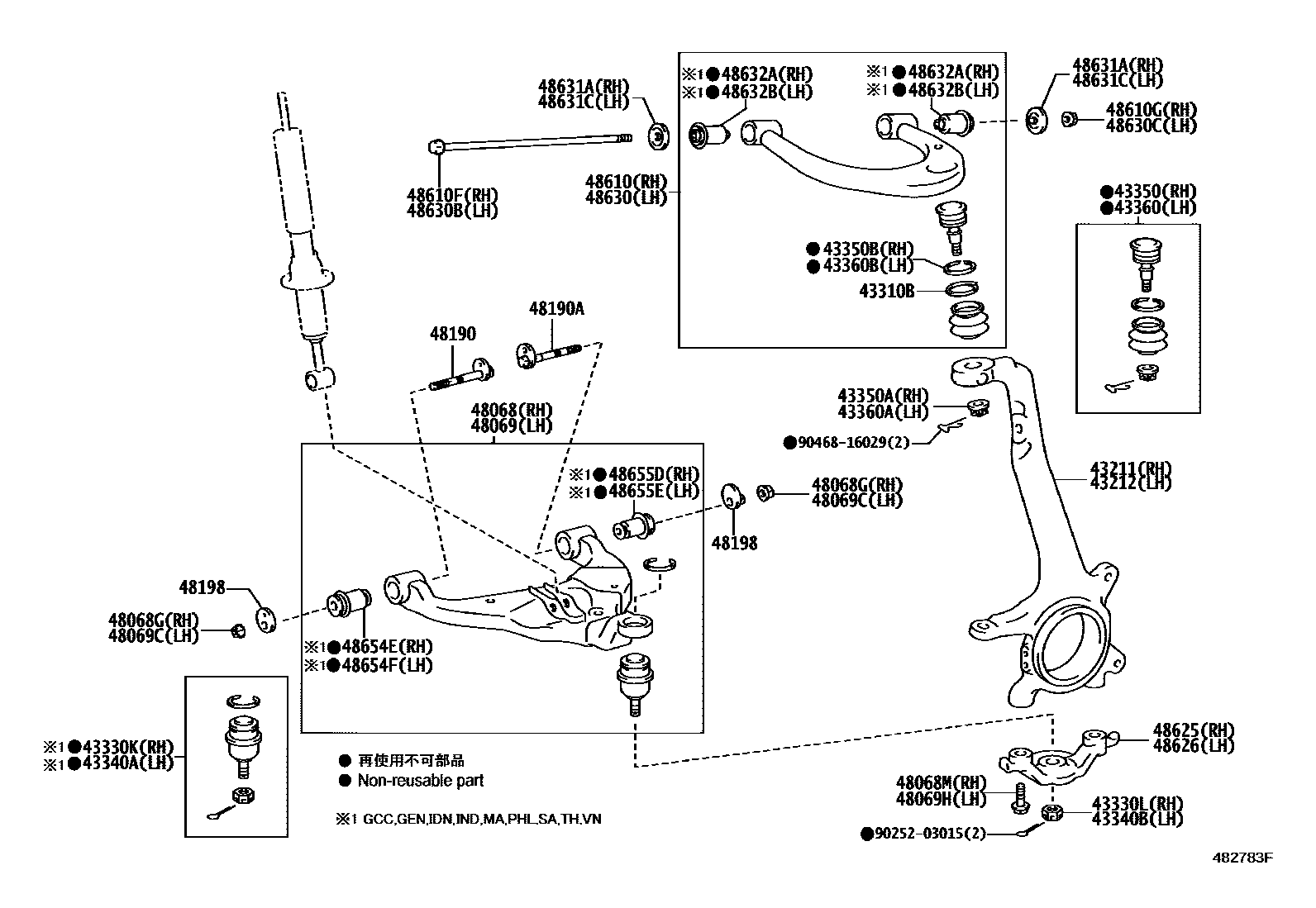

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-0K030iLAN50,TGN51,61..GCC,SA200708-201204

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main43211-0K030iTGN51,61..5F..GCC200908-201008

ECUADOR SPEC&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main43211-0K030iTGN61..IDSUV..IDN;GGN60,TGN51..ANCOM,IDN,MA,TH;GGN50,KUN50,61..(5F,5FC)..(ANCOM,GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GEN,IDN,LA,PHL,SA,200501-201107

main43211-0K040iGGN50,KUN51..LHD..(GCC,SA)200608-201108

ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT

main43211-0K040iTGN61..4FC..LA200507-201204

43212KNUCKLE, STEERING, LH

main43212-0K030iGGN50..LHD;KUN51,6#..SR;GGN60..SUVW..5FC;GGN50,KUN50,TGN51,61..(4FC,5FC)..(IDN,MA,PHL,SA,TH,VN)200708-201204

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main43212-0K030iTGN61..IDSUV..IDN;GGN60,TGN51..ANCOM,IDN,MA,TH;GGN50,KUN50,61..(5F,5FC)..(ANCOM,GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GEN,IDN,LA,PHL,SA,200501-201107

main43212-0K030iTGN51,61..5F..GCC200908-201008

ECUADOR SPEC&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main43212-0K040iGGN50..GCC;KUN51..RHD..5F..SA200608-201108

ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT

main43212-0K040iLAN50;KUN61,TGN51,61..LHD..(GCC,LA,SA)200507-201204

43310BRING, SET (FOR DUST COVER)

main90580-10001iGGN50..LHD;GGN50..5FC..SA;GGN60,KUN50..4FC,5FC;KUN51,6#,LAN50,TGN51,61200501-200903

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-09510iTGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..(5F,5FC)..(GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,PHL,SA,TH)200501-200810

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-T0003iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-09510iTGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..(5F,5FC)..(GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,PHL,SA,TH)200501-200810

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-T0003iGGN50..LHD;GGN50..5FC..SA;GGN60,KUN50..4FC,5FC;KUN51,6#,LAN50,TGN51,61200501-200903

43350JOINT ASSY, FRONT UPPER BALL, RH

main43310-09015iTGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..(5F,5FC)..(GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,PHL,SA,TH)200501-200810

sub43310-09017

main43310-09030iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-200903

43350ANUT (FOR FRONT UPPER BALL JOINT RH)

main90171-T0001iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

43350BRING, SNAP (FOR FRONT UPPER BALL JOINT RH)

main90520-T0029iGGN50..LHD;GGN50..5FC..SA;GGN60,KUN50..4FC,5FC;KUN51,6#,LAN50,TGN51,61200808

43360JOINT ASSY, FRONT UPPER BALL, LH

main43310-09015iTGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..(5F,5FC)..(GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,PHL,SA,TH)200501-200810

sub43310-09017

main43310-09030iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-200903

43360ANUT (FOR FRONT UPPER BALL JOINT LH)

main90171-T0001iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

43360BRING, SNAP (FOR FRONT UPPER BALL JOINT LH)

main90520-T0029iGGN50..LHD;GGN50..5FC..SA;GGN60,KUN50..4FC,5FC;KUN51,6#,LAN50,TGN51,61200808

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-0K040iTGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..(5F,5FC)..(GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,PHL,SA,TH)200501-200810

main48068-0K050iGGN50,60,KUN51,61,TGN61..ANCOM,LA200509-200903

48068GNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90178-T0081iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90105-16053iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-0K040iTGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..(5F,5FC)..(GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,PHL,SA,TH)200501-200810

main48069-0K050iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-200903

48069CNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90178-T0081iGGN50..LHD;GGN50..5FC..SA;GGN60,KUN50..4FC,5FC;KUN51,6#,LAN50,TGN51,61200501-200903

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90105-16053iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201204

48190CAM ASSY, CAMBER ADJUST

main48190-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

48190ACAM ASSY, CAMBER ADJUST, NO.2

main48190-0K030iGGN50,60,KUN51,61,LAN50,TGN51,61..LA,SA200501-200903

48198CAM, CAMBER ADJUST, NO.2

main48198-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

48610ARM ASSY, FRONT SUSPENSION UPPER, RH

main48610-0K040iTGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..(5F,5FC)..(GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,PHL,SA,TH)200501-200810

main48610-0K050iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-200903

48610FBOLT(FOR FRONT SUSPENSION UPPER ARM RH)

main90105-T0114iGGN50..LHD;GGN50..5FC..SA;GGN60,KUN50..4FC,5FC;KUN51,6#,LAN50,TGN51,61200501-200903

48610GNUT(FOR FRONT SUSPENSION UPPER ARM RH)

main90178-T0027iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

48625ATTACHMENT, FRONT LOWER BALL JOINT, RH

main48625-0K020iTGN61..5F..LA;TGN61..IDSUV..(GCC,IDN);GGN60,TGN51..ANCOM,GCC,IDN,MA,TH;GGN50,KUN50,61..(5F,5FC)..(ANCOM,GCC,GEN,LA,MA);KUN51,60,TGN61..(SUVW,THSUV)..SR..(GCC,GEN,ID200501-200903

main48625-0K040iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-201108

48626ATTACHMENT, FRONT LOWER BALL JOINT, LH

main48626-0K020iKUN50..4FC;GGN50,60,KUN51,6#,TGN51,61..ANCOM,GCC,GEN,IDN,IND,LA,MA,PHL,TH,VN200501-200903

main48626-0K040iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-201108

48630ARM ASSY, FRONT SUSPENSION, UPPER LH

main48630-0K040iGGN50..GCC,GEN;GGN60..5FC..(GEN,SA);GGN50,KUN50..RHD..(4FC,5FC);KUN51,6#,LAN50,TGN51,61..GCC,GEN,IDN,IND,MA,PHL,SA,TH,VN200501-200810

main48630-0K050iGGN50,60,KUN51,61,TGN61..ANCOM,LA200509-200903

48630BBOLT(FOR FRONT SUSPENSION UPPER ARM LH)

main90105-T0114iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

48630CNUT(FOR FRONT SUSPENSION UPPER ARM LH)

main90178-T0027iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

48631ARETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM RH)

main90948-T2007iTGN51..TH200501-200903

48631CRETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM LH)

main90948-T2007iTGN51..TH200501-200903

48632ABUSH, FRONT SUSPENSION UPPER ARM, RH

main48632-0K040iTGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..(5F,5FC)..(GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,PHL,SA,TH)200501-201202

main48632-0K050iGGN50,60,KUN51,61,TGN61..ANCOM,LA200509-201204

sub48632-0K110

48632BBUSH, FRONT SUSPENSION UPPER ARM, LH

main48632-0K040iTGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..(5F,5FC)..(GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,PHL,SA,TH)200501-201202

main48632-0K050iGGN50,60,KUN51,61,TGN61..ANCOM,LA200509-201204

sub48632-0K110

48654EBUSH, FRONT LOWER ARM, NO.1 RH

main48654-0K040iTGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..(5F,5FC)..(GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,PHL,SA,TH)200501-201202

main48654-0K050iGGN50,60,KUN51,61,TGN61..ANCOM,LA200509-201204

sub48654-0K040

48654FBUSH, FRONT LOWER ARM, NO.1 LH

main48654-0K040iGGN50..GCC,GEN;GGN60..5FC..(GEN,SA);GGN50,KUN50..RHD..(4FC,5FC);KUN51,6#,LAN50,TGN51,61..GCC,GEN,IDN,IND,MA,PHL,SA,TH,VN200501-201202

main48654-0K050iGGN50,60,KUN51,61,TGN61..ANCOM,LA200509-201204

sub48654-0K040

48655DBUSH, FRONT LOWER ARM, NO.2 RH

main48655-0K040iGGN50..GCC,GEN;GGN60..5FC..(GEN,SA);GGN50,KUN50..RHD..(4FC,5FC);KUN51,6#,LAN50,TGN51,61..GCC,GEN,IDN,IND,MA,PHL,SA,TH,VN200501-201202

main48655-0K050iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-201204

sub48655-0K040

48655EBUSH, FRONT LOWER ARM, NO.2 LH

main48655-0K040iTGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..(5F,5FC)..(GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,PHL,SA,TH)200501-201202

main48655-0K050iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-201204

sub48655-0K040

9025203015

main90252-03015

9046816029

main90468-16029

40 parts on this diagram · 1 diagram in section
