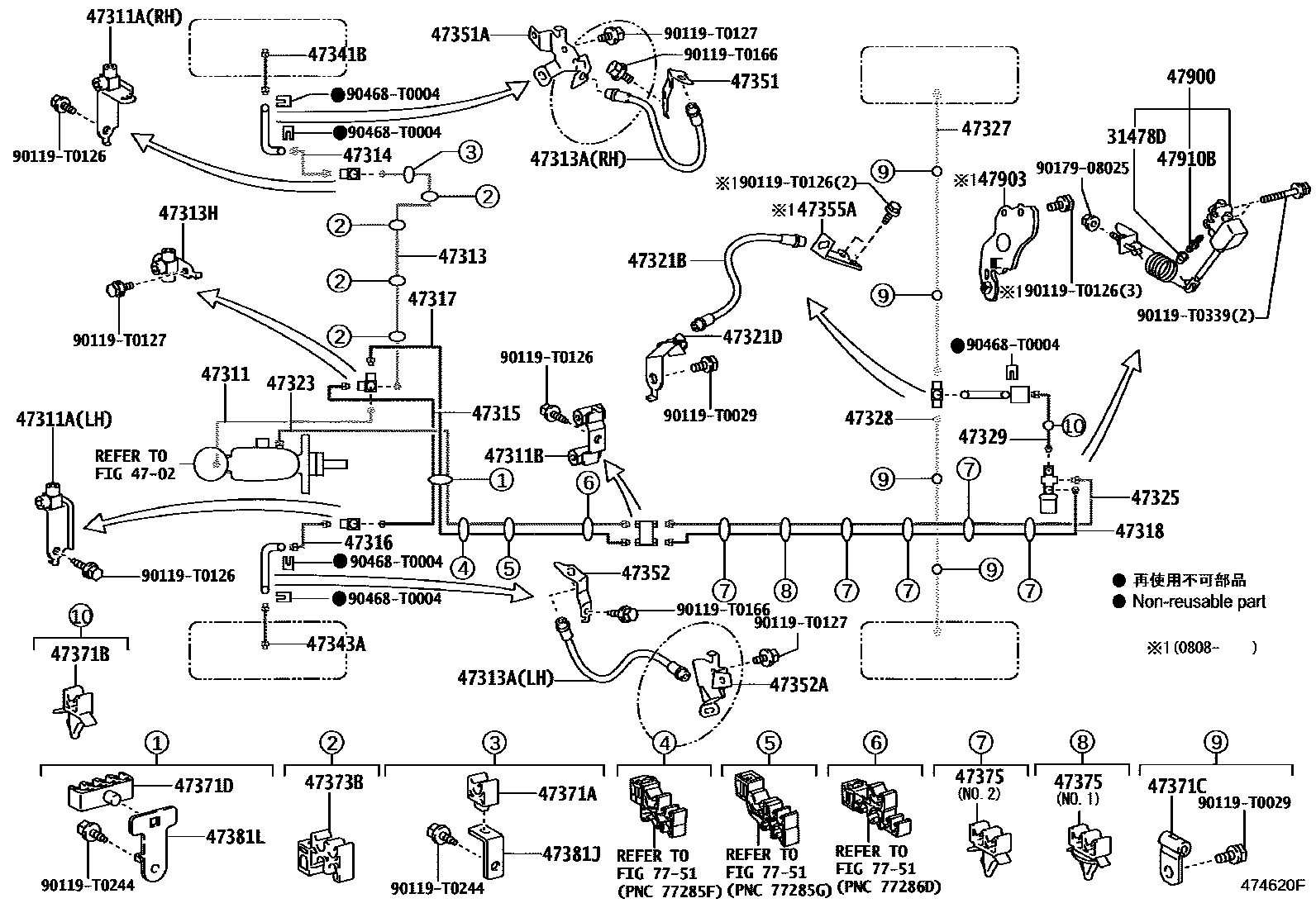

BRAKE TUBE & CLAMP

0001 1 0003 1 0005 1 0006 1 0007 1W(ABS) 0010 1W(ABS) 0012 1W(ABS) 0013 1W(ABS) 0015 1W(VSC) 0018 1W(ABS) 0021 1W(ABS) 0022 1W(VSC)

31478DCAP, BLEEDER PLUG(FOR LSPV)

main31478-0D040iTGN51;KUN51,61,LAN50..5F;KUN51..4FC..(GEN,LA,PHL);GGN50,60,KUN50,60,TGN61..ANCOM,GCC,GEN,IDN,LA,MA,PHL,TH,VN201101-201204

main31478-30010iTGN51;KUN51,61,LAN50..5F;KUN5#..4FC..(GEN,LA,MA,PHL);GGN50,60,KUN60,TGN61..ANCOM,GCC,GEN,IDN,LA,PHL,TH,VN200808-201101

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-0K010iKUN60..RHD;KUN51..5F..TH;KUN51..SUVW..GEN;KUN50,TGN51,61..RHD..4FC200808-201201

main47311-0K020iGGN50,60..SA200810-201010

main47311-0K030iGGN50,60,KUN51,60,TGN51,61..LHD..(GCC,GEN,PHL,VN)200808-201202

main47311-0K040iKUN51,61,LAN50,TGN51,61..LHD..(LA,SA)200509-200610

main47311-0K041iKUN51,61,LAN50,TGN51,61..LHD..(LA,SA)200610-200810

main47311-0K050iKUN50,TGN51..MA200508-200706

main47311-0K070iGGN50,60..ANCOM200812-201204

main47311-0K150iGGN50,60..SA201010-201108

main47311-0K170iKUN51..IND200908-201201

*282 TYPE B:REF ILL.

47311AWAY(FOR FRONT BRAKE TUBE)

main90412-10251iTGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR200501-200812

RH

main90412-10252iGGN60..GEN200808-201107

LH

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10253iGGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)200808

47313TUBE, FRONT BRAKE, NO.3

main47313-0K010supersedes 47313-0K030iKUN6#..RHD..SUVW..5F;GGN50,60,KUN51,TGN51,61..RHD..(IDN,SA,TH)200501-200810

main47313-0K040supersedes 47313-0K050iLAN50,TGN51,61..LHD..(GCC,SA)200808

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main47313-0K060iKUN61,LAN50,TGN51,61..LHD..(LA,SA)200509-200810

main47313-0K070iKUN50,TGN51..MA200508-200706

main47313-0K100iGGN50,60..ANCOM200812

main47313-0K130iKUN51,61..4FC..(SA,TH)200808-201108

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90080-94029×2iGGN60..GEN200808-201107

47313HWAY, NO.3(FOR FRONT BRAKE TUBE)

main90413-10309iKUN51,TGN51,61..RHD;GGN50,60,KUN50,6#..RHD..SUVW..(5F,5FC)200501-200810

main90413-10312iGGN50..LHD;KUN51..LHD..(SUVW,THSUV);GGN60,KUN60,TGN61..SUVW..(ANCOM,PHL)200504-200812

main90414-10055iTGN61..4FC..LA200808-200910

47314TUBE, FRONT BRAKE, NO.4

main47314-0K030iGGN50..GCC,GEN,LA;KUN51,6#,LAN50,TGN51,61;GGN50,60,KUN50..RHD..(4FC,5FC)200808

main47314-0K050iGGN50,60..ANCOM200812

47315TUBE, FRONT BRAKE, NO.5

main47315-0K010supersedes 47315-0K030iGGN50,60..5FC..SA200808-201010

main47315-0K040supersedes 47315-0K050iLAN50,TGN51,61..LHD..(GCC,SA)200808

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main47315-0K060iKUN61,LAN50,TGN51,61..LHD..5F..(LA,SA)200810

main47315-0K070iKUN50,TGN51..MA200508-200706

main47315-0K100iGGN50,60..ANCOM200602-200812

main47315-0K130iKUN51,61..RHD..4FC200808-201008

main47315-0K150iKUN51,61..RHD..5F..SA201008-201108

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH(ABS & EBD & VSC & BA)&VSC-WITH

47316TUBE, FRONT BRAKE, NO.6

main47316-0K030iGGN60..GEN200808-201107

main47316-0K050iGGN50,60..ANCOM200812

47317TUBE, FRONT BRAKE, NO.7

main47317-0K010iKUN50,TGN51..MA200706-200809

main47317-0K020iGGN50,KUN51,60,TGN51,61..LHD..(GCC,GEN,PHL,VN)200808

main47317-0K030iKUN51,61,LAN50,TGN51,61..LHD..(LA,SA)200509-200810

main47317-0K040iKUN50,TGN51..MA200508-200706

main47317-0K050iKUN51,61,LAN50..RHD..5F..SA200810-201108

main47317-0K060iGGN50,60..ANCOM200812

47318TUBE, FRONT BRAKE, NO.8

main47318-0K030iGGN50,60..5FC..SA200808-201010

main47318-0K050iGGN50,60..ANCOM200812

main47318-0K080iKUN51,61,TGN61..LA200509-200810

47321TUBE, REAR BRAKE, NO.1

main47321-0K010iKUN60..RHD;KUN51..5F..TH;KUN51..SUVW..GEN;KUN50,TGN51,61..RHD..4FC200808-201201

main47321-0K020iGGN50,60..SA200810-201010

main47321-0K030iTGN61..PHL;GGN50,KUN51,60..GCC,GEN,PHL200504-200808

main47321-0K040iKUN51..LHD..(LA,SA)200509-200810

main47321-0K050iKUN50,TGN51..MA200508-200706

main47321-0K060iGGN50,60..ANCOM200602-200812

main47321-0K110supersedes 47321-0K020iKUN51,61..4FC..(SA,TH)200808-201108

47321BHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-T2012iGGN50,60..5FC..SA200808-201010

main90947-T2059iGGN50,60..SA201010-201108

NO.1

main90947-T2060iKUN51,61..4FC..(SA,TH)200808-201108

NO.2

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90413-10310iGGN50,60..5FC..SA200808-201010

47323TUBE, REAR BRAKE, NO.3

main47323-0K010supersedes 47323-0K030iKUN60..RHD;KUN51..SUVW..GEN;KUN51,61..RHD..5F;KUN50,TGN51,61..RHD..4FC200808

main47323-0K040supersedes 47323-0K050iTGN61..4FC..LA200910

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main47323-0K060iTGN61..4FC..LA200810-200910

main47323-0K070iKUN50,TGN51..MA200508-200706

main47323-0K100iGGN50,60..ANCOM200812

main47323-0K130iKUN51,61..4FC..(SA,TH)200808-201108

47325TUBE, REAR BRAKE, NO.5

main47325-0K030iGGN60..GEN200808-201107

main47325-0K060iGGN50,60..ANCOM200508-200812

main47325-0K100iKUN51,61,TGN61..LA200509-200810

main47325-0K130iGGN50,60..SA201010-201108

47327TUBE, REAR BRAKE, NO.7

main47327-0K060iGGN50,60..5FC..SA200808-201010

main47327-0K070iGGN50,60..ANCOM200508-200812

main47327-0K110iGGN50,60..SA201010-201108

main47327-0K130iKUN50,TGN51..MA200809-201109

47328TUBE, REAR BRAKE, NO.8

main47328-0K060iTGN51..GCC,IDN,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN61,LAN50..GCC,GEN,LA,SA;GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)200501-200810

main47328-0K070iGGN50,60..ANCOM200812

main47328-0K110iKUN51,61..4FC..(SA,TH)200808-201108

main47328-0K150iKUN50,TGN51..MA200706-200809

47329TUBE, REAR BRAKE, NO.9

main47329-0K030iGGN50,60..5FC..SA200808-201010

main47329-0K040iGGN50,60..ANCOM200812

main47329-0K060iKUN50..5F;TGN51..MA200706-200810

main47329-0K100iKUN51,61..4FC..(SA,TH)200808-201108

47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1

main47341-0K010iKUN50,TGN51..MA200501-200809

47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1

main47343-0K010iTGN51..TH200501-200708

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-0K010iTGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR200501-200812

47351ABRACKET, FLEXIBLE HOSE, FRONT RH NO.1

main47353-0K020iTGN51..GCC,IDN;GGN50,KUN51,60,TGN61..GCC,GEN,IDN,PHL,TH200501-200808

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-0K030iGGN60..GEN200808-201107

47352ABRACKET, FLEXIBLE HOSE, FRONT LH NO.1

main47354-0K020iTGN51..TH200501-200708

47355ABRACKET, FLEXIBLE HOSE, NO.5

main47355-0K020iGGN50,60..5FC..SA200808-201010

main47355-0K030iGGN50,60..SA201010

47371ACLAMP, BRAKE TUBE, NO.1

main90949-T1011iGGN60..GEN200808-201107

47371BCLAMP, BRAKE TUBE, NO.6

main90949-T1005iKUN51,TGN51..LA,MA;GGN50,60,KUN50,61,TGN61..(5F,5FC)..(ANCOM,LA,MA)200508-200812

main90949-T1007iTGN51..GCC,IDN,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN61,LAN50..GCC,GEN,SA;GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,PHL,SA,TH)200501-200810

47371CCLAMP, BRAKE TUBE, NO.7

main90461-T0001×4iTGN51..GCC,IDN,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN61,LAN50..GCC,GEN,LA,SA;GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)200501-200810

main90461-T0002×4iTGN51..MA;GGN50,60,KUN50..(5F,5FC)..(ANCOM,MA)200508-200812

47371DCLAMP, BRAKE TUBE, NO.8

main90949-T1010iGGN50,60,KUN51,6#,LAN50,TGN51,61..LHD200808

47373BCLAMP, BRAKE TUBE, NO.3

main90949-T1008×3iKUN51,6#,LAN50..RHD;GGN50,60,KUN50,TGN51,61..RHD..(4FC,5FC)200808

main90949-T1012×4iTGN61..5F..LA;TGN61..IDSUV..GCC;KUN51..LHD..(SUVW,THSUV);GGN50,KUN61,LAN50,TGN51..LHD;GGN60,KUN60,TGN61..LHD..SUVW..SR200504-200812

47375CLAMP, BRAKE TUBE, NO.5

main90469-T0006iGGN50,60,KUN5#,6#,TGN51,61..ANCOM,IND,LA,MA,VN200809

NO.1

main90469-T0007iGGN50..GCC,GEN;GGN50,60..5FC..SA;KUN51,6#,LAN50,TGN51,61..GCC,GEN,IDN,PHL,SA,TH200808-201108

NO.1

main90949-T1004×5iGGN50,60,KUN5#,6#,TGN51,61..ANCOM,IND,LA,MA,VN200809

NO.2

main90949-T1006×6iGGN50..GCC,GEN;GGN50,60..5FC..SA;KUN51..4FC..(GEN,PHL);KUN51,61..5F..(GEN,SA,TH);KUN60,LAN50,TGN51,61..GCC,IDN,PHL,SA,TH200808-201108

NO.2

47381JBRACKET, BRAKE TUBE CLAMP, NO.2

main90949-T2001×2iKUN51,TGN51,61..RHD;GGN50,60,KUN50,6#,LAN50..RHD..SUVW..(5F,5FC)200501-200810

47381LBRACKET, BRAKE TUBE CLAMP, NO.3

main90949-T2002iTGN61..5F..LA;TGN61..IDSUV..GCC;KUN51..LHD..(SUVW,THSUV);GGN50,KUN61,LAN50,TGN51..LHD;GGN60,KUN60,TGN61..LHD..SUVW..SR200504-200812

47900VALVE ASSY, LOAD SENSING W/SPRING

main47900-0K050iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

47903BRACKET SUB-ASSY, LOADSENSING VALVE

main47903-0K020iGGN50,60..5FC..SA200808-201010

47910BPLUG, BLEEDER

main47547-27030iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

7751

90119T0029

main90119-T0029

90119T0126

main90119-T0126

90119T0127

main90119-T0127

90119T0166

main90119-T0166

90119T0244

main90119-T0244

90119T0339

main90119-T0339

9017908025

main90179-08025

90468T0004

main90468-T0004
