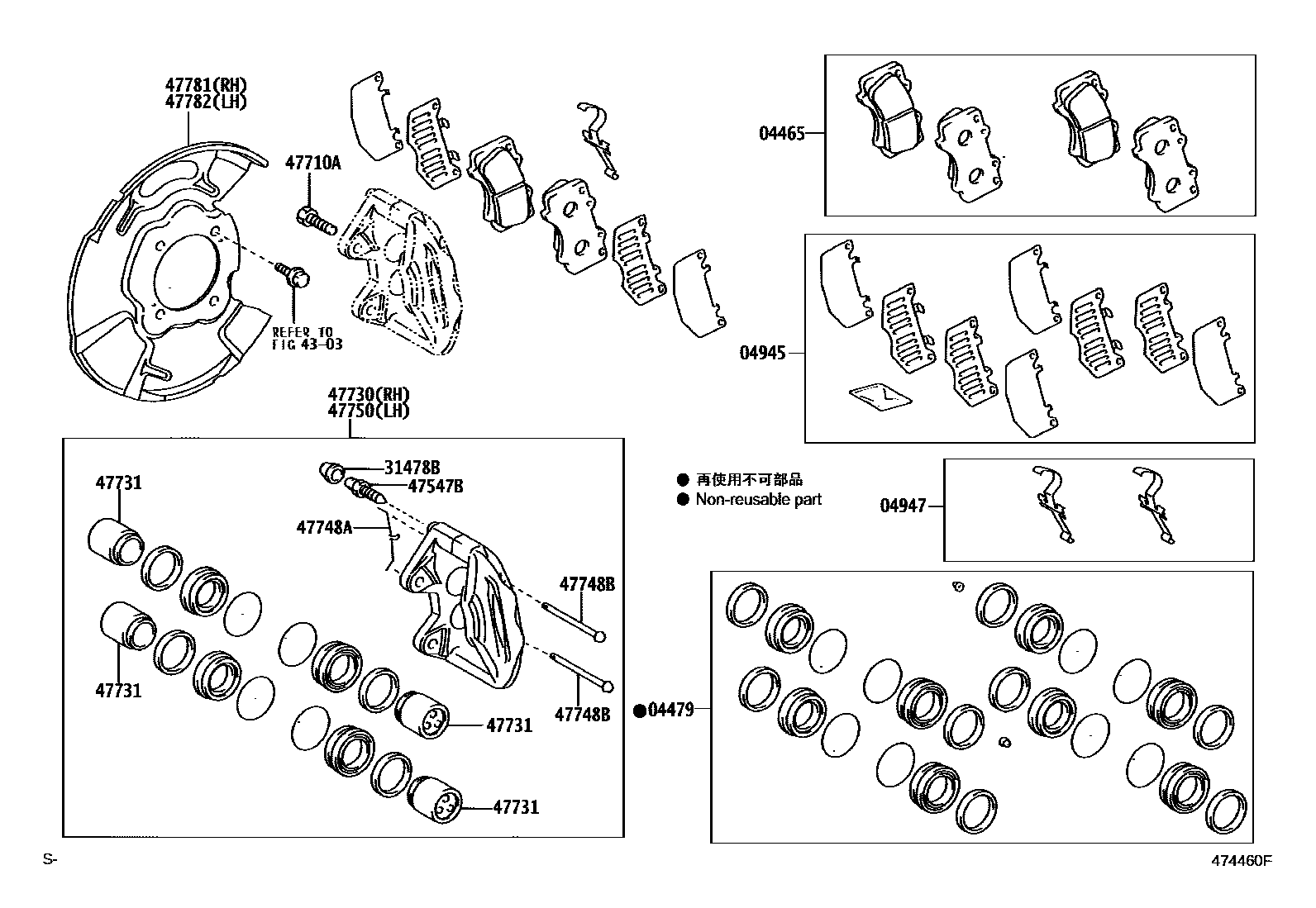

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0003 1 0004 1 0006 1*282 TYPE A 0007 1*282 TYPE B

04465PAD KIT, DISC BRAKE, FRONT

main04465-0K020iKUN51..IND200808-201002

MARK ADVICS PS558H,*282 TYPE A:REF ILL.

main04465-0K020iTGN51..RHD;TGN61..IDSUV..IDN;KUN5#,60,TGN61..SUVW..(IDN,MA,PHL,TH)200501-201109

MARK ADVICS PS558H

main04465-0K090iKUN51..IND200908-201002

MARK SUMITOMO PS558H,*282 TYPE B:REF ILL.

main04465-0K090iGGN60..GEN200507-201204

MARK SUMITOMO PS558H

main04465-0K280iGGN50,60,KUN51,61,TGN61..ANCOM,LA200810-201204

MARK SUMITOMO PS558H

main04465-35290iGGN60..ANCOM;GGN60,KUN61,TGN61..5F..(LA,SA);GGN50,KUN51,LAN50,TGN51..ANCOM,LA,SA200509-201108

MARK SUMITOMO PS558H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-0K130iTGN51..RHD;TGN61..IDSUV..IDN;KUN5#,60,TGN61..SUVW..(IDN,MA,PHL,TH)200501-201109

main04478-0K130iKUN51..IND200808-201002

*282 TYPE A:REF ILL.

main04478-0K140iGGN50,60,KUN51,61,TGN61..ANCOM,LA200810-201204

main04478-60050iKUN51..IND200908-201002

*282 TYPE B:REF ILL.

main04478-60050iGGN60,TGN61..ANCOM,GCC;GGN50,TGN51..IDSUV..GCC;GGN60,KUN61,TGN61..5F..(LA,SA);GGN50,KUN51,LAN50,TGN51..ANCOM,GEN,LA,SA200509-201204

main04479-60080iGGN50,TGN51..GCC200507-200510

sub04479-60081

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-0K090iGGN50,KUN51,TGN51,61..GCC,GEN200507-200808

sub04945-0K220

main04945-0K150iTGN51..RHD;TGN61..IDSUV..IDN;KUN5#,60,TGN61..SUVW..(IDN,MA,PHL,TH)200501-201109

main04945-0K150iKUN51..IND200808-201002

*282 TYPE A:REF ILL.

main04945-0K220iGGN60..GEN200808-201204

main04945-0K220iKUN51..IND200908-201002

*282 TYPE B:REF ILL.

main04945-0K260iGGN50,60,KUN51,61,TGN61..ANCOM,LA200810-201204

main04945-35120iGGN60..ANCOM;GGN60,KUN61,TGN61..5F..(LA,SA);GGN50,KUN51,LAN50,TGN51..ANCOM,LA,SA200509-201108

04947FITTING KIT, DISC BRAKE, FRONT

main04947-0K050iGGN50,60,KUN51,61,TGN61..ANCOM,LA200810-201111

main04947-35050iGGN60..ANCOM;GGN60,KUN61,TGN61..5F..(LA,SA);GGN50,KUN51,LAN50,TGN51,61..SR..(ANCOM,GCC,GEN,LA,SA)200507-201204

main04947-35050iKUN51..IND200908-201002

*282 TYPE B:REF ILL.

main04947-60080iKUN51..IND200808-201002

*282 TYPE A:REF ILL.

main04947-60080iKUN51..PHL;KUN51..5F..TH;KUN60..IDN,PHL,TH;KUN50,TGN51,61..4FC..(IDN,MA,PHL,TH)200501-201109

main04947-71010iGGN50,60201111-201204

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-0K030iGGN50,60,KUN51,61,TGN61..ANCOM,LA200810-201204

main31478-30010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201204

main31478-30010iKUN51..IND200808-201002

*282 TYPE A:REF ILL.

main31478-30010iKUN51..IND200908-201002

*282 TYPE B:REF ILL.

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iGGN50,TGN51..GCC200507-200510

main47547-20030iKUN51..PHL;KUN51..5F..TH;KUN60..IDN,PHL,TH;KUN50,TGN51,61..4FC..(IDN,MA,PHL,TH)200501-201109

main47547-20030iKUN51..IND200808-201002

*282 TYPE A:REF ILL.

main47547-27030iKUN51..IND200908-201002

*282 TYPE B:REF ILL.

main47547-27030iGGN50,KUN51,TGN51,61..GCC,GEN200510-201204

main47547-35020iGGN60..ANCOM;GGN60,KUN61,TGN61..5F..(LA,SA);GGN50,KUN51,LAN50,TGN51..ANCOM,LA,SA200509-201108

main90069-39011iGGN50,60,KUN51,61,TGN61..ANCOM,LA200810-201204

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12175iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201204

*12-1.25PX35-27

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-0K060iKUN5#,60,TGN51,61..IDN,MA,PHL,TH200501-200708

sub47730-0K061

main47730-0K061iKUN51..PHL;KUN51..5F..TH;KUN60..IDN,PHL,TH;KUN50,TGN51,61..4FC..(IDN,MA,PHL,TH)200708-201109

main47730-0K061iKUN51..IND200808-201002

*282 TYPE A:REF ILL.

main47730-0K080iGGN50,TGN51..GCC200507-200510

sub47730-0K140

main47730-0K081iGGN50,KUN51,TGN51,61..GCC,GEN200510-200808

sub47730-0K140

main47730-0K130iGGN50,60,KUN51,61,TGN61..ANCOM,LA200810-201204

main47730-0K140iGGN60..GEN200808-201204

main47730-0K140iKUN51..IND200908-201002

*282 TYPE B:REF ILL.

main47730-35411iGGN60..ANCOM;GGN60,KUN61,TGN61..5F..(LA,SA);GGN50,KUN51,LAN50,TGN51..ANCOM,LA,SA200509-200903

main47730-71010iGGN50,60,KUN51,61,LAN50,TGN51..SA200810-201108

47731PISTON, FRONT DISC BRAKE

main47731-0K060iKUN51..PHL;KUN51..5F..TH;KUN60..IDN,PHL,TH;KUN50,TGN51,61..4FC..(IDN,MA,PHL,TH)200501-201109

main47731-0K060iKUN51..IND200808-201002

*282 TYPE A:REF ILL.

main47731-0K130iGGN50,60,KUN51,61,TGN61..ANCOM,LA200810-201204

main47731-35040iKUN51..IND200507-201204

main47731-35040iKUN51..IND200908-201002

*282 TYPE B:REF ILL.

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-35010iGGN50,60,KUN51,61,LAN50,TGN51,61..LA,SA200509-201107

main47748-35010iKUN51..IND200908-201002

*282 TYPE B:REF ILL.

47748ACLIP(FOR FRONT DISC BRAKE ANTI-RATTLE)

main90468-12015iKUN51..IND200808-201002

*282 TYPE A:REF ILL.

main90468-12015iTGN51..IDN;KUN51,60,TGN61..IDN,PHL,TH200501-201109

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main90069-35001iGGN50,60,KUN51,61,TGN61..ANCOM,LA200810

main90240-06014iKUN50,TGN51..MA200501-201109

main90240-06014iKUN51..IND200808-201002

*282 TYPE A:REF ILL.

main90240-06158iKUN51..IND200507-201107

main90240-06158iKUN51..IND200908-201002

*282 TYPE B:REF ILL.

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-0K060iKUN5#,60,TGN51,61..IDN,MA,PHL,TH200501-200708

sub47750-0K061

main47750-0K061iKUN51..IND200808-201002

*282 TYPE A:REF ILL.

main47750-0K061iKUN51..PHL;KUN51..5F..TH;KUN60..IDN,PHL,TH;KUN50,TGN51,61..4FC..(IDN,MA,PHL,TH)200708-201109

main47750-0K080iGGN50,TGN51..GCC200507-200510

sub47750-0K140

main47750-0K081iGGN50,KUN51,TGN51,61..GCC,GEN200510-200808

sub47750-0K140

main47750-0K130iGGN50,60,KUN51,61,TGN61..ANCOM,LA200810-201204

main47750-0K140iKUN51..IND200908-201002

*282 TYPE B:REF ILL.

main47750-0K140iGGN60..GEN200808-201204

main47750-35411iGGN60..ANCOM;GGN60,KUN61,TGN61..5F..(LA,SA);GGN50,KUN51,LAN50,TGN51..ANCOM,LA,SA200509-200903

main47750-71010iGGN50,60,KUN51,61,LAN50,TGN51..SA200810-201108

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-0K030iKUN5#,60,TGN51,61..IDN,MA,PHL,TH200501-200605

sub47781-0K031

main47781-0K031iKUN51..PHL;KUN51..5F..TH;KUN60..IDN,PHL,TH;KUN50,TGN51,61..4FC..(IDN,MA,PHL,TH)200606-201109

main47781-0K031iKUN51..IND200808-201002

*282 TYPE A:REF ILL.

main47781-0K040iGGN50,60,KUN51,61,LAN50,TGN51..SA200507-200710

sub47781-0K050

main47781-0K050iTGN61..5F..LA;GGN60,TGN61..ANCOM,GCC;KUN51..LHD..(GEN,LA,SA);GGN50,KUN61,TGN51..ANCOM,GCC,GEN,LA200607-201204

main47781-0K050iKUN51..IND200908-201002

*282 TYPE B:REF ILL.

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-0K030iKUN5#,60,TGN51,61..IDN,MA,PHL,TH200501-200605

sub47782-0K031

main47782-0K031iKUN51..IND200808-201002

*282 TYPE A:REF ILL.

main47782-0K031iTGN51..RHD;TGN61..IDSUV..IDN;KUN5#,60,TGN61..SUVW..(IDN,MA,PHL,TH)200606-201109

main47782-0K040iGGN50,60,KUN51,61,TGN51,61..ANCOM,GCC,LA200507-200710

sub47782-0K050

main47782-0K050iKUN51..IND200607-201204

main47782-0K050iKUN51..IND200908-201002

*282 TYPE B:REF ILL.

16 parts on this diagram · 5 diagrams in section
