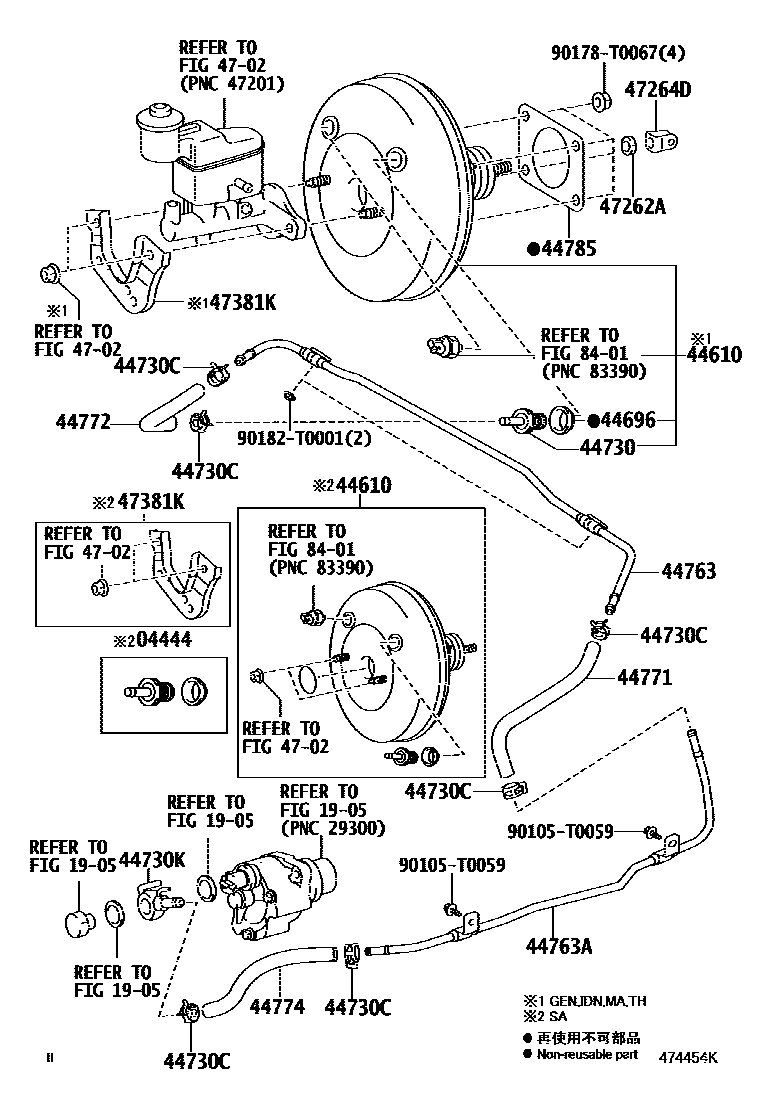

BRAKE BOOSTER & VACUUM TUBE

0001 1 0004 1TYPE A 0005 1TYPE B 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1W(VSC)

04444VALVE KIT, BOOSTER CONTROL

main04444-02010iKUN51..IND200908-201106

*283 TYPE A:REF ILL.

main04444-02010iKUN51..4FC..LA;KUN51,61,LAN50..5F..(LA,SA);GGN50,TGN51,61..LHD..(LA,SA)200509-201010

1905

44610BOOSTER ASSY, BRAKE

main44610-09280iGGN50,60..SA200602-201010

main44610-09290iKUN51,61,LAN50..LHD..(LA,SA)200509

sub44610-09820

main44610-09300iKUN51..IND200908-201106

TYPE A=47200-0K151

main44610-09310iGGN50,TGN51,61..LHD..(LA,SA)200509-200810

main44610-09330iKUN51,61,LAN50..RHD..SA200602-200810

sub44610-09A90

main44610-09330iKUN51,61,LAN50..RHD..5F..SA200810-201108

VSC-WITH

sub44610-09A90

main44610-0K010iTGN51,61..IDN,MA200501-201109

sub44610-0K110

main44610-0K020iTGN61..IDSUV..GCC;GGN60,TGN61..LHD..SUVW..SR;GGN50,TGN51..ANCOM,GCC,GEN200504-201107

sub44610-0K220

main44610-0K030iKUN50,60..RHD..SUVW200501-201109

sub44610-0K120

main44610-0K040iKUN51,60..LHD..(GEN,PHL,VN)200504-200808

sub44610-0K230

main44610-0K110iTGN61..TH200602-201107

main44610-0K120iKUN51,60..5F..TH200602-201107

main44610-0K130iGGN50,60..SA201010-201108

main44610-0K140iKUN51,61..4FC..(SA,TH)200808-201108

main44610-0K180iKUN51..IND200908

TYPE B=131010-18990

main44610-0K180iKUN51..IND201106

44696GROMMET, CHECK VALVE

main90080-48050iTGN61..IDSUV..(GCC,IDN);GGN60,TGN51..ANCOM,GCC,IDN,MA,TH;GGN50,KUN50..(5F,5FC)..(ANCOM,GCC,GEN,MA);KUN51,60,TGN61..(SUVW,THSUV)..(GCC,GEN,IDN,PHL,TH)200501-201204

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-22150iTGN61..IDSUV..(GCC,IDN);GGN60,TGN51..ANCOM,GCC,IDN,MA,TH;GGN50,KUN50..(5F,5FC)..(ANCOM,GCC,GEN,MA);KUN51,60,TGN61..(SUVW,THSUV)..(GCC,GEN,IDN,PHL,TH)200501-201204

main44730-22150iKUN51..IND200908-201201

*283 TYPE B:REF ILL.

44730CCLIP(FOR VACUUM HOSE)

main90466-T0019iKUN51..RHD;LAN50..LHD;KUN50,6#..RHD..SUVW..5F200501-201107

44730KUNION, VACUUM HOSE(FOR VACUUM PUMP)

main90405-09180iLAN50200605-201108

main90405-T0003iKUN50,61..5F;KUN51,60..SUVW,THSUV200501-200810

44763TUBE, BOOSTER VACUUM

main44763-0K010iKUN51,6#..RHD;GGN50,60,KUN50,TGN51,61..RHD..(4FC,5FC)200501-200810

main44763-0K030iLAN50..LHD200605-201108

main44763-0K040iKUN50,TGN51..MA;TGN51,61..IDSUV..IDN200508-200706

sub44763-0K010

44763ATUBE, HOSE TO HOSE, NO.1

main44763-0K020iKUN61..5F;KUN51,60..SUVW,THSUV200501-200810

main44763-0K050iKUN50200508-200706

sub44763-0K020

44771HOSE, VACUUM TUBE CONNECTOR

main44771-0K010iKUN50..4FC;KUN51,6#..RHD200501-200810

sub44771-0K011

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-0K010iKUN60..RHD;KUN51..5F..TH;KUN51..SUVW..GEN;KUN50,TGN51,61..RHD..4FC200501-200809

main44772-0K010iKUN51..IND200908

*283 TYPE B:REF ILL.

main44772-0K020iKUN51..IND200810-201106

*283 TYPE A:REF ILL.

main44772-0K020iGGN50,60,KUN51,61..RHD..SA200602-201010

main44772-0K030iGGN50,60..SA200808-201108

sub44772-0K031

44774HOSE, UNION TO CONNECTOR TUBE

main44774-0K010iTGN51,61..RHD200501-201109

main44774-0K020iKUN51,6#;KUN50..4FC200501-200810

sub44774-0K021

main44774-0K030iGGN50,60..SA200602-201108

44785GASKET, BRAKE BOOSTER

main44785-17010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

4702

47262ANUT, MASTER CYLINDER PUSH ROD CLEVIS LOCK

main47262-0K010iKUN51..IND200908-201106

*283 TYPE A:REF ILL.

main47262-0K010iGGN50,60,KUN51,61,LAN50,TGN51,61..LA,SA200509-201204

main90016-AC101iKUN51..IND200908-201204

(L)

main90179-10065iKUN51,61..4FC..(SA,TH)200808-201108

main94120-41000iGGN60..GEN200501-201204

main94120-41000iKUN51..IND200908-201204

(J)

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-0B010iKUN51..IND200908-201106

*283 TYPE A:REF ILL.

main47264-0K010iTGN61..IDSUV..(GCC,IDN);GGN60,TGN51..ANCOM,GCC,IDN,MA,TH;GGN50,KUN50..(5F,5FC)..(ANCOM,GCC,GEN,MA);KUN51,60,TGN61..(SUVW,THSUV)..(GCC,GEN,IDN,PHL,TH)200501-201204

main47264-0K010iKUN51..IND200908-201204

*283 TYPE B:REF ILL.

main47264-0K020iKUN51..4FC..LA;KUN51,61,LAN50..5F..(LA,SA);GGN50,TGN51,61..LHD..(LA,SA)200509-201204

main47264-0K050iGGN50,60..SA200808-201108

47381KBRACKET, BRAKE BOOSTER TUBE CLAMP

main47381-09020iKUN51..4FC..LA;KUN51,61,LAN50..5F..(LA,SA);GGN50,TGN51,61..LHD..(LA,SA)200509-201204

main47381-09030iKUN51..IND200908-201106

*283 TYPE A:REF ILL.

main47381-0K010iKUN51..5F..(GEN,TH);KUN51..4FC..(GEN,PHL);GGN60,KUN50..(4FC,5FC)..(ANCOM,MA);GGN50,KUN60,TGN51,61..ANCOM,GCC,GEN,IDN,MA,PHL,TH,VN200501-201204

main47381-0K010iKUN51..IND200908-201204

*283 TYPE B:REF ILL.

8401

90105T0059

main90105-T0059

90178T0067

main90178-T0067

90182T0001

main90182-T0001

21 parts on this diagram · 12 diagrams in section
