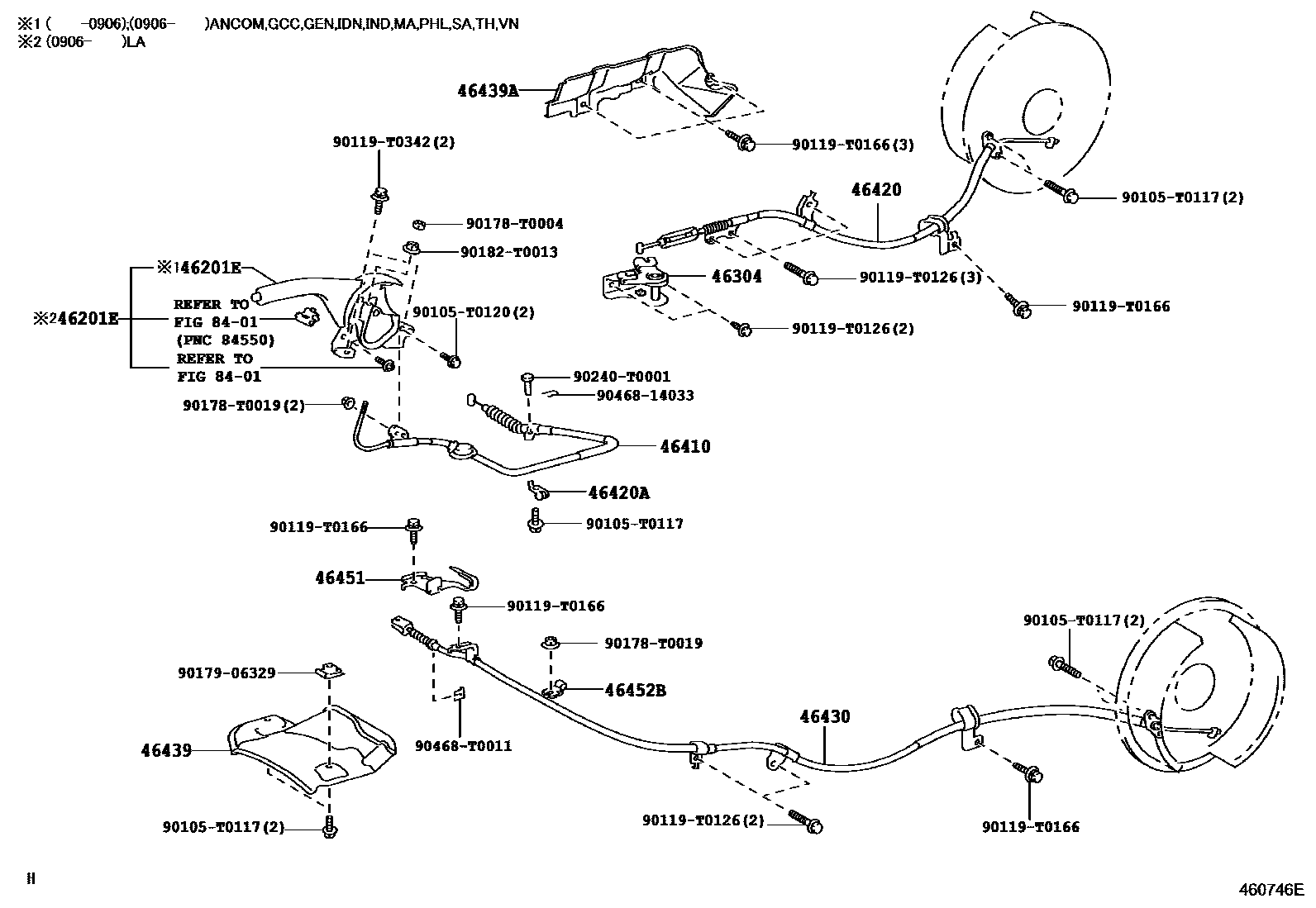

PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-0K010-A0iGGN50,KUN5#,60,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,MA,PHL,TH)200501-200809

IVORY,TRIM0#

sub46201-0K011

main46201-0K010-B0iKUN50,TGN51..MA200809-200908

GRAY,TRIM1#

sub46201-0K011

main46201-0K010-E0iGGN60,KUN50,61..(4FC,5FC)..(GEN,MA,TH);GGN50,KUN51,60,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,MA,PHL,TH,VN)200808-200908

SAND BEIGE,TRIM4#

sub46201-0K011

main46201-0K011-E0iGGN50,60,KUN5#,6#,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,MA,PHL,TH,VN)200909-201202

SAND BEIGE,TRIM4#

main46201-0K020-A0iGGN50,TGN51,61..IDSUV200610-200808

IVORY,TRIM0#

main46201-0K020-E1iGGN50,KUN51,60,TGN51,61..IDSUV200808-201107

SAND BEIGE,TRIM4#

main46201-0K030-A0iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-200903

IVORY,TRIM0#

main46201-0K030-E0iGGN50,60..ANCOM200810-201204

SAND BEIGE,TRIM4#

main46201-0K040-A0iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-200810

IVORY,TRIM0#

main46201-0K040-E0iGGN50,60,KUN51,61,LAN50,TGN51..SA200810-201108

SAND BEIGE,TRIM4#

main46201-0K050-E1iKUN51..IND200908-201201

SAND BEIGE,TRIM4#

main46201-0K060-E0iGGN50,KUN51,61,TGN61..LA200906-201110

SAND BEIGE,TRIM4#

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-0K010iKUN51,TGN51200501-200504

main46304-0K021iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-201108

main46304-0K030iGGN60..GEN200504-201107

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-0K010iGGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN50,KUN50,61,LAN50..(SUVW,THSUV)..(5F,5FC);GGN60,KUN51,60,TGN51,61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,MA,PHL,SA,TH)200501-201107

sub46410-0K011

main46410-0K020iGGN50,TGN51,61..IDSUV200610-201107

main46410-0K030iKUN51..IND200908

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-0K050iGGN50..LHD;GGN50..5FC..SA;GGN60,KUN50..4FC,5FC;KUN51,6#,LAN50,TGN51,61200501-201204

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01799iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-0K050iKUN50,TGN51..MA200501-200509

sub46430-0K051

main46430-0K051iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200509-201204

46439INSULATOR, PARKING BRAKE CABLE HEAT

main46439-0K010iGGN60..SUVW..5FC;GGN50..LHD..(SUVW,THSUV);GGN50,KUN50..RHD..(4FC,5FC);KUN51,6#,LAN50,TGN51,61..SUVW,THSUV200501-201107

main46439-0K030iGGN50,KUN51,60,TGN51,61..IDSUV200610-201107

46439AINSULATOR, PARKING BRAKE CABLE HEAT, NO.2

main46439-0K050iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201204

46451BRACKET, CABLE SUPPORT

main46451-0K010iGGN50,TGN51,61..IDSUV200610-200701

sub46451-0K040

main46451-0K040iTGN61..IDSUV..GCC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN50,KUN50,61,LAN50..(SUVW,THSUV)..(5F,5FC);GGN60,KUN51,60,TGN51,61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,L200501-201107

46452BBRACKET, CABLE SUPPORT, NO.2

main46452-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201204

8401

90105T0117

main90105-T0117

90105T0120

main90105-T0120

90119T0126

main90119-T0126

90119T0166

main90119-T0166

90119T0342

main90119-T0342

90178T0004

main90178-T0004

90178T0019

main90178-T0019

9017906329

main90179-06329

90182T0013

main90182-T0013

90240T0001

main90240-T0001

9046814033

main90468-14033

90468T0011

main90468-T0011

23 parts on this diagram · 1 diagram in section
