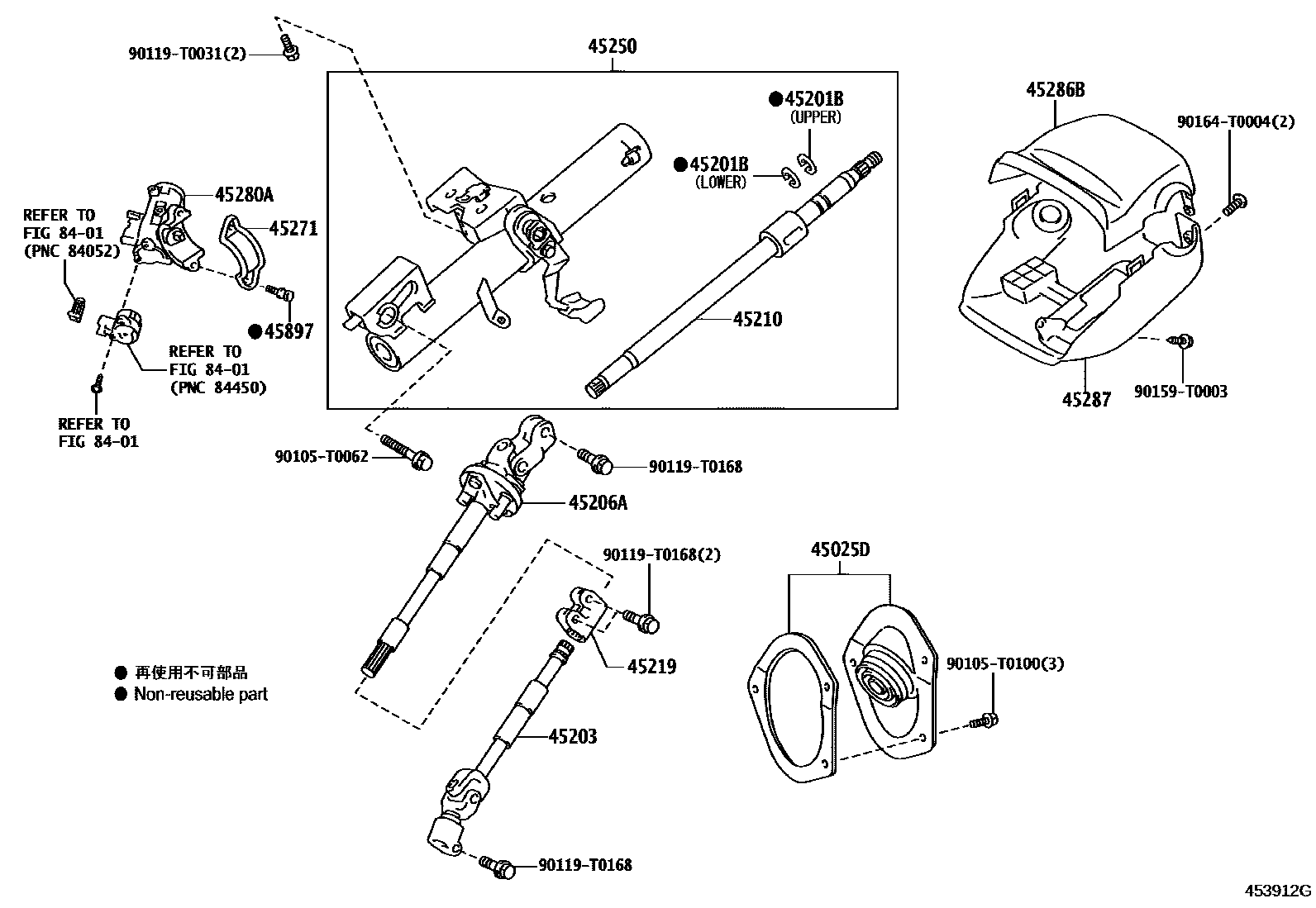

STEERING COLUMN & SHAFT

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-0K030iKUN51,TGN51,61..RHD;GGN50,60,KUN50,6#,LAN50..RHD..SUVW..(5F,5FC)200501-200810

main45025-0K040iGGN50,60,KUN51,6#,LAN50,TGN51,61..LHD200504-200812

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iGGN50..LHD;GGN50..5FC..SA;GGN60,KUN50..4FC,5FC;KUN51,6#,LAN50,TGN51,61200501-200812

T=1.20,UPPER

main90520-17269iTGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR200501-200812

T=1.20,LOWER

45203SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2

main45203-0K030iKUN51,TGN51,61..RHD;GGN50,60,KUN50,6#,LAN50..RHD..SUVW..(5F,5FC)200501-200810

main45203-0K040iTGN61..5F..LA;TGN61..IDSUV..GCC;KUN51..LHD..(SUVW,THSUV);GGN50,KUN61,LAN50,TGN51..LHD;GGN60,KUN60,TGN61..LHD..SUVW..SR200504-200812

45206AYOKE SUB-ASSY, STEERING SLIDING W/COUPLING

main45206-0K010iTGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR200501-201204

45210SHAFT ASSY, STEERING MAIN

main45210-0K010iTGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR200501-200812

45219YOKE, STEERING SLIDING

main45219-0K010iTGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR200501-200812

45250COLUMN ASSY, STEERING

main45250-0K010iGGN50..LHD;GGN50..5FC..SA;GGN60,KUN50..4FC,5FC;KUN51,6#,LAN50,TGN51,61200501-200812

45271CLAMP, STEERING COLUMN, UPPER

main45271-0K010iTGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR200501-200812

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-0K020iGGN50..LHD..5F;KUN51,6#,LAN50,TGN51,61..5F200501-200812

main45280-0K030iGGN50,60,KUN5#,6#,TGN51,61..4FC,5FC200501-200812

45286BCOVER, STEERING COLUMN, UPR

main45286-0K010-B0iKUN50,TGN51..MA200809-201109

DK.GRAY,TRIM1#

sub45286-0K010

main45286-0K010-E0iGGN50,KUN5#,60,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,MA,PHL,TH)200501-200809

SANDAL WOOD,TRIM0#

sub45286-0K010

main45286-0K010-E1iGGN60,KUN50,61..(4FC,5FC)..(GEN,MA,TH);GGN50,KUN51,60,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,MA,PHL,TH)200808-201109

ASH BROWN,TRIM4#

sub45286-0K010

main45286-0K020-E0iGGN60..ANCOM;GGN60,KUN61,TGN61..5F..(LA,SA);GGN50,TGN51,61..IDSUV..(GCC,IDN);GGN50,KUN51,LAN50,TGN51..ANCOM,LA,SA200509-200812

SANDAL WOOD,TRIM0#

main45286-0K020-E1iGGN50..5FC..SA;GGN50..ANCOM,LA;GGN60..SUVW..5FC;GGN50,KUN51,60,TGN51,61..IDSUV;KUN51,6#,LAN50,TGN51,61..LA,SA,VN200808-201204

ASH BROWN,TRIM4#

main45286-0K030-E1iKUN51..IND200908-201201

ASH BROWN,TRIM4#

45287COVER, STEERING COLUMN, LWR

main45287-0K010-B0iKUN50,TGN51..MA200809-201109

DK.GRAY,TRIM1#

sub45287-0K010

main45287-0K010-E0iGGN50,KUN5#,60,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,MA,PHL,TH)200501-200809

SANDAL WOOD,TRIM0#

sub45287-0K010

main45287-0K010-E1iGGN60,KUN50,61..(4FC,5FC)..(GEN,MA,TH);GGN50,KUN51,60,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,MA,PHL,TH)200808-201109

ASH BROWN,TRIM4#

sub45287-0K010

main45287-0K020-E0iGGN60..ANCOM;GGN60,KUN61,TGN61..5F..(LA,SA);GGN50,TGN51,61..IDSUV..(GCC,IDN);GGN50,KUN51,LAN50,TGN51..ANCOM,LA,SA200509-200812

SANDAL WOOD,TRIM0#

sub45287-0K010

main45287-0K020-E1iGGN50..5FC..SA;GGN50..ANCOM,LA;GGN60..SUVW..5FC;GGN50,KUN51,60,TGN51,61..IDSUV;KUN51,6#,LAN50,TGN51,61..LA,SA,VN200808-201204

ASH BROWN,TRIM4#

sub45287-0K010

main45287-0K030-E1iKUN51..IND200908-201201

ASH BROWN,TRIM4#

45897BOLT, STEERING LOCK SET

main45897-0K010iTGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR200501-200812

8401

90105T0062

main90105-T0062

90105T0100

main90105-T0100

90119T0031

main90119-T0031

90119T0168

main90119-T0168

90159T0003

main90159-T0003

90164T0004

main90164-T0004

19 parts on this diagram · 1 diagram in section
