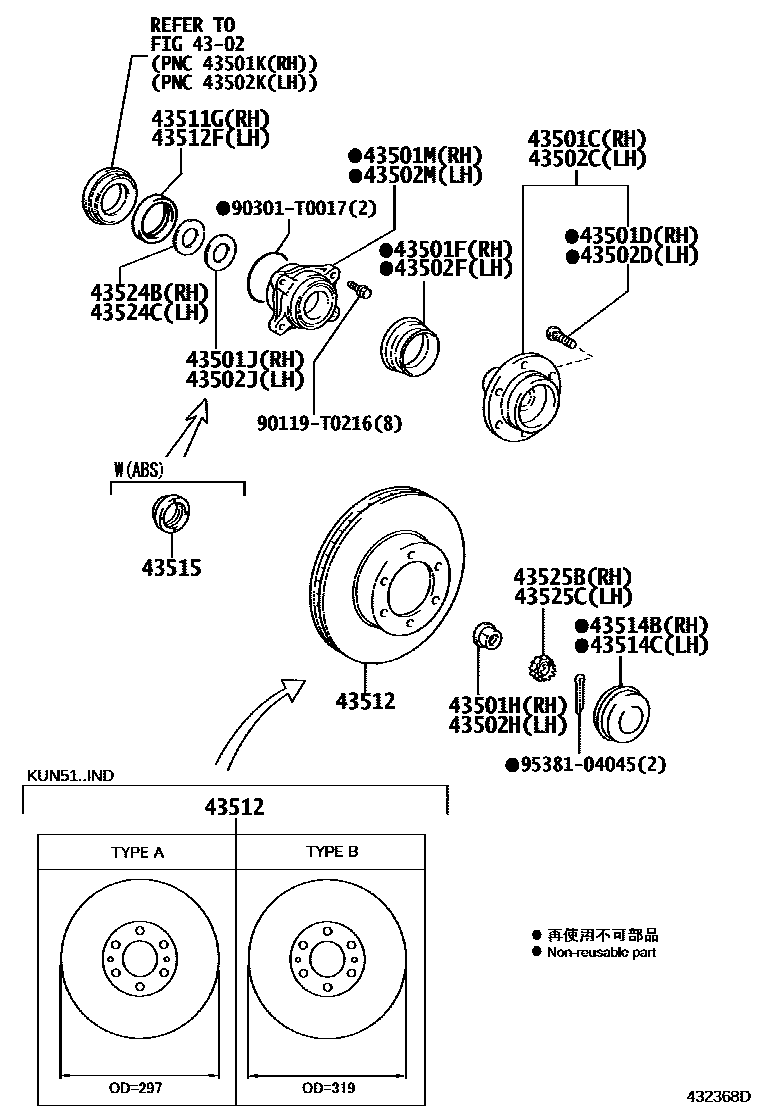

FRONT AXLE HUB

0001 1 0002 1

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-0K030iGGN50..LHD;KUN51,LAN50,TGN51;GGN50,KUN50..RHD..(4FC,5FC)200501-201204

main43502-0K050iGGN60..ANCOM;TGN61..IDSUV..(GCC,IDN);KUN61,TGN61..5F..(LA,SA);GGN60,KUN60,TGN61..SUVW..(4FC,5F)..SR200504-201204

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iGGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)200501-201204

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90312-T0001iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201204

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90178-28002iGGN50..LHD;KUN51,LAN50,TGN51;GGN50,KUN50..RHD..(4FC,5FC)200705-201204

main90178-T0040iGGN50,KUN5#,TGN51200501-200606

main90179-28007iGGN50,KUN5#,LAN50,TGN51200606-200704

sub90178-28002

43501JSPACER (FOR FRONT AXLE HUB RH)

main90560-T0013iTGN51,61..GCC200507-201110

main90560-T0013iGGN50..GCC200608-201108

ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT

43501MBEARING (FOR FRONT AXLE HUB INNER RH)

main90080-37030iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-201108

main90369-T0003iTGN61..5F..LA;TGN61..IDSUV..(GCC,IDN);GGN60,TGN51..ANCOM,GCC,IDN,MA,TH;GGN50,KUN50,61..(5F,5FC)..(ANCOM,GCC,GEN,LA,MA);KUN51,60,TGN61..(SUVW,THSUV)..SR..(GCC,GEN,ID200501-201204

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-0K030iKUN51..SUVW,THSUV;TGN51..GCC,IDN,MA,SA,TH;GGN50,KUN50,LAN50..5F,5FC200501-201204

main43502-0K050iKUN6#,TGN61;GGN60..SUVW..5FC200504-201204

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201204

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90312-T0001iGGN60..GEN200501-201204

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90178-28002iKUN51..SUVW,THSUV;TGN51..GCC,IDN,MA,SA,TH;GGN50,KUN50,LAN50..5F,5FC200705-201204

main90178-T0040iGGN50,KUN5#,TGN51200501-200606

main90179-28007iGGN50,KUN5#,LAN50,TGN51200606-200704

sub90178-28002

43502JSPACER (FOR FRONT AXLE HUB LH)

main90560-T0013iKUN51..RHD..SA200608-201108

ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT

main90560-T0013iTGN51,61..GCC200507-201110

43502MBEARING (FOR FRONT AXLE HUB INNER LH)

main90080-37030iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-201108

main90369-T0003iGGN60..GEN200501-201204

43511GSEAL, OIL (FOR FRONT AXLE HUB OUTER RH)

main90316-T0002iGGN50..LHD;KUN51,LAN50,TGN51;GGN50,KUN50..RHD..(4FC,5FC)200501-201204

43512DISC, FRONT

main43512-0K060iKUN51..PHL;KUN51..5F..TH;KUN60..IDN,PHL,TH;KUN50,TGN51,61..4FC..(IDN,MA,PHL,TH)200501-201109

main43512-0K060iKUN51..IND200808-201002

TYPE A:REFER ILLUST.

main43512-0K090iKUN51..IND200908-201002

TYPE B:REFER ILLUST.

main43512-0K090iGGN50,KUN51,TGN51,61..GCC,GEN200507-201204

main43512-0K090iGGN50..GCC200608-200808

ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT

main43512-0K090iTGN51,61..GCC200708-200808

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main43512-0K100iKUN51..RHD..5F..SA200810-201108

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

sub43512-0K101

main43512-0K100iKUN51..RHD..5F..SA200810-201108

ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT

sub43512-0K101

main43512-0K100iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-200810

sub43512-0K101

main43512-0K110iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-201204

43512FSEAL, OIL (FOR FRONT AXLE HUB OUTER LH)

main90316-T0002iTGN51..TH200501-201204

43514BCAP, FRONT AXLE HUB GREASE, RH

main43514-0K010iTGN51..TH200501-201204

43514CCAP, FRONT AXLE HUB GREASE, LH

main43514-0K010iGGN50..ANCOM200501-201204

43515ROTOR, SKID CONTROL, FRONT

main43515-0K020iKUN51..SA;GGN50..GCC200507-200810

ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT

main43515-0K020iTGN51,61..GCC200708-201110

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main43515-0K020iTGN61..IDSUV..IDN;GGN60,TGN51..ANCOM,IDN,MA,TH;GGN50,KUN50,61..(5F,5FC)..(ANCOM,GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GEN,IDN,LA,PHL,SA,200501-201204

43524BSPACER, FRONT WHEEL INNER BEARING, RH

main43524-0K020iKUN51..SUVW,THSUV;TGN51..GCC,IDN,MA,SA,TH;GGN50,KUN50,LAN50..5F,5FC200501-201204

43524CSPACER, FRONT WHEEL INNER BEARING, LH

main43524-0K020iKUN51..SUVW,THSUV;TGN51..GCC,IDN,MA,SA,TH;GGN50,KUN50,LAN50..5F,5FC200501-201204

43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH

main43525-35010iGGN50,KUN5#,LAN50,TGN51200501-200611

main43525-71010iTGN51..TH200611-201204

43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH

main43525-35010iGGN50,KUN5#,LAN50,TGN51200501-200611

main43525-71010iTGN51..TH200611-201204

90119T0216

main90119-T0216

90301T0017

main90301-T0017

9538104045

main95381-04045

26 parts on this diagram · 2 diagrams in section
