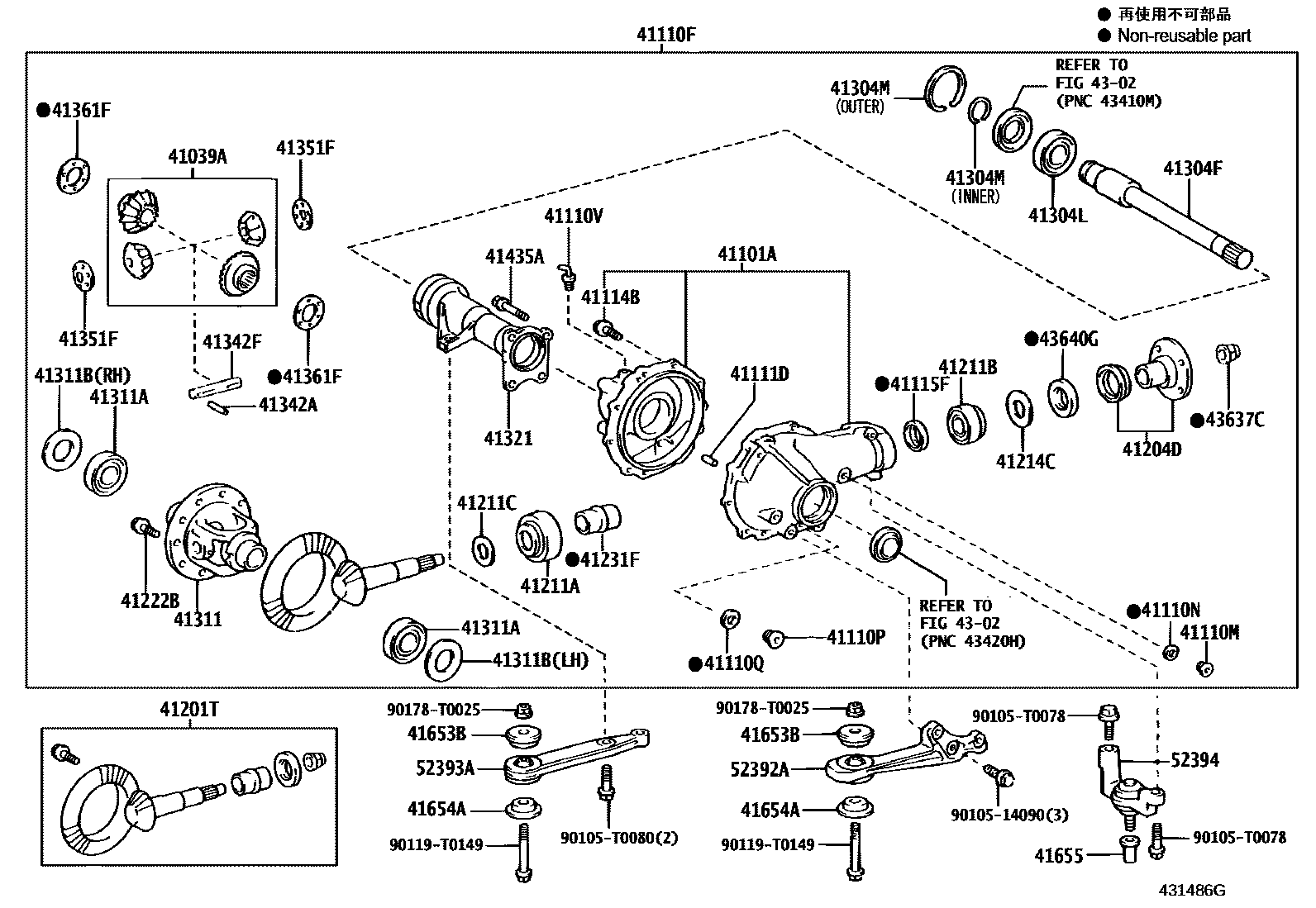

FRONT AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1

41039AGEAR KIT, DIFFERENTIAL

main41039-35010iGGN50,KUN51..LA201104-201204

main41039-71020iGGN50..ANCOM200501-201204

41101ACARRIER SUB-ASSY, DIFFERENTIAL, FRONT

main41101-0K030iKUN50,TGN51..MA200501-201204

main41101-71010iGGN50,KUN51,LAN50,TGN51..ANCOM,SA200509-201204

41110FCARRIER ASSY, DIFFERENTIAL, FRONT

main41110-0K240iGGN50,KUN51..(5F,5FC)..(GCC,GEN,TH)200501-201001

*FGR=43:12=3.583

sub41110-0K241

main41110-0K241iGGN50,KUN51..(5F,5FC)..(GCC,GEN,IND,TH)201001-201201

*FGR=43:12=3.583

sub41110-0K242

sub41336-0K080

main41110-0K250iKUN51..4FC..(GEN,PHL,TH)200501-201001

*FGR=43:11=3.909

sub41110-0K251

main41110-0K251iKUN5#..4FC..(GEN,MA,PHL,TH)201001-201109

*FGR=43:11=3.909

sub41110-0K252

sub41336-0K080

main41110-0K260iTGN51..5F..GCC200507-201001

*FGR=41:10=4.100

sub41110-0K261

main41110-0K261iTGN51..5F..GCC201001-201107

*FGR=41:10=4.100

sub41110-0K262

sub41336-0K080

main41110-0K270iTGN51..4FC..(GCC,IDN)200501-201001

*FGR=41:9=4.555

sub41110-0K271

main41110-0K271iTGN51..4FC201001-201202

*FGR=41:9=4.555

sub41110-0K272

sub41336-0K080

main41110-71090iGGN50,KUN51..(5F,5FC)..(LA,SA)200509-200903

*FGR=43:12=3.583

sub41110-71180

sub41336-0K010

sub41336-0K050

main41110-71100iTGN51..SA200605-200903

*FGR=41:10=4.100

sub41110-71200

main41110-71110iLAN50200605-200903

*FGR=41:9=4.555

sub41110-71210

main41110-71160iKUN51..4FC..LA200509-200905

*FGR=43:11=3.909

sub41110-71190

sub41336-0K010

sub41336-0K050

main41110-71180iGGN50,KUN51..(5F,5FC)..(ANCOM,LA,SA)200903-201204

*FGR=43:12=3.583

sub41110-71390

sub41336-0K051

sub41336-0K071

main41110-71190iKUN51..4FC..(LA,SA)200905-201110

*FGR=43:11=3.909

sub41110-71191

main41110-71200iTGN51..SA200903-201108

*FGR=43:10=4.100

sub41110-71410

sub41336-0K051

sub41336-0K071

main41110-71210iLAN50200903-201108

*FGR=41:9=4.555

sub41110-71420

sub41336-0K051

sub41336-0K071

41110MPLUG, FRONT DIFFERENTIAL FILLER

main90341-18032iGGN50,KUN51,LAN50,TGN51..ANCOM,LA,SA200509-200701

main90341-18066iGGN50,KUN51,LAN50,TGN51..LA,SA200701-201204

sub90341-18032

main90341-T0002iTGN51..TH200501-201202

41110NGASKET, FRONT DIFFERENTIAL FILLER PLUG

main12157-10010iTGN51..GCC,IDN;GGN50,KUN51..GCC,GEN,PHL,TH200501-201204

41110PPLUG, FRONT DIFFERENTIAL DRAIN

main90341-24014iGGN50,KUN51,LAN50,TGN51..ANCOM,SA200509-201204

main90341-T0003iKUN50..4FC;GGN50,KUN51,TGN51..GCC,GEN,IDN,IND,MA,PHL,TH,VN200501-201204

41110QGASKET, FRONT DIFFERENTIAL DRAIN PLUG

main90430-24003iGGN50..ANCOM200501-201204

sub90430-24017

41110VUNION (FOR FRONT DIFFERENTIAL)

main90404-08004iTGN51..GCC,IDN;GGN50,KUN51..GCC,GEN,PHL,TH200501-201204

41111DPIN, STRAIGHT (FOR FRONT DIFFERENTIAL CARRIER)

main90250-10017iGGN50,KUN51,LAN50,TGN51..ANCOM,SA200509-201204

main90250-T0004iKUN50..4FC;GGN50,KUN51,TGN51..GCC,GEN,IDN,IND,MA,PHL,TH,VN200501-201204

41114BBOLT, FRONT DIFFERENTIAL BEARING CAP

main90105-T0101iKUN50..4FC;GGN50,KUN51,TGN51..GCC,GEN,IDN,IND,MA,PHL,TH,VN200501-200809

41115FRING, FRONT DIFFERENTIAL OIL STORAGE

main41115-0K010iTGN51..GCC,IDN;GGN50,KUN51..GCC,GEN,PHL,TH200501-201204

main41115-35010iGGN50,KUN51,LAN50,TGN51..ANCOM,SA200509-201204

41201TFINAL GEAR KIT, DIFFERENTIAL, FRONT

main41201-79095iGGN50,KUN51..(5F,5FC)..LA200501-201204

*FGR=43:12=3.583

main41201-79135iKUN50..5F;KUN51..(SUVW,THSUV)..4FC200501-201110

*FGR=43:11=3.909

main41201-79165iLAN50;TGN51..4FC200501-201204

*FGR=41:9=4.556

main41201-79175iTGN51..SA200507-201108

*FGR=41:10=4.100

41204DFLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT

main41204-0K030iTGN51..TH200501-201204

sub41204-0K120

main41204-35110iGGN50,KUN51,LAN50,TGN51..ANCOM,SA200509-201204

41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)

main90366-35087iGGN50,KUN51,LAN50,TGN51..LA,SA200509-201204

main90366-T0016iKUN50,TGN51..MA200501-201204

41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)

main90366-30067iGGN50..ANCOM200509-201204

main90366-T0013iKUN50,TGN51..MA200501-201204

41211CGEAR, DIFFERENTIAL RING

main90564-35109iKUN50,TGN51..MA200501-201204

OD=52,T=1.70

main90564-35110iKUN50,TGN51..MA200501-201204

OD=52,T=1.73

main90564-35111iKUN50,TGN51..MA200501-201204

OD=52,T=1.76

main90564-35112iGGN50..ANCOM,GCC,GEN;GGN50,KUN50..RHD..(4FC,5FC);KUN51,LAN50,TGN51..GCC,GEN,IDN,IND,MA,PHL,SA,TH,VN200501-201204

OD=52,T=1.79

main90564-35113iKUN50,TGN51..MA200501-201204

OD=52,T=1.82

main90564-35114iTGN51..GCC,IDN;GGN50,KUN51..GCC,GEN,PHL,TH200501-201204

OD=52,T=1.85

main90564-35115iGGN50..ANCOM,GCC,GEN;GGN50,KUN50..RHD..(4FC,5FC);KUN51,LAN50,TGN51..GCC,GEN,IDN,IND,MA,PHL,SA,TH,VN200501-201204

OD=52,T=1.88

main90564-35116iGGN50..ANCOM,GCC,GEN;GGN50,KUN50..RHD..(4FC,5FC);KUN51,LAN50,TGN51..GCC,GEN,IDN,IND,MA,PHL,SA,TH,VN200501-201204

OD=52,T=1.91

main90564-35117iGGN50,KUN51,LAN50,TGN51..LA,SA200501-201204

OD=52,T=1.94

main90564-35118iGGN50..ANCOM,GCC,GEN;GGN50,KUN50..RHD..(4FC,5FC);KUN51,LAN50,TGN51..GCC,GEN,IDN,IND,MA,PHL,SA,TH,VN200501-201204

OD=52,T=1.97

main90564-35119iGGN50,KUN51..LA200501-201204

OD=52,T=2.00

main90564-35120iTGN51..GCC,IDN;GGN50,KUN51..GCC,GEN,PHL,TH200501-201204

OD=52,T=2.03

main90564-35121iTGN51..GCC,IDN;GGN50,KUN51..GCC,GEN,PHL,TH200501-201204

OD=52,T=2.06

main90564-35123iGGN50,KUN51,LAN50,TGN51..LA,SA200501-201204

OD=52,T=2.09

main90564-35124iGGN50..ANCOM200501-201204

OD=52,T=2.12

main90564-35125iGGN50,KUN51,LAN50,TGN51..LA,SA200501-201204

OD=52,T=2.15

main90564-35126iTGN51..GCC,IDN;GGN50,KUN51..GCC,GEN,PHL,TH200501-201204

OD=52,T=2.18

main90564-35127iTGN51..TH200501-201204

OD=52,T=2.21

main90564-35128iGGN50,KUN51,LAN50,TGN51..LA,SA200501-201204

OD=52,T=2.24

main90564-35129iGGN50..ANCOM,GCC,GEN;GGN50,KUN50..RHD..(4FC,5FC);KUN51,LAN50,TGN51..GCC,GEN,IDN,IND,MA,PHL,SA,TH,VN200501-201204

OD=52,T=2.27

main90564-35130iTGN51..TH200501-201204

OD=52,T=2.30

main90564-35131iTGN51..GCC,IDN;GGN50,KUN51..GCC,GEN,PHL,TH200501-201204

OD=52,T=2.33

41214CSLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL

main41214-26011iTGN51..TH200501-201204

41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)

main90901-05002iTGN51..TH200501-201204

41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING

main41231-35040iTGN51..TH200501-201204

41304FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH

main41337-35050iTGN51..TH200501-201204

41304LBEARING (FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT RH)

main90363-T0014iKUN50,TGN51..MA200501-201204

41304MRING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT RH)

main90520-41014iGGN50,KUN51,LAN50,TGN51..ANCOM,LA,SA200509-201204

INNER

main90520-75002iGGN50,KUN51,LAN50,TGN51..ANCOM,SA200509-201204

OUTER

main90520-T0027iKUN51..(SUVW,THSUV)..(GEN,PHL,TH);GGN50,KUN50,TGN51..GCC,GEN,IDN,MA,TH200501-201204

INNER

main90521-T0002iKUN51..(SUVW,THSUV)..(GEN,PHL,TH);GGN50,KUN50,TGN51..GCC,GEN,IDN,MA,TH200501-201204

OUTER

41311CASE, FRONT DIFFERENTIAL

main41311-0K040iTGN51..GCC,IDN;KUN51..4FC..(GEN,PHL,TH)200501-201204

main41311-0K050iGGN50,KUN51..(5F,5FC)..(GCC,GEN,IND,TH)200501-201204

main41311-71020iKUN51..4FC..LA;LAN50,TGN51..SA200509-201110

main41311-71030iGGN50,KUN51..(5F,5FC)..LA200509-201204

41311ABEARING (FOR FRONT DIFFERENTIAL CASE)

main90366-53004iGGN50..ANCOM200509-201204

main90366-T0031iTGN51..TH200501-201204

41311BWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE)

main90564-50124iTGN51..TH200501-201204

T=1.60,LH

main90564-50126iTGN51..GCC,IDN;GGN50,KUN51..GCC,GEN,PHL,TH200501-201204

T=1.66,LH

main90564-50128iGGN50,KUN51,LAN50,TGN51..LA,SA200501-201204

T=1.72,LH

main90564-50130iGGN50..ANCOM200501-201204

T=1.78,LH

main90564-50132iKUN50,TGN51..MA200501-201204

T=1.84,LH

main90564-50134iGGN50..ANCOM,GCC,GEN;GGN50,KUN50..RHD..(4FC,5FC);KUN51,LAN50,TGN51..GCC,GEN,IDN,IND,MA,PHL,SA,TH,VN200501-201204

T=1.90,LH

main90564-50136iGGN50,KUN51..LA200501-201204

T=1.96,LH

main90564-50138iGGN50..ANCOM200501-201204

T=2.02,LH

main90564-50140iKUN50,TGN51..MA200501-201204

T=2.08,LH

main90564-50142iGGN50,KUN51,LAN50,TGN51..LA,SA200501-201204

T=2.14,LH

main90564-50154iGGN50,KUN51,LAN50,TGN51..LA,SA200501-201204

T=1.60,RH

main90564-50156iKUN50,TGN51..MA200501-201204

T=1.66,RH

main90564-50158iGGN50,KUN51..LA200501-201204

T=1.72,RH

main90564-50160iGGN50,KUN51,LAN50,TGN51..LA,SA200501-201204

T=1.78,RH

main90564-50162iTGN51..TH200501-201204

T=1.84,RH

main90564-50164iGGN50,KUN51..LA200501-201204

T=1.90,RH

main90564-50166iTGN51..GCC,IDN;GGN50,KUN51..GCC,GEN,PHL,TH200501-201204

T=1.96,RH

main90564-50168iGGN50..ANCOM200501-201204

T=2.02,RH

main90564-50170iTGN51..TH200501-201204

T=2.08,RH

main90564-50172iTGN51..TH200501-201204

T=2.14,RH

main90564-50184iTGN51..TH200501-201204

T=1.58,LH

main90564-50185iGGN50,KUN51..LA200501-201204

T=1.62,LH

main90564-50186iKUN50,TGN51..MA200501-201204

T=1.64,LH

main90564-50187iGGN50..ANCOM200501-201204

T=1.68,LH

main90564-50188iGGN50..ANCOM200501-201204

T=1.70,LH

main90564-50189iTGN51..TH200501-201204

T=1.74,LH

main90564-50190iGGN50,KUN51,LAN50,TGN51..LA,SA200501-201204

T=1.76,LH

main90564-50191iTGN51..GCC,IDN;GGN50,KUN51..GCC,GEN,PHL,TH200501-201204

T=1.80,LH

main90564-50192iTGN51..TH200501-201204

T=1.82,LH

main90564-50193iGGN50..ANCOM200501-201204

T=1.86,LH

main90564-50194iGGN50..ANCOM200501-201204

T=1.88,LH

main90564-50195iKUN50,TGN51..MA200501-201204

T=1.92,LH

main90564-50196iTGN51..TH200501-201204

T=1.94,LH

main90564-50197iTGN51..TH200501-201204

T=1.98,LH

main90564-50198iGGN50..ANCOM,GCC,GEN;GGN50,KUN50..RHD..(4FC,5FC);KUN51,LAN50,TGN51..GCC,GEN,IDN,IND,MA,PHL,SA,TH,VN200501-201204

T=2.00,LH

main90564-50199iGGN50,KUN51,LAN50,TGN51..LA,SA200501-201204

T=2.04,LH

main90564-50200iGGN50..ANCOM,GCC,GEN;GGN50,KUN50..RHD..(4FC,5FC);KUN51,LAN50,TGN51..GCC,GEN,IDN,IND,MA,PHL,SA,TH,VN200501-201204

T=2.06,LH

main90564-50201iTGN51..GCC,IDN;GGN50,KUN51..GCC,GEN,PHL,TH200501-201204

T=2.10,LH

main90564-50202iKUN50,TGN51..MA200501-201204

T=2.12,LH

main90564-50203iGGN50..ANCOM,GCC,GEN;GGN50,KUN50..RHD..(4FC,5FC);KUN51,LAN50,TGN51..GCC,GEN,IDN,IND,MA,PHL,SA,TH,VN200501-201204

T=2.16,LH

main90564-50204iGGN50..ANCOM200501-201204

T=1.58,RH

main90564-50205iKUN50,TGN51..MA200501-201204

T=1.62,RH

main90564-50206iGGN50..ANCOM200501-201204

T=1.64,RH

main90564-50207iGGN50,KUN51,LAN50,TGN51..LA,SA200501-201204

T=1.68,RH

main90564-50208iTGN51..TH200501-201204

T=1.70,RH

main90564-50209iTGN51..GCC,IDN;GGN50,KUN51..GCC,GEN,PHL,TH200501-201204

T=1.74,RH

main90564-50210iGGN50,KUN51..LA200501-201204

T=1.76,RH

main90564-50211iGGN50,KUN51..LA200501-201204

T=1.80,RH

main90564-50212iTGN51..GCC,IDN;GGN50,KUN51..GCC,GEN,PHL,TH200501-201204

T=1.82,RH

main90564-50213iKUN50,TGN51..MA200501-201204

T=1.86,RH

main90564-50214iGGN50,KUN51..LA200501-201204

T=1.88,RH

main90564-50215iKUN50,TGN51..MA200501-201204

T=1.92,RH

main90564-50216iKUN50,TGN51..MA200501-201204

T=1.94,RH

main90564-50217iGGN50,KUN51,LAN50,TGN51..LA,SA200501-201204

T=1.98,RH

main90564-50218iGGN50..ANCOM,GCC,GEN;GGN50,KUN50..RHD..(4FC,5FC);KUN51,LAN50,TGN51..GCC,GEN,IDN,IND,MA,PHL,SA,TH,VN200501-201204

T=2.00,RH

main90564-50219iGGN50,KUN51,LAN50,TGN51..LA,SA200501-201204

T=2.04,RH

main90564-50220iKUN50,TGN51..MA200501-201204

T=2.06,RH

main90564-50221iGGN50,KUN51..LA200501-201204

T=2.10,RH

main90564-50222iTGN51..GCC,IDN;GGN50,KUN51..GCC,GEN,PHL,TH200501-201204

T=2.12,RH

main90564-50223iGGN50,KUN51..LA200501-201204

T=2.16,RH

main90564-50224iGGN50,KUN51,LAN50,TGN51..LA,SA200509-201204

T=1.44,RH

main90564-50225iGGN50,KUN51,LAN50,TGN51..ANCOM,SA200509-201204

T=1.46,RH

main90564-50226iGGN50,KUN51,LAN50,TGN51..ANCOM,SA200509-201204

T=1.48,RH

main90564-50227iGGN50,KUN51,LAN50,TGN51..LA,SA200509-201204

T=1.50,RH

main90564-50228iGGN50,KUN51,LAN50,TGN51..LA,SA200509-201204

T=1.52,RH

main90564-50229iGGN50,KUN51,LAN50,TGN51..ANCOM,SA200509-201204

T=1.54,RH

main90564-50230iGGN50,KUN51..LA200509-201204

T=1.56,RH

main90564-50231iGGN50,KUN51,LAN50,TGN51..ANCOM,SA200509-201204

T=2.18,LH

main90564-50232iGGN50..ANCOM200509-201204

T=2.20,LH

main90564-50233iGGN50,KUN51,LAN50,TGN51..LA,SA200509-201204

T=2.22,LH

main90564-50234iGGN50,KUN51,LAN50,TGN51..LA,SA200509-201204

T=2.24,LH

main90564-50235iGGN50,KUN51,LAN50,TGN51..ANCOM,SA200509-201204

T=2.26,LH

main90564-50236iGGN50,KUN51,LAN50,TGN51..LA,SA200509-201204

T=2.28,LH

main90564-50237iGGN50,KUN51,LAN50,TGN51..LA,SA200509-201204

T=2.30,LH

41321TUBE, DIFFERENTIAL EXTENSION FLANGE

main41321-0K010iKUN50,TGN51..MA200501-201204

main41321-35050iGGN50,KUN51,LAN50,TGN51..ANCOM,SA200509-201204

41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)

main90250-06058iGGN50,KUN51,LAN50,TGN51..LA,SA200509-201204

main90250-T0006iKUN50..4FC;GGN50,KUN51,TGN51..GCC,GEN,IDN,IND,MA,PHL,TH,VN200501-201204

41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1

main41342-0K010iTGN51..TH200501-201204

sub41342-0K040

main41342-35020iGGN50..ANCOM200509-201204

sub41342-53020

41351FWASHER, FRONT DIFFERENTIAL PINION THRUST

main41351-0K010iTGN51..TH200501-201204

main41351-35030iGGN50..ANCOM200509-201204

41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-0K020iTGN51..TH200501-201204

T=1.55

main41361-0K030iKUN50,TGN51..MA200501-201204

T=1.60

main41361-0K040iTGN51..TH200501-201204

T=1.65

main41361-0K050iTGN51..TH200501-201204

T=1.70

main41361-0K060iKUN50,TGN51..MA200501-201204

T=1.75

main41361-0K070iKUN50..4FC;GGN50,KUN51,TGN51..GCC,GEN,IDN,IND,MA,PHL,TH,VN200501-201204

T=1.80

main41361-0K080iKUN50,TGN51..MA200501-201204

T=1.85

main41361-0K090iTGN51..GCC,IDN;GGN50,KUN51..GCC,GEN,PHL,TH200501-201204

T=1.90

main41361-34010iGGN50..ANCOM200509-201204

T=1.50

main41361-34020iGGN50,KUN51,LAN50,TGN51..ANCOM,SA200509-201204

T=1.55

main41361-34030iGGN50,KUN51,LAN50,TGN51..ANCOM,SA200509-201204

T=1.60

main41361-34040iGGN50,KUN51,LAN50,TGN51..ANCOM,SA200509-201204

T=1.65

main41361-34050iGGN50,KUN51,LAN50,TGN51..ANCOM,SA200509-201204

T=1.70

main41361-34060iGGN50,KUN51,LAN50,TGN51..ANCOM,SA200509-201204

T=1.75

main41361-34070iGGN50,KUN51,LAN50,TGN51..LA,SA200509-201204

T=1.80

main41361-34080iGGN50,KUN51,LAN50,TGN51..LA,SA200509-201204

T=1.85

main41361-34090iGGN50,KUN51..LA200509-201204

T=1.90

41435ABOLT (FOR DIFFERENTIAL CLUTCH CASE SETTING)

main90107-12003iGGN50,KUN51,LAN50,TGN51..LA,SA200509-201204

*12-1.25PX24-16.5

main90107-T0002iTGN51..TH200501-201204

*12-1.25PX24-16.5

41653BSTOPPER, DIFFERENTIAL MOUNT, UPPER

main41653-60030iKUN50..4FC;KUN51,LAN50,TGN51200501-200810

main41653-71010iGGN50..SA200507-200903

41654ASTOPPER, DIFFERENTIAL MOUNT, LOWER

main41654-60010iTGN51..TH200501-200903

41655NUT, FRONT DIFFERENTIAL MOUNT, NO.1

main41655-0K011iTGN51..TH200501-200903

4302

43637CNUT, CASTLE (FOR FRONT AXLE DRIVE PINION)

main90177-22003iKUN51..SUVW,THSUV;TGN51..GCC,IDN,MA,SA,TH;GGN50,KUN50,LAN50..5F,5FC200501-201204

43640GSEAL, TYPE T OIL (FOR FRONT AXLE DIFFERENTIAL CARRIER)

main90311-41009iGGN50,KUN51,LAN50,TGN51..LA,SA200509-201204

main90311-T0013iTGN51..TH200501-201204

52392ASUPPORT, FRONT DIFFERENTIAL, NO.1

main52380-71010iTGN51..GCC,IDN;KUN51..GEN,PHL,TH200501-200810

main52380-71040iGGN50..GCC,GEN200507-200903

52393ASUPPORT, FRONT DIFFERENTIAL, NO.2

main52380-71020iKUN50,TGN51..MA200501-200810

main52380-71050iGGN50..ANCOM200507-200903

52394SUPPORT, FRONT DIFFERENTIAL, NO.3

main52380-71030iKUN50,TGN51..MA200501-200903

9010514090

main90105-14090

90105T0078

main90105-T0078

90105T0080

main90105-T0080

90119T0149

main90119-T0149

90178T0025

main90178-T0025

45 parts on this diagram · 3 diagrams in section
