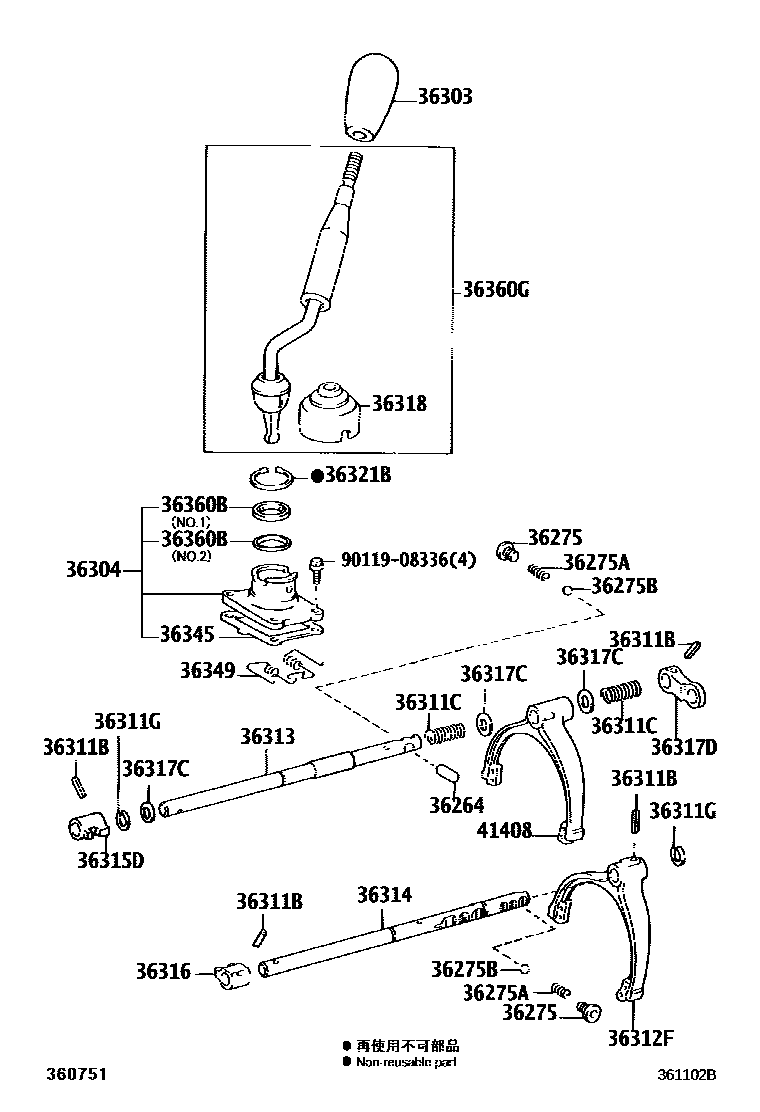

TRANSFER LEVER & SHIFT ROD
36264PIN OR ROLLER, SHIFT INTER-LOCK
L=25.7,OD=9.53
36275PLUG, SHIFT DETENT BALL SPRING
36275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL)
L=23
36275BBALL, SHIFT DETENT
OD=9.52,STEEL
36303KNOB SUB-ASSY, SHIFT LEVER
SANDAL WOOD,TRIM0#
main36303-0K010-E1iKUN50..4FC;KUN51..LHD..SA;LAN50,TGN51..GCC,SA;KUN51..LHD..4FC..(GEN,LA);GGN50,KUN51..(5F,5FC)..(ANCOM,GEN,LA,TH)200808-201204
ASH BROWN,TRIM4#
SEAT COVER MATERIAL-LEATHER,SANDAL WOOD,TRIM0#
sub36303-60290
SRS AIR BAG-WITH(DRIVER & PASSENGER),SANDAL WOOD,TRIM0#
sub36303-60290
36304RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER
(L)
TYPE C:REFER 33-01
(J)
TYPE A,B,D:SEE 33-01
TYPE B,D:SEE 33-01
TYPE D:REFER 33-01
36311BPIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK)
main90254-05001iKUN50..5F;KUN51..SUVW,THSUV;GGN50,TGN51..(4FC,5FC)..(ANCOM,GCC,GEN,IDN,MA,SA,TH)200501-201204
L=22
36311CSPRING, COMPRESION (FOR SHIFT FORK)
36311GRING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK)
36312FFORK, TRANSFER GEAR SHIFT, NO.2
36313SHAFT, TRANSFER FRONT DRIVE SHIFT
36314SHAFT, TRANSFER HIGH AND LOW SHIFT FORK
36315DHEAD, TRANSFER GEAR SHIFT, NO.1
36316HEAD, TRANSFER GEAR SHIFT, NO.2
36317CSTOPPER, TRANSFER SHIFT SHAFT
36317DSTOPPER, NO.2, TRANSFER SHIFT SHAFT
36318BOOT, TRANSFER FRONT DRIVE SHIFT
36321BRING, HOLE SNAP (FOR TRANSFER FRONT DRIVE SHIFT LEVER)
36345GASKET, TRANSFER CONTROL SHIFT LEVER RETAINER
36349SPRING, TRANSFER SELECT RETURN
36360BSEAT, TRANSFER SHIFT LEVER BALL
NO.1
NO.2
41408FORK SUB-ASSY, CENTER DIFFERENTIAL LOCK
9011908336
main90119-08336
24 parts on this diagram · 2 diagrams in section
