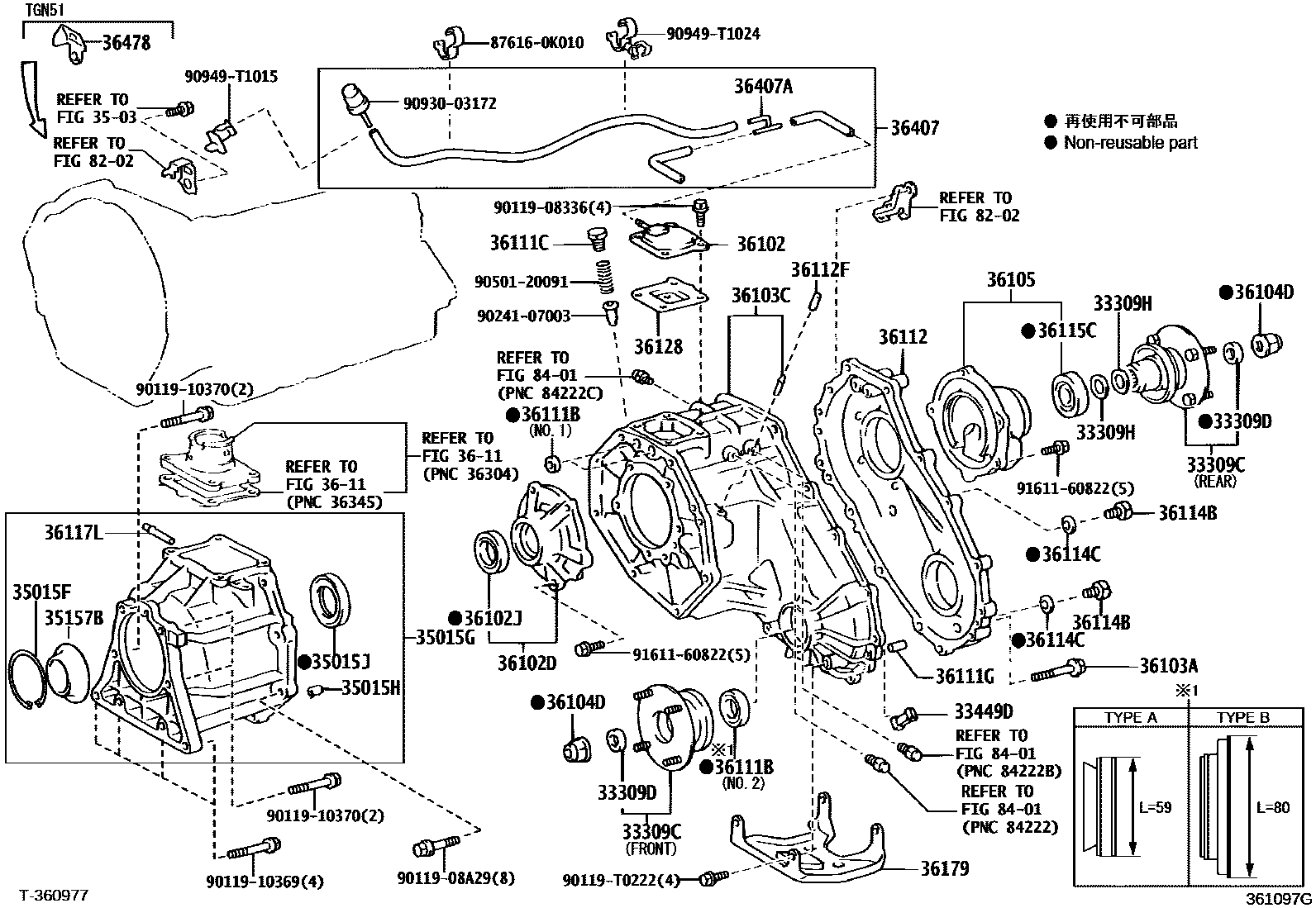

TRANSFER CASE & EXTENSION HOUSING

0001 1 0002 1 0003 1 0004 1 0005 1

33309CFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION

main33309-35110iTGN51..TH200501-200708

FRONT

sub33309-35113

sub90311-41017

main33309-35110iGGN50,KUN5#,LAN50;TGN51..GCC,IDN,MA,SA200501-200807

FRONT,*338

sub33309-35113

sub90311-41017

main33309-35111iGGN50,KUN51,LAN50,TGN51..LA,SA200807-200903

FRONT,*339

sub33309-35112

sub90311-41017

main33309-35111iGGN50..LHD;KUN51,LAN50,TGN51;GGN50,KUN50..RHD..(4FC,5FC)200808-201204

FRONT

sub33309-35112

sub90311-41017

main33309-35120iTGN51..GCC,IDN;GGN50,KUN51..GCC,GEN,PHL,TH200501-201204

REAR

33309DSEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)

main90312-23001iTGN51..GCC,IDN;GGN50,KUN51..GCC,GEN,PHL,TH200501-201204

33309HWASHER, TRANSFER OUTPUT SHAFT

main36275-35030iTGN51..GCC,IDN;GGN50,KUN51..GCC,GEN,PHL,TH200501-201204

N=31,OD=38

33449DMAGNET (FOR TRANSFER CASE)

main33449-32020iKUN50,TGN51..MA200501-201204

35015FRING, HOLE SNAP(FOR TRANSFER ADAPTER)

main90521-72001iKUN51..(SUVW,THSUV)..4FC;GGN50,TGN51..(4FC,5FC)..(ANCOM,GCC,GEN,IDN,MA,SA,TH)200501-200903

35015GADAPTER, TRANSFER, REAR

main35015-35070iTGN51..MA200501-200810

main35015-71010iGGN50..5FC..(GCC,GEN)200507-200903

35015HPIN, RING(FOR TRANSFER CASE)

main90250-11003iTGN51..TH200501-200903

35015JSEAL, OIL(FOR TRANSFER CASE ADAPTER REAR)

main90311-43007iTGN51..TH200501-200903

3503

35157BRECEIVER, TRANSFER CASE REAR ADAPTER OIL

main35157-60010iGGN50,KUN5#,TGN51..4FC,5FC200501-200903

36102COVER SUB-ASSY, TRANSFER CASE

main36102-35040iTGN51..TH200501-201204

36102DRETAINER SUB-ASSY, TRANSFER RH BEARING

main36102-35060iTGN51..TH200501-201204

36102JSEAL, TYPE T OIL (FOR TRANSFER COVER)

main90311-43008iTGN51..TH200501-201204

36103ABOLT (FOR TRANSFER CASE)

main90119-08A28iGGN50,KUN51,LAN50,TGN51..LA,SA200501-201204

*8-1.25PX55-30

36103CCASE, TRANSFER, FRONT

main36103-60350iTGN51..TH200501-201204

36104DNUT (FOR TRANSFER OUTPUT SHAFT)

main90179-22016iTGN51..GCC,IDN;GGN50,KUN51..GCC,GEN,PHL,TH200501-201204

36105HOUSING SUB-ASSY, TRANSFER EXTENSION, FRONT

main36105-60040iGGN50,KUN51,LAN50,TGN51..LA,SA200501-201204

3611

36111BSEAL, OIL (FOR TRANSFER CASE)

main90311-15008iGGN50..LHD;KUN51,LAN50,TGN51;GGN50,KUN50..RHD..(4FC,5FC)200501-201204

NO.1

main90311-41010iGGN50,KUN5#,LAN50,TGN51200501-200609

NO.2

sub90311-41012

main90311-41012iGGN50,KUN5#,LAN50,TGN51200609-200807

NO.2T/P A:REF.ILLUST

main90311-41013iKUN51..SUVW,THSUV;TGN51..GCC,IDN,MA,SA;GGN50,KUN50,LAN50..5F,5FC200807-200903

NO.2T/P B:REF.ILLUST

main90311-41013iGGN50..LHD;KUN51,LAN50,TGN51;GGN50,KUN50..RHD..(4FC,5FC)200808-201204

NO.2

36111CPLUG (FOR TRANSFER CASE)

main90341-14012iTGN51..TH200501-201204

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10214iTGN51..GCC,IDN;GGN50,KUN51..GCC,GEN,PHL,TH200501-201204

L=14,OD=10

36112CASE, TRANSFER, REAR

main36112-60180iGGN50,KUN51,LAN50,TGN51..LA,SA200501-201204

36112FCAP, TRANSFER, REAR CASE

main90339-04024iTGN51..TH200501-201204

36114BPLUG, NO.1 (FOR TRANSFER CASE)

main90341-18006iKUN50,TGN51..MA200501-201204

36114CGASKET, NO.1 (FOR TRANSFER CASE)

main90430-18008iTGN51..TH200501-201204

36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)

main90311-41007iTGN51..TH200501-201204

sub90311-41020

36117ADAPTER, TRANSFER

main36107-0K010iKUN5#..SUVW..5F200501-201201

TYPE C:REFER 33-01

main36107-0K010iKUN51..5F..(LA,SA)200808-200810

main36107-0K020iGGN50..5F..SA200605-200903

main36107-0K020iGGN50..IDSUV..5F;GGN50..5F..(ANCOM,SA)200602-200901

TYPE C:REFER 33-01

main36107-0K020iGGN50,TGN51..LHD..5F200808-201204

TYPE D:REFER 33-01

main36107-0K030iKUN51..5F200808-201201

TYPE D:REFER 33-01

main36107-0K050iKUN51..5F..(GEN,TH)200608-201107

TYPE B:REFER 33-01

main36107-0K060iGGN50,TGN51..(SUVW,THSUV)..5F..(GCC,GEN)200507-201107

TYPE B:REFER 33-01

main36107-60070iKUN51..5F..TH200608-201107

TYPE A:REFER 33-01

main36107-71010iLAN50200605-201108

36117LTUBE(FOR TRANSFER ADAPTER)

main90441-05001iTGN51..TH200501-201204

sub90406-T0007

36128DEFLECTOR, BREATHER OIL

main36128-35060iKUN51..GEN,PHL,TH;GGN50,TGN51..(4FC,5FC)..(GCC,GEN,IDN)200501-201204

main36128-60061iGGN50,TGN51..5F..(GCC,GEN)200507-201204

36179PROTECTOR, TRANSFER CASE LOWER

main36179-0K010iTGN51..TH200501-200903

sub36179-0K011

36407HOSE SUB-ASSY, TRANSFER BREATHER

main36407-60060iLAN50200605-201108

main36407-71010iGGN50..5FC..ANCOM200501-200903

main36407-71020iGGN50,KUN51,TGN51..5F..(GCC,GEN,TH)200501-200903

36407AWAY, 3(FOR TRANSFER BREATHER HOSE)

main90413-04008iTGN51..TH200501-200903

36478BRACKET, TRANSFER BREATHER

main36478-0K010iGGN50,TGN51..GCC,GEN,IDN200501-200903

8202

8401

876160K010CLAMP, COOLING UNIT CASE

main87616-0K010

9011908336

main90119-08336

9011908A29

main90119-08A29

9011910369

main90119-10369

9011910370

main90119-10370

90119T0222

main90119-T0222

9024107003

main90241-07003

9050120091

main90501-20091

9093003172

main90930-03172

90949T1015

main90949-T1015

90949T1024

main90949-T1024

9161160822

main91611-60822

47 parts on this diagram · 5 diagrams in section
