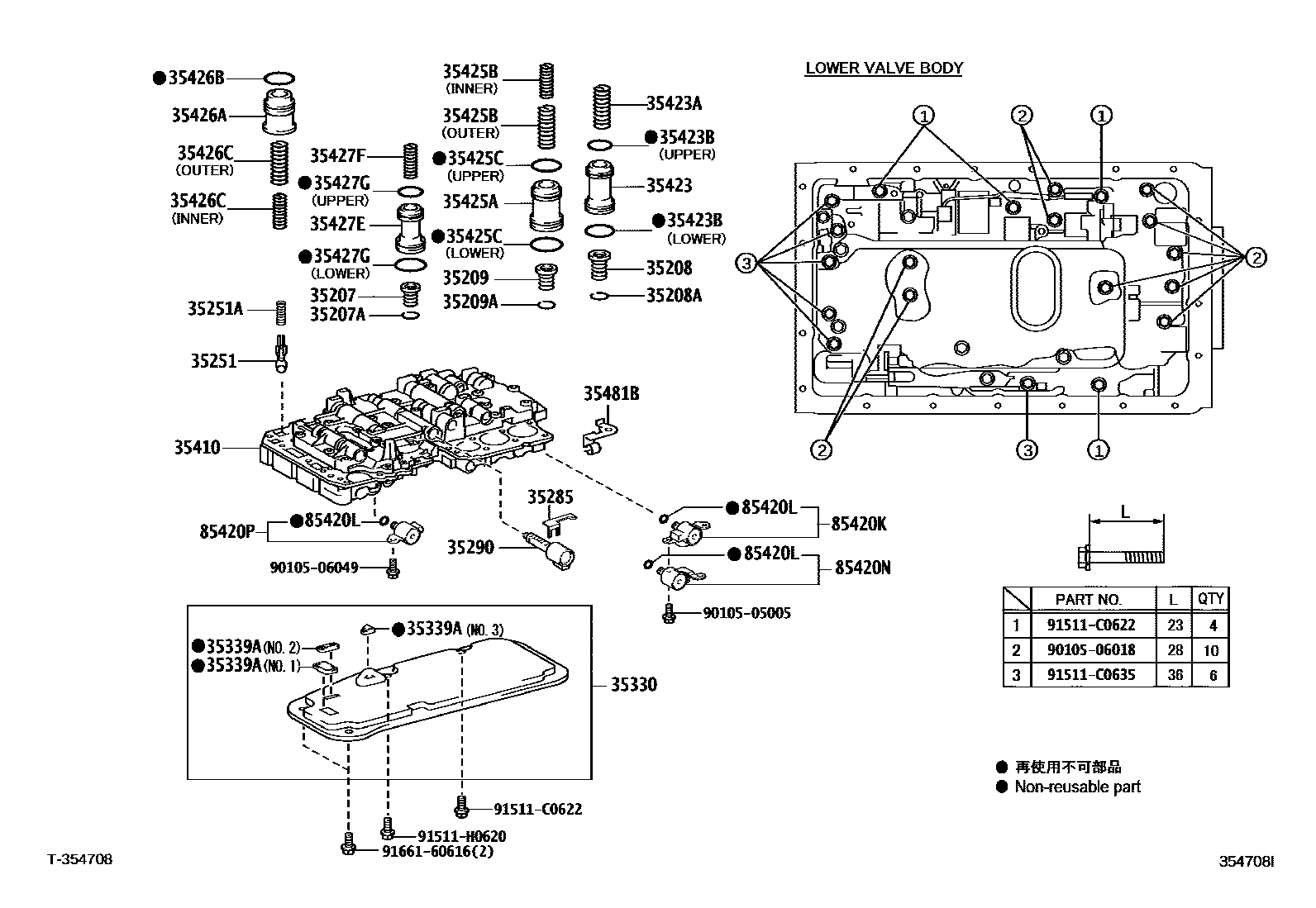

VALVE BODY & OIL STRAINER (ATM)

0001 1A340E,A340F,A343E,A343F 0002 1A750E,A750F 0003 1A340E,A340F,A343E,A343F 0004 1A750E,A750F

35207SPRING SUB-ASSY, B-0 ACCUMULATOR

main35207-22010iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

35207ARING, HOLE SNAP (FOR B-0 ACCUMULATOR SPRING)

main90521-22004iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

35208SPRING SUB-ASSY, B-2 ACCUMULATOR

main35208-22010iKUN51,61..4FC200808

main35208-30010iTGN51..4FC;KUN60,TGN61..SUVW..4FC;TGN61..IDSUV..4FC..(GCC,IDN)200501-200809

35208ARING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING)

main90521-22004iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

35209SPRING SUB-ASSY, C-2 ACCUMULATOR

main35209-22020iKUN51..(SUVW,THSUV)..4FC200501-200810

main35209-24010iKUN60..4FC200504-200808

main35209-50020iTGN51..4FC;TGN61..SUVW..4FC;TGN61..IDSUV..4FC..(GCC,IDN)200501-200809

35209ARING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING)

main90521-22004iKUN5#,6#,TGN51,61..4FC200808

35251BODY, CHECK BALL

main35251-30020iGGN60..SUVW..5FC;GGN50,KUN5#,6#,TGN51,61..4FC,5FC200808

35251ASPRING, COMPRESSION (FOR CHECK BALL BODY)

main90501-03005iKUN51..(SUVW,THSUV)..4FC;TGN61..IDSUV..4FC..(GCC,IDN);GGN50,TGN51..(4FC,5FC)..(ANCOM,GCC,GEN,IDN,MA,SA,TH);GGN60,KUN60,TGN61..SUVW..(4FC,5FC)..(ANCOM,GCC,IDN,PHL,TH200501-200903

35285PLATE, SOLENOID LOCK

main35285-24020iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

main35285-34010×2iGGN50..5FC;GGN60..SUVW..5FC200808

35290SOLENOID ASSY, LINE PRESSURE CONTROL

main35290-34010iGGN50..5FC;GGN60..ANCOM200611-200903

main35290-50010iGGN50,60..5FC200507-200611

main35290-71010iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

35330STRAINER ASSY, VALVE BODY OIL

main35330-60030iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

main35330-60050iGGN50..5FC;GGN60..ANCOM200507-200903

35339AGASKET, OIL STRAINER, NO.1

main35339-30080iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

NO.1

main35339-30090iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

NO.2

main35339-30100iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

NO.3

35410BODY ASSY, TRANSMISSION VALVE

main35410-60580iGGN60..GEN200808-201107

sub35410-35870

main35410-71010iTGN61..4FC200808-201107

main35410-71020iTGN51..4FC200501-200809

main35410-71030iKUN61..4FC200808-201108

main35410-71040iKUN51..(SUVW,THSUV)..4FC200501-200810

main35410-71050iKUN60..4FC200504-200808

main35410-71060iKUN50200809-201109

35423PISTON, B-2 ACCUMULATOR

main35423-30030iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

35423ASPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)

main90501-22015iTGN51..4FC;TGN61..SUVW..4FC;TGN61..IDSUV..4FC..(GCC,IDN)200501-200809

main90501-25026iKUN60..4FC200504-200808

main90501-25028iKUN51..(SUVW,THSUV)..4FC200501-200810

35423BRING, O (FOR B-2 ACCUMULATOR PISTON)

main90301-23010iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

UPPER

main90301-31010iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

LOWER

35425APISTON, C-2 ACCUMULATOR

main35425-30020iKUN5#,6#,TGN51,61..4FC200808

main35425-50020iGGN50..5FC;GGN60..ANCOM200608-200903

main35425-60060iGGN50,60..5FC200507-200608

35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

main90501-22015iKUN51..(SUVW,THSUV)..4FC200501-200810

OUTER

main90501-22062iGGN60..GEN200808-201107

main90501-23135iKUN50,60..4FC200808-201109

OUTER

main90501-24015iTGN51..4FC;TGN61..SUVW..4FC;TGN61..IDSUV..4FC..(GCC,IDN)200501-200809

OUTER

main90501-25027iKUN5#,6#,TGN51,61..4FC200808

INNER

35425CRING, O (FOR C-2 ACCUMULATOR PISTON)

main90301-20008iGGN60..GEN200808-201107

UPPER

main90301-25010iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

UPPER

main90301-28008iGGN50..5FC;GGN60..SUVW..5FC200808

LOWER

main90301-31010iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

LOWER

35426APISTON, C-0 ACCUMULATOR

main35426-40010iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

35426BRING, O (FOR C-0 ACCUMULATOR PISTON)

main90301-24010iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

35426CSPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON)

main90501-22008iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

INNER

main90501-23073iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

OUTER

35427EPISTON, B-0 ACCUMULATOR

main35427-30040iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

35427FSPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON)

main90501-21006iTGN51..4FC;TGN61..SUVW..4FC;TGN61..IDSUV..4FC..(GCC,IDN)200501-200809

main90501-23095iKUN5#,6#..4FC200808

35427GRING, O (FOR B-0 ACCUMULATOR PISTON)

main90301-20008iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

UPPER

main90301-26011iKUN5#,6#,TGN51,61..4FC200808

LOWER

35481BCLAMP, VALVE BODY WIRE HARNESS

main35481-24010iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

main35481-60010iGGN60..GEN200808-201107

85420KSOLENOID ASSY, TRANSMISSION

main35250-30050iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

85420LRING, O(FOR TRANSMISSION SOLENOID)

main90301-06004×3iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

85420NSOLENOID ASSY, TRANSMISSION

main35250-30070iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

85420PSOLENOID ASSY, TRANSMISSION

main35250-50030iKUN5#,6#,TGN51,61..4FC200808

9010505005

main90105-05005

9010506018

main90105-06018

9010506049

main90105-06049

91511C0622

main91511-C0622

91511C0635

main91511-C0635

91511H0620

main91511-H0620

9166160616

main91661-60616

37 parts on this diagram · 4 diagrams in section
