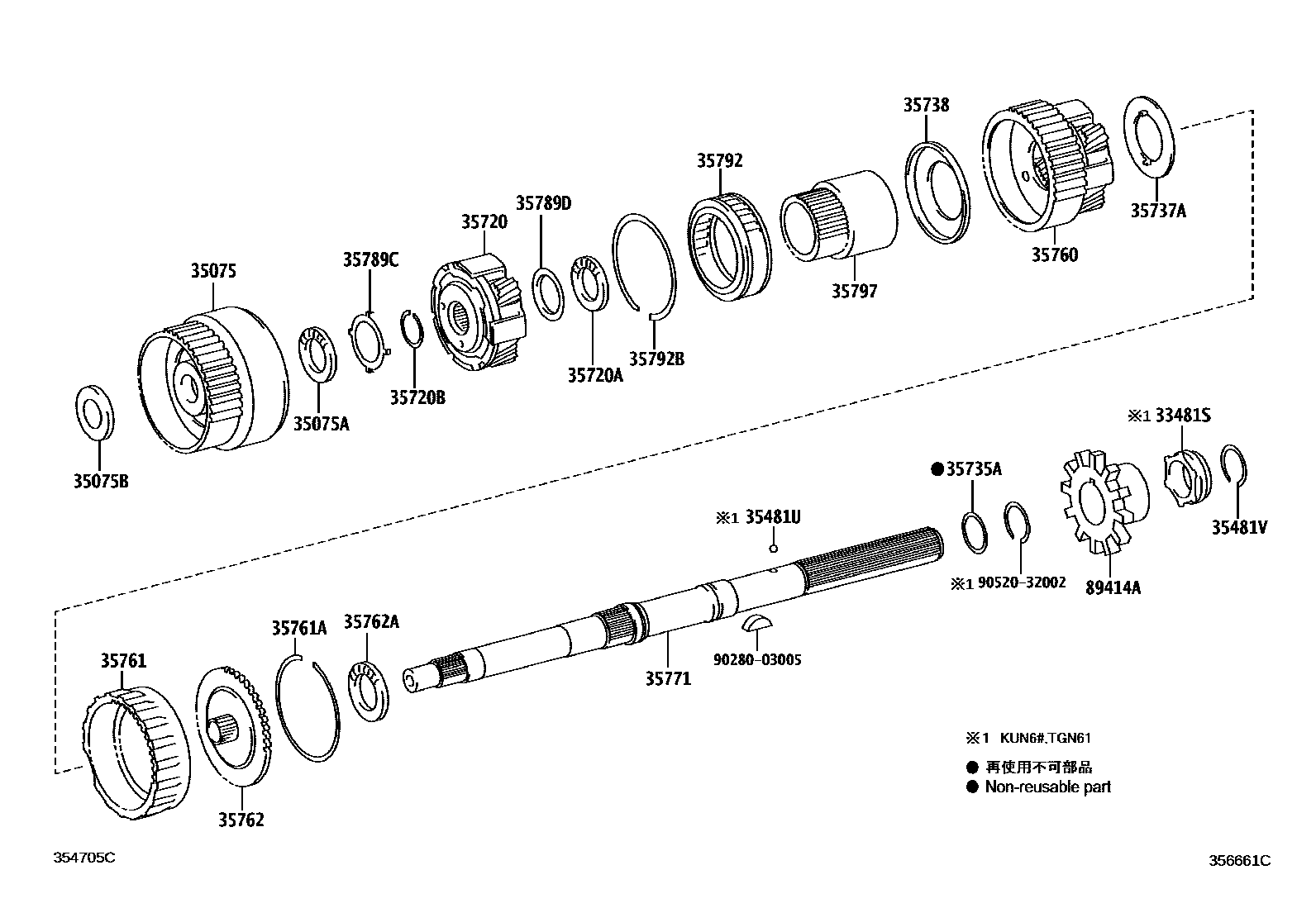

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

0001 1A340E,A340F,A343E,A343F 0002 1A750E,A750F

33481SGEAR, SPEEDOMETER DRIVE (ATM)

main33481-24010iKUN60..4FC200504-201108

N=6

main33481-30060iTGN61..4FC200504-201107

N=6

main33481-34020iGGN60..SUVW..5FC200602-201107

N=7

35075GEAR SUB-ASSY, FRONT PLANETARY RING

main35075-50010iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

35075ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY RING)

main90374-35004iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

35075BRACE, THRUST BEARING (FOR FRONT PLANETARY RING GEAR FRONT)

main35789-30120iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

35481UKEY OR BALL, SPEEDMETER DRIVE GEAR (ATM)

main90360-06004iKUN60,TGN61..4FC200504-201108

35481VRING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR)

main90520-28009iKUN6#,TGN61..4FC200504-201108

T=1.50,OD=33.8

main90520-29004iTGN51..4FC;KUN51..(SUVW,THSUV)..4FC200501-200810

T=1.50,OD=34.8

35720GEAR ASSY, FRONT PLANETARY

main35720-30080iTGN51..4FC;KUN60,TGN61..SUVW..4FC;TGN61..IDSUV..4FC..(GCC,IDN)200501-200809

main35720-35030iKUN51,61..4FC200501-200810

main35720-60070iGGN50..5FC;GGN60..SUVW..5FC200507-201107

35720ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR)

main90374-35001iKUN5#,6#,TGN51,61..4FC200501-200810

35720BRING, SHAFT SNAP (FOR FRONT PLANETARY GEAR)

main90520-24026iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

35735ARING, PLANETARY OUTPUT SHAFT OIL SEAL

main35735-30020iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

35737AWASHER, PLANETARY CARRIER THRUST, NO.1

main35737-30030iKUN5#,6#,TGN51,61..4FC200501-200810

main35737-60030iGGN50..5FC;GGN60..SUVW..5FC200507-201107

35738WASHER, PLANETARY CARRIER THRUST, NO.2

main35738-60030iGGN50..5FC;GGN60..ANCOM200507-201107

main35739-30030iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

35760GEAR ASSY, REAR PLANETARY

main35705-30010iKUN5#,6#,TGN51,61..4FC200501-200810

main35760-60061iGGN50..5FC200507-200905

main35760-60100iGGN50..5FC200905

main35760-71011iGGN60..ANCOM200602-200905

main35760-71020iGGN60..GEN200905-201107

35761GEAR, REAR PLANETARY RING

main35761-30020iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

main35761-60040iGGN60..GEN200507-201107

35761ARING, HOLE SNAP (FOR REAR PLANETARY RING GEAR)

main90521-99024iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

35762FLANGE, REAR PLANETARY RING GEAR

main35762-30040iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

35762ABEARING, THRUST NEEDLE ROLLER (FOR REAR PLANETARY FLANGE)

main90374-36001iGGN60..ANCOM200602-201107

main90374-38003iKUN5#,6#,TGN51,61..4FC200501-200810

35771SHAFT, OUTPUT

main35073-35030iTGN51..4FC;KUN51..(SUVW,THSUV)..4FC200501-200911

main35073-35060iKUN5#,TGN51..4FC200911

main35771-30040iKUN6#,TGN61..4FC200504-200911

main35771-30130iKUN6#,TGN61..4FC200911-201108

35789CRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR FRONT)

main35789-30080iKUN5#,6#,TGN51,61..4FC200501-200810

35789DRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR REAR)

main35789-30100iKUN5#,6#,TGN51,61..4FC200501-200810

35792CLUTCH, 1 WAY, NO.2

main35792-14020iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

35792BRING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)

main90521-87001iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

35797RACE, 1 WAY CLUTCH INNER

main35797-50010iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

89414AROTOR, SENSOR

main89414-35030iKUN60,TGN61..4FC200504-201108

main89414-60020iTGN51..4FC;KUN51..(SUVW,THSUV)..4FC200501-200810

9028003005

main90280-03005

9052032002

main90520-32002

26 parts on this diagram · 2 diagrams in section
