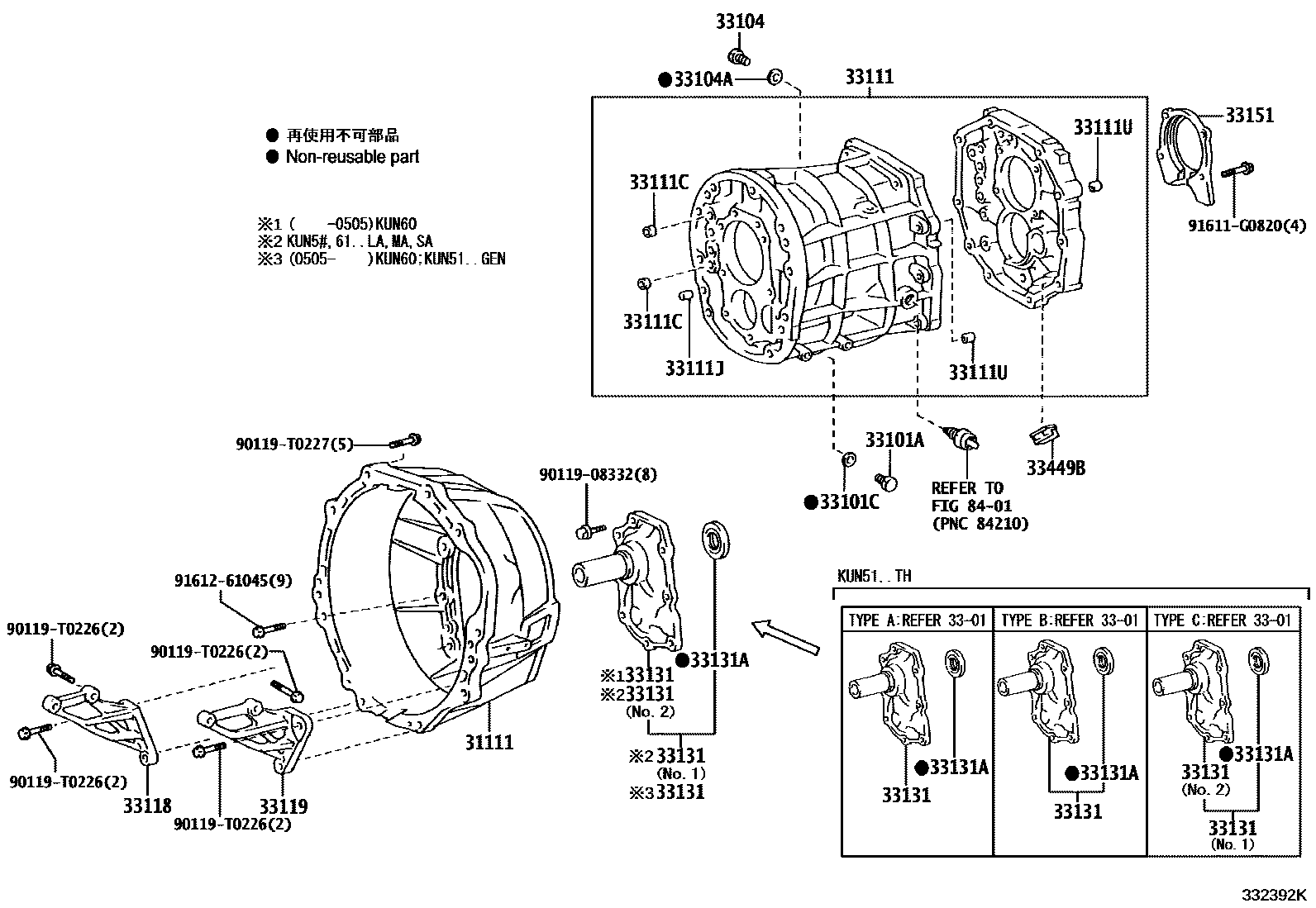

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1R151 0002 1R151,R151F 0003 1R150 0004 1R150,R150F 0005 1R150 0006 1R150,R150F 0007 1G58 0008 1G58

31111HOUSING, CLUTCH

main31111-0K010iKUN5#,61..SUVW..5F200501-201204

TYPE C:REFER 33-01

main31111-0K010iKUN5#,61..5F..(LA,MA,SA)200808-200810

main31111-0K020iTGN51,61..SUVW..5F..GCC200808-201110

TYPE C:REFER 33-01

main31111-0K020iTGN51,61..LA,SA;TGN51,61..IDSUV..5F200509-200810

main31111-0K050iGGN50..IDSUV..5F200602-200901

TYPE C:REFER 33-01

main31111-0K050iGGN60..5F200602-200903

main31111-0K050iGGN50..LHD..5F200808-201204

TYPE D:REFER 33-01

main31111-0K060iKUN51,60..(SUVW,THSUV)..5F..(GEN,IDN,PHL,TH)200505-201107

TYPE B:REFER 33-01

sub31111-0K061

main31111-0K070iTGN51..SUVW..5F..GCC200507-201107

TYPE B:REFER 33-01

main31111-0K070iTGN61..SUVW..5F..GCC200708-200808

main31111-0K080iGGN50..(SUVW,THSUV)..5F..(GCC,GEN)200507-201107

TYPE B:REFER 33-01

main31111-0K090iKUN51,6#..5F200808-201204

TYPE D:REFER 33-01

main31111-0K100iTGN51,61..5F200808-201110

TYPE D:REFER 33-01

main31111-35101iKUN51..5F..TH200504-201107

TYPE A:REFER 33-01

sub31111-35102

main31111-60280iLAN50200605-200905

sub31111-60281

sub31126-60110

main31111-60281iLAN50200905-201108

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iKUN60,TGN51,61..IDSUV..5F;KUN51,6#,TGN51,61..5F..(IND,LA,SA,TH,VN)200501-201204

TYPE C:REFER 33-01

main90341-18006iKUN60..5F200504-201107

TYPE A:REFER 33-01

main90341-18006iGGN50,KUN51,60,TGN51..(SUVW,THSUV)..5F..(GCC,GEN,IDN,PHL)200505-201107

TYPE B:REFER 33-01

main90341-18006iKUN51..5F..TH200608-200808

TYPE B:REFER 33-01,TYPE A:REFER 33-01

main90341-18006iTGN51..SA;TGN51..IDSUV..5F;GGN60,LAN50,TGN61..5F200509-201108

main90341-18006iGGN50..LHD..5F;KUN51,6#,TGN51,61..5F200808-201204

TYPE D:REFER 33-01

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iGGN50..IDSUV..5F;GGN50,KUN5#,61..5F..(ANCOM,LA,MA,SA,TH)200501-201204

TYPE C:REFER 33-01

main90430-18008iGGN50,KUN51,60,TGN51..(SUVW,THSUV)..5F..(GCC,GEN,IDN,PHL)200505-201107

TYPE B:REFER 33-01

main90430-18008iKUN51..5F..TH200608-200808

TYPE B:REFER 33-01,TYPE A:REFER 33-01

main90430-18008iTGN51..SA;TGN51..IDSUV..5F;GGN60,LAN50,TGN61..5F200509-201108

main90430-18008iKUN60..5F200504-201107

TYPE A:REFER 33-01

main90430-18008iGGN50..LHD..5F;KUN51,6#,TGN51,61..5F200808-201204

TYPE D:REFER 33-01

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iGGN50,KUN51,60,TGN51,61..(SUVW,THSUV)..5F..(GCC,GEN,IDN,PHL,TH)200504-201107

TYPE A:REFER 33-01

main90341-18006iGGN50..IDSUV..5F;GGN50,KUN5#,61..5F..(ANCOM,LA,MA,SA,TH)200501-201204

TYPE C:REFER 33-01

main90341-18006iGGN50,KUN51,60,TGN51..(SUVW,THSUV)..5F..(GCC,GEN,IDN,PHL)200505-201107

TYPE B:REFER 33-01

main90341-18006iKUN51..5F..TH200608-200808

TYPE B:REFER 33-01,TYPE A:REFER 33-01

main90341-18006iTGN51..SA;GGN60,TGN61..5F;TGN51..IDSUV..5F200509-200903

main90341-18006iGGN50..LHD..5F;KUN51,6#,TGN51,61..5F200808-201204

TYPE D:REFER 33-01

main90341-18057iLAN50200605-201108

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iGGN50..IDSUV..5F;GGN50,KUN5#,61..5F..(ANCOM,LA,MA,SA,TH)200501-201204

TYPE C:REFER 33-01

main90430-18008iGGN50,KUN51,60,TGN51..(SUVW,THSUV)..5F..(GCC,GEN,IDN,PHL)200505-201107

TYPE B:REFER 33-01

main90430-18008iKUN51..5F..TH200608-200808

TYPE B:REFER 33-01,TYPE A:REFER 33-01

main90430-18008iTGN51..SA;TGN51..IDSUV..5F;GGN60,LAN50,TGN61..5F200509-201108

main90430-18008iKUN51,60..5F..TH200504-201107

TYPE A:REFER 33-01

main90430-18008iGGN50..LHD..5F;KUN51,6#,TGN51,61..5F200808-201204

TYPE D:REFER 33-01

33111CASE, MANUAL TRANSMISSION

main33101-0K010iTGN51,61..SUVW..5F..GCC200501-201204

TYPE C:REFER 33-01

main33101-0K010iGGN50,KUN5#,61..5F..(ANCOM,LA,MA,SA)200509-200903

main33101-0K030iGGN50..LHD..5F;KUN51,6#,TGN51,61..5F200808-201204

TYPE D:REFER 33-01

main33101-0K040iGGN50,KUN51,60,TGN51,61..(SUVW,THSUV)..5F..(GCC,GEN,IDN,PHL,TH)200505-201107

TYPE B:REFER 33-01

main33101-0K040iTGN61..SUVW..5F..GCC200708-200808

main33101-35051iLAN50200605-201108

sub33101-71020

main33101-60040iKUN60..5F200504-201107

TYPE A:REFER 33-01

sub33101-60041

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004iKUN60..5F200504-201107

OD=14,TYPE A:REFER 33-01

main90331-14004iGGN50,KUN60,TGN51..5F200505-200508

OD=14,TYPE B:REFER 33-01

main90331-14004iGGN50,KUN5#,61..5F..(ANCOM,LA,MA,SA,TH)200501-200606

OD=14,TYPE C:REFER 33-01

main90331-14004iGGN60,TGN51,61..LA,SA200509-201108

OD=14

main96411-41800iKUN51,60..5F..TH200505-201107

OD=18,TYPE B:REFER 33-01

main96411-41800iGGN50,KUN51,60,TGN51,61..(SUVW,THSUV)..5F..(GCC,GEN,IDN,PHL,TH)200504-201107

OD=18,TYPE A:REFER 33-01

main96411-41800iKUN51..5F..TH200608-200808

OD=18,TYPE B:REFER 33-01,TYPE A:REFER 33-01

main96411-41800iKUN61,TGN61..5F..LA200808-201204

OD=18,TYPE D:REFER 33-01

main96411-41800iTGN51..SA;GGN60,TGN61..5F;TGN51..IDSUV..5F200509-200903

OD=18

main96411-41800iGGN50..IDSUV..5F;GGN50,KUN5#,61..5F..(ANCOM,LA,MA,SA,TH)200501-200808

OD=18,TYPE C:REFER 33-01

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002iGGN50..LHD..5F;KUN51,6#,TGN51,61..5F200501-201204

L=16,OD=12,TYPE C:REFER 33-01

main90250-12002iKUN60,TGN51,61..IDSUV..5F;KUN51,6#,TGN51,61..5F..(IND,LA,SA,TH,VN)200808-201204

L=16,OD=12,TYPE D:REFER 33-01

main90250-12002iKUN60..5F200504-201107

L=16,OD=12,TYPE A:REFER 33-01

main90250-12002iGGN50,KUN51,60,TGN51..(SUVW,THSUV)..5F..(GCC,GEN,IDN,PHL)200505-200902

L=16,OD=12,TYPE B:REFER 33-01

main90250-12002iKUN51..5F..TH200608-200808

L=16,OD=12,TYPE B:REFER 33-01,TYPE A:REFER 33-01

main90250-12002iLAN50200509-201108

L=16,OD=12

main90250-T0020iGGN50,KUN51,60,TGN51,61..(SUVW,THSUV)..5F..(GCC,GEN,IDN,PHL,TH)200902-201107

L=16,OD=12,TYPE B:REFER 33-01

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-15001iKUN51,60..5F..TH200505-201107

L=14,OD=15,TYPE B:REFER 33-01

main90253-15001iKUN60..5F200504-201107

L=14,OD=15,TYPE A:REFER 33-01

main90253-15001iGGN50..IDSUV..5F;GGN50,KUN5#,61..5F..(ANCOM,LA,MA,SA,TH)200501-201204

L=14,OD=15,TYPE C:REFER 33-01

main90253-15001iKUN51..5F..TH200608-200808

L=14,OD=15,TYPE B:REFER 33-01,TYPE A:REFER 33-01

main90253-15001iLAN50200509-201108

L=14,OD=15

main90253-15001iGGN50..LHD..5F;KUN51,6#,TGN51,61..5F200808-201204

L=14,OD=15,TYPE D:REFER 33-01

33118PLATE, STIFFENER, RH(MTM)

main33118-04020iKUN51,6#..(SUVW,THSUV)..5F200501-200810

main33118-0K010iLAN50200605-201108

main33118-0K020iKUN60..IDSUV..5F200808-201107

33119PLATE, STIFFENER, LH(MTM)

main33119-0K010iLAN50200605-201108

main33119-0K020iKUN51,6#..(SUVW,THSUV)..5F200501-200810

main33119-0K030iKUN60..IDSUV..5F200808-201107

33131RETAINER, BEARING, FRONT(MTM)

main33018-0K010iKUN51,60..(SUVW,THSUV)..5F..(GEN,IDN,PHL)200501-201204

T/P C:SEE 33-01,NO.1

sub33018-0K011

main33018-0K010iTGN51..SA200509-200810

NO.1

sub33018-0K011

main33018-0K020iGGN50..IDSUV..5F;GGN50..5F..(ANCOM,SA)200602-200901

T/P C:SEE 33-01,NO.1

sub33018-0K021

main33018-0K020iGGN50..5F..(ANCOM,SA)200808-200903

sub33018-0K021

main33018-0K020iGGN60..SA200602-200810

NO.1

sub33018-0K021

main33018-0K040iKUN51,60,TGN51..(SUVW,THSUV)..5F..(GCC,GEN,IDN,PHL)200505-201107

TYPE B:REFER 33-01

sub33018-0K041

main33018-0K040iTGN61..SUVW..5F..GCC200708-200808

sub33018-0K041

main33018-0K050iGGN50..(SUVW,THSUV)..5F..(GCC,GEN)200507-201107

TYPE B:REFER 33-01

sub33018-0K051

main33018-0K070iKUN51,6#,TGN51,61..5F200808-201202

TYPE D:REFER 33-01

sub33018-0K071

main33018-0K080iGGN50..LHD..5F200808-201204

TYPE D:REFER 33-01

sub33018-0K081

main33131-0K010iTGN51,61..SUVW..5F..GCC200501-201204

T/P C:SEE 33-01,NO.2

sub33131-0K011

main33131-0K010iTGN61..LA;TGN51,61..IDSUV..5F200509-200810

NO.2

sub33131-0K011

main33131-0K020iGGN50..IDSUV..5F;GGN50..5F..(ANCOM,SA)200602-200901

T/P C:SEE 33-01,NO.2

sub33131-0K021

main33131-0K020iGGN50..IDSUV..5F;GGN50..5F..(ANCOM,SA)200602-200808

NO.2

sub33131-0K021

main33131-26020iLAN50200605-201108

main33131-35031iKUN51..5F..TH200504-201107

TYPE A:REFER 33-01

sub33131-35032

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30014iLAN50200605-201108

main90311-32012iKUN51..5F..TH200504-200706

TYPE A:REFER 33-01

main90311-32022iKUN51,60..5F..TH200706-201107

TYPE A:REFER 33-01

main90311-T0017iKUN51,60..(SUVW,THSUV)..5F..(GEN,IDN,PHL)200501-201204

TYPE C:REFER 33-01

main90311-T0017iGGN50..LHD..5F;KUN51,6#,TGN51,61..5F200808-201204

TYPE D:REFER 33-01

main90311-T0017iTGN51,61..IDSUV..5F;GGN60,TGN51,61..5F..(LA,SA)200509-200903

main90311-T0027iTGN61..SUVW..5F..GCC200708-200808

main90311-T0027iGGN50,KUN51,60,TGN51..(SUVW,THSUV)..5F..(GCC,GEN,IDN,PHL)200505-201107

TYPE B:REFER 33-01

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33151-0K010iTGN51,61..SUVW..5F..GCC200501-201204

TYPE C:REFER 33-01

main33151-0K010iTGN51,61..IDSUV..5F;GGN60,TGN51,61..5F..(LA,SA)200509-200903

main33151-0K030iGGN50,KUN51,60,TGN51..(SUVW,THSUV)..5F..(GCC,GEN,IDN,PHL)200505-201107

TYPE B:REFER 33-01

main33151-0K030iTGN61..SUVW..5F..GCC200708-200808

main33151-0K040iGGN50..LHD..5F;KUN51,6#,TGN51,61..5F200808-201204

TYPE D:REFER 33-01

main33151-35020iKUN51..5F..TH200504-201107

TYPE A:REFER 33-01

main33151-35030iLAN50200605-201108

33449BMAGNET, TRANSMISSION

main33449-26010iLAN50200605-201108

main33449-35030iGGN50,KUN51,60,TGN51..(SUVW,THSUV)..5F..(GCC,GEN,IDN,PHL)200505-201107

TYPE B:REFER 33-01

main33449-35030iKUN51..5F..TH200608-200808

TYPE B:REFER 33-01,TYPE A:REFER 33-01

main33449-35030iKUN60..5F200504-201107

TYPE A:REFER 33-01

main33449-35030iTGN51..SA;GGN60,TGN61..5F;TGN51..IDSUV..5F200509-200903

main33449-35030iGGN50..IDSUV..5F200501-201204

TYPE C:REFER 33-01

main33449-35030iGGN50..LHD..5F;KUN51,6#,TGN51,61..5F200808-201204

TYPE D:REFER 33-01

8401

9011908332

main90119-08332

90119T0226

main90119-T0226

90119T0227

main90119-T0227

91611G0820

main91611-G0820

9161261045

main91612-61045

21 parts on this diagram · 8 diagrams in section
