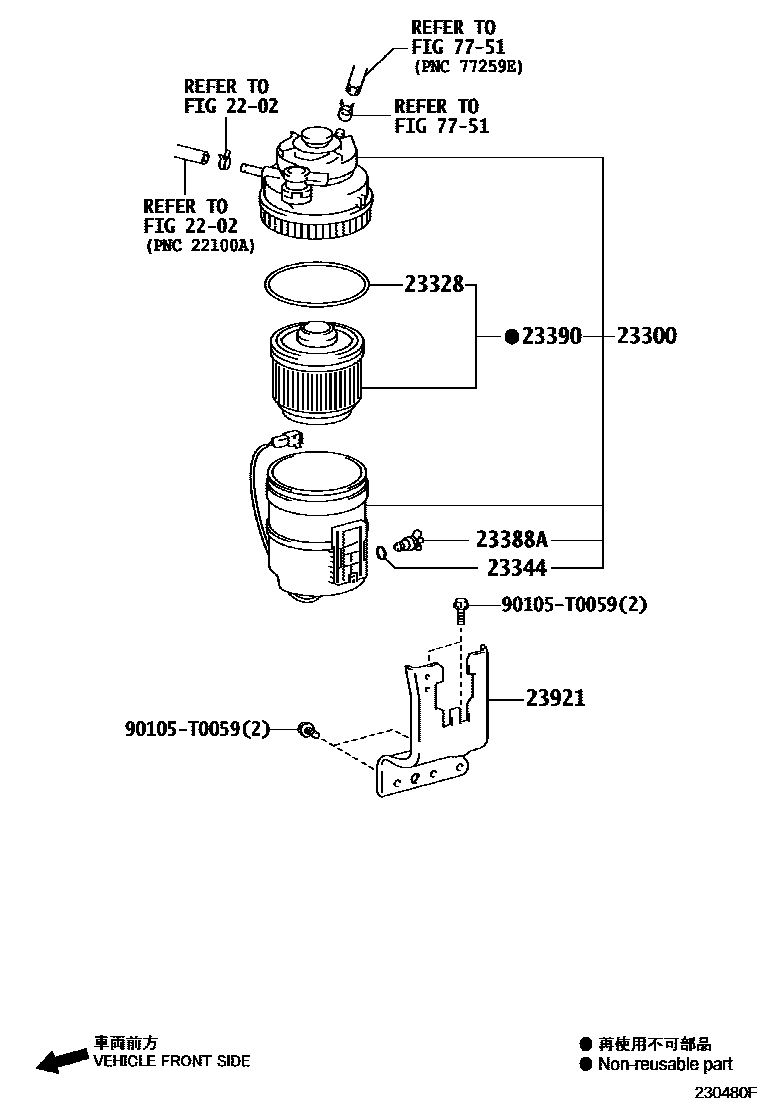

FUEL FILTER

0001 1 0002 1

2202

23300FILTER ASSY, FUEL

main23300-0L020i5LE..LAN50200501-200910

sub23300-0L041

main23300-0L041i1KDFTV..KUN51,61..LA200911-201202

sub23300-0L042

main23300-0L040i1KDFTV..KUN51..LA200904-200911

BRAZIL SPEC

sub23300-0L041

23328GASKET(FOR FUEL FILTER)

main23344-0L010i1KDFTV,2KDFTV..KUN50,61..5F;1KDFTV,2KDFTV..KUN51,60..SUVW,THSUV200501-201108

23344GASKET, CLAMPING NUT(FOR FUEL FILTER)

main23344-0L041i1KDFTV,2KDFTV..KUN50,61..5F;1KDFTV,2KDFTV..KUN51,60..SUVW,THSUV200501-201108

23388APLUG, FUEL FILTER DRAIN

main23388-0L041i5LE..LAN50200501-201108

23390ELEMENT ASSY, FUEL FILTER

main23390-0L010i5LE..LAN50200501-200911

sub23390-0L041

main23390-0L041i5LE..LAN50200911-201108

main23390-0L040i1KDFTV..KUN51..LA200904-200911

BRAZIL SPEC

sub23390-0L041

23921SUPPORT, FUEL FILTER

main23921-0L010i1KDFTV,2KDFTV..KUN50,61..4FC..(MA,TH);1KDFTV,2KDFTV..KUN51,60..(SUVW,THSUV)..(GEN,IDN,PHL,TH,VN)200501-200809

main23921-0L020i1KDFTV,2KDFTV..KUN51,60..IDSUV200808-201107

main23921-0L030i1KDFTV..KUN51..IND200908

main23921-0L040i5LE..LAN50200602-201108

main23921-0L050i1KDFTV..KUN51,61..LA200509-200810

sub23921-0L010

7751

90105T0059

main90105-T0059

9 parts on this diagram · 2 diagrams in section
