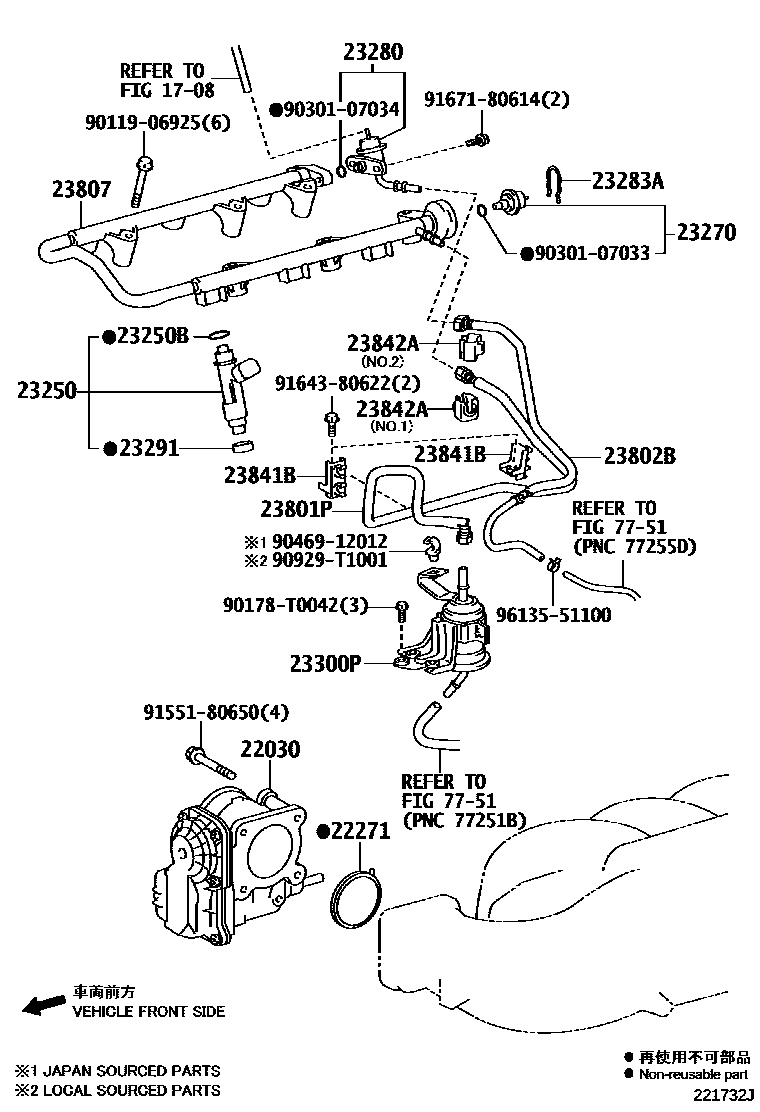

FUEL INJECTION SYSTEM

0001 1 0002 1

1708

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0C020i2TRFE..TGN51,61200808-201204

*191

main22030-31010i1GRFE..GGN60..5FC;1GRFE..GGN50..LHD;1GRFE..GGN50..5FC..SA200808-201204

main22030-75020i2TRFE..TGN51..SA200609-200810

*125

22271GASKET, THROTTLE BODY

main22271-0C020i2TRFE..TGN51,61200808-201110

main22271-0C021i2TRFE..TGN51201110-201202

main22271-31012i1GRFE..GGN60..5FC;1GRFE..GGN50..LHD;1GRFE..GGN50..5FC..SA200808-201204

23250INJECTOR ASSY, FUEL

main23209-09045×4i2TRFE..TGN51,61..GCC,IDN,LA,MA,PHL,TH200501-200801

main23209-09190×4i2TRFE..TGN51,61..IDSUV..GCC;2TRFE..TGN51,61..SUVW..(GCC,IDN,PHL)201008-201107

(L)

main23209-39015×6i1GRFE..GGN50,60200507-200711

DENSO

main23209-39075×6i1GRFE..GGN50..LHD;1GRFE..GGN50..5FC..SA;1GRFE..GGN60..SUVW..5FC200808

main23209-79155×4i2TRFE..TGN61..LA200810-201006

(J)

sub23209-79205

main23209-09055×4supersedes 23209-79155i2TRFE..TGN51..SA200605-200810

LEADED GASOLINE

23250BRING, O(FOR FUEL INJECTOR)

main90301-07024×4i2TRFE..TGN51,61200501-200607

main90301-07033×6i1GRFE..GGN50;1GRFE..GGN60..5F;1GRFE..GGN60..ANCOM200507-200903

main90301-07037×4i2TRFE..TGN51;2TRFE..TGN61..SUVW;2TRFE..TGN61..IDSUV..(GCC,IDN)200607-200810

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-31010i1GRFE..GGN50..LHD..5F200808-200908

main23270-31060i1GRFE..GGN50,60..5FC200901-200908

main23270-31080i1GRFE..GGN60..GEN200908-201107

main23270-31140i1GRFE..GGN50,60201201-201204

main23270-75010i2TRFE..TGN51,61..SR;2TRFE..TGN61..5F..LA200808-201204

*191

sub23270-75050

main23270-75040i2TRFE..TGN61..5F..LA200810-201009

*191

23280REGULATOR ASSY, FUEL PRESSURE

main23280-31010i1GRFE..GGN60..5FC;1GRFE..GGN50..5FC..(GCC,GEN,SA)200808-200901

main23280-31040i1GRFE..GGN60..GEN200901-201107

main23280-31041i1GRFE..GGN50,60..5FC201201-201204

main23280-75040i2TRFE..TGN51,61..SR;2TRFE..TGN61..5F..LA200808-201204

*191

sub23280-75130

main23280-75080i2TRFE..TGN61..LA200810-201006

*125

23283AHOLDER, FUEL PRESSURE REGULATOR

main23283-31010i1GRFE..GGN50..LHD;1GRFE..GGN50..5FC..SA;1GRFE..GGN60..SUVW..5FC200808

23291INSULATOR, INJECTOR VIBRATION

main23291-0C010×4i2TRFE..TGN51;2TRFE..TGN61..SUVW;2TRFE..TGN61..IDSUV..(GCC,IDN)200501-200810

(L)

main23291-23010×6i1GRFE..GGN50..LHD;1GRFE..GGN50..5FC..SA;1GRFE..GGN60..SUVW..5FC200808

main23291-73010×4i2TRFE..TGN51..SA200609-200810

(J)

23300PFILTER, FUEL(FOR EFI)

main23300-31120i1GRFE..GGN50;1GRFE..GGN60..5F;1GRFE..GGN60..ANCOM200507-200903

main23300-75140i2TRFE..TGN51,61..GCC,LA,MA,PHL,SA,TH,VN200808-201202

main23300-75160i2TRFE..TGN51,61..IDN200702-200808

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-31110i1GRFE..GGN60..GEN200808-201107

23802BPIPE SUB-ASSY, FUEL, NO.2

main23802-31050i1GRFE..GGN60..5FC;1GRFE..GGN50..5FC..SA;1GRFE..GGN50..ANCOM,GCC,GEN200808-201204

main23802-31130i1GRFE..GGN50..LA200903-201110

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-0C010i2TRFE..TGN61..5F..LA;2TRFE..TGN51,61..GCC,IDN,MA,PHL,TH,VN200808-201112

*191

sub23807-0C012

main23807-0C020i2TRFE..TGN51..SA201105-201108

*191

main23807-31010i1GRFE..GGN60..GEN200808-201107

main23807-75050i2TRFE..TGN51201112-201204

*191,(J)

sub23807-75052

main23807-75080i2TRFE..TGN61..5F..LA200810-201009

*191

sub23807-75082

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-31030×2i1GRFE..GGN60..GEN200808-201107

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-31020i1GRFE..GGN50;1GRFE..GGN60..5F;1GRFE..GGN60..ANCOM200507-200903

NO.1

main23842-31030i1GRFE..GGN60..GEN200808-201107

NO.2

7751

9011906925

main90119-06925

90178T0042

main90178-T0042

9030107033

main90301-07033

9030107034

main90301-07034

9046912012

main90469-12012

90929T1001

main90929-T1001

9155180650

main91551-80650

9164380622

main91643-80622

9167180614

main91671-80614

9613551100

main96135-51100

26 parts on this diagram · 2 diagrams in section
