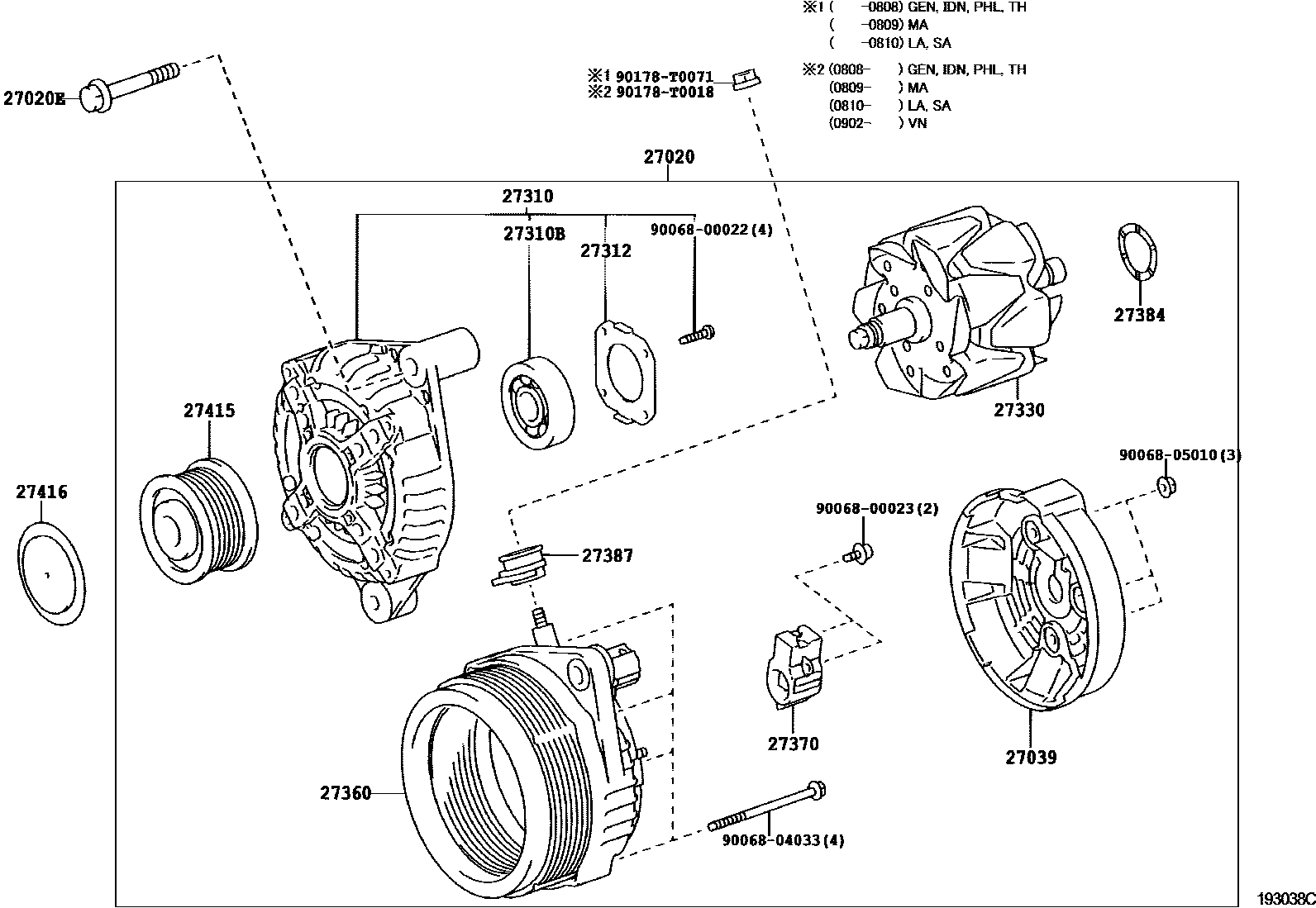

ALTERNATOR

0001 112V 80A 0004 112V 80A 0005 112V 80A, 12V 90A 0008 112V 90A 0010 112V 80A 0012 112V 80A 0014 112V 70A 0015 112V 80A

27020ALTERNATOR ASSY

main27060-0C020i2TRFE..TGN51;2TRFE..TGN61..SUVW;2TRFE..TGN61..IDSUV..(GCC,IDN)200501-200810

12V 80A

main27060-0C021i2TRFE..TGN51,61201003-201204

12V 80A

main27060-0L020i1KDFTV,2KDFTV..KUN5#,60..IDN,MA,PHL,TH200501-200612

12V 80A

sub27416-30010

main27060-0L021i1KDFTV,2KDFTV..KUN50,61..4FC..(MA,TH);1KDFTV,2KDFTV..KUN51,60..GEN,IDN,PHL,TH,VN200808-200912

12V 80A

main27060-0L022i2KDFTV..KUN50201001-201107

12V 80A

main27060-0L040i1KDFTV..KUN51,61..LA200810-201204

12V 80A

main27060-0L060i1KDFTV..KUN51,61..SA200810-201108

12V 80A

main27060-0L072i1KDFTV..KUN51..IND200908-201204

12V 80A

sub27060-0L250

main27060-0P100i1GRFE..GGN50,60..SA200810-201108

12V 90A

main27060-0P120i1GRFE..GGN50,60..ANCOM,LA200812-201204

12V 90A

main27060-31010i1GRFE..GGN50,60..GCC,GEN200808-200910

12V 80A

main27060-31011i1GRFE..GGN50,60..GCC,GEN200911-201107

12V 80A

main27060-54360i5LE..LAN50200810-201108

12V 70A

27020EBOLT(FOR ALTERNATOR)

main90105-10092i1KDFTV,2KDFTV..KUN50,61..5F;1KDFTV,2KDFTV..KUN51,60..SUVW,THSUV200501-200810

main90105-10287i5LE..LAN50200810-201108

main90105-T0074i2KDFTV..KUN50..4FC;1KDFTV,2KDFTV..KUN51,6#200808

main90105-T0127i2TRFE..TGN51;2TRFE..TGN61..SUVW;2TRFE..TGN61..IDSUV..(GCC,IDN)200501-200810

main91672-81065×2i1GRFE..GGN50..LHD;1GRFE..GGN50..5FC..SA;1GRFE..GGN60..SUVW..5FC200808

27039COVER, ALTERNATOR REAR END

main27039-0C020i2TRFE..TGN51,61200808-201202

main27039-0L020i2KDFTV..KUN50..4FC200808-201107

main27039-0L030i1KDFTV..KUN51,61..LA200509-200602

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-0C020i2TRFE..TGN51;2TRFE..TGN61..SUVW;2TRFE..TGN61..IDSUV..(GCC,IDN)200501-200810

sub27310-0C040

main27310-0C021i2TRFE..TGN51,61201003-201202

main27310-0L020i1KDFTV,2KDFTV..KUN50,61..4FC..(MA,TH);1KDFTV,2KDFTV..KUN51,60..GEN,IDN,PHL,TH,VN200808-201001

main27310-0L021i2KDFTV..KUN50201001-201107

main27310-0L030i1KDFTV..KUN51,61..LA200810-201110

main27310-0P110i1GRFE..GGN50,60..ANCOM,LA200812-201204

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90068-10024i1KDFTV,2KDFTV..KUN50,61..4FC..(MA,TH);1KDFTV,2KDFTV..KUN51,60..GEN,IDN,PHL,TH,VN200808-201001

main90068-10029i1KDFTV,2KDFTV..KUN51,6#..GEN,IDN,PHL,TH,VN201001-201202

main90069-40000i1KDFTV..KUN51,61..LA200509-200602

27312PLATE, RETAINER

main27312-0C020i2TRFE..TGN51;2TRFE..TGN61..SUVW;2TRFE..TGN61..IDSUV..(GCC,IDN)200501-200810

main27312-0L030i1KDFTV..KUN51,61..LA200509-200602

27330ROTOR ASSY, ALTERNATOR

main27330-0C020i2TRFE..TGN51,61200501-200703

main27330-0C030i1KDFTV..KUN51..IND200908-201201

main27330-0L030i1KDFTV..KUN51,61..LA200810-201110

main27330-0L050i1KDFTV..KUN51,61..SA200810-201108

main27330-0M040i2KDFTV..KUN50..4FC200808-201107

main27330-0P100i1GRFE..GGN50,60..SA200810-201108

main27330-0P110i1GRFE..GGN50,60..ANCOM,LA200812-201204

main27330-30130i1GRFE..GGN50,60..GCC,GEN200904-201107

main27330-62220i1GRFE..GGN50..SA;1GRFE..GGN60..5F200604-200812

main27330-64190i5LE..LAN50200810-201108

27360COIL ASSY, ALTERNATOR

main27360-0C020i2TRFE..TGN51,61200808-201003

sub27360-0C040

main27360-0C021i2TRFE..TGN51,61201003-201204

main27360-0L020i1KDFTV,2KDFTV..KUN50,61..4FC..(MA,TH);1KDFTV,2KDFTV..KUN51,60..GEN,IDN,PHL,TH,VN200808-201001

main27360-0L021i2KDFTV..KUN50201001-201107

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-0C020i2KDFTV..KUN50..4FC200808-201107

main27370-23120i1KDFTV..KUN51..IND200908-201204

main27370-75060i1GRFE..GGN60..GEN200808-201107

27384WASHER

main27384-0C020i2TRFE..TGN51;2TRFE..TGN61..SUVW;2TRFE..TGN61..IDSUV..(GCC,IDN)200501-200810

27387INSULATOR, TERMINAL

main27387-0C020i2KDFTV..KUN50..4FC200808-201107

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0L010i1KDFTV,2KDFTV..KUN5#,60..IDN,MA,PHL,TH200501-200612

main27415-0L020i1KDFTV..KUN51,61..SA200509-200604

main27415-0L030i1KDFTV,2KDFTV..KUN50,61..5F;1KDFTV,2KDFTV..KUN51,60..SUVW,THSUV200701-200810

main27415-0L040i1KDFTV..KUN51,61..LA,SA200810-201110

27416CAP, ALTERNATOR PULLEY

main27416-0L010i1KDFTV,2KDFTV..KUN5#,60..IDN,MA,PHL,TH200501-200701

main27416-0L020i1KDFTV..KUN51,61..SA200509-200604

main27416-0L030i1KDFTV,2KDFTV..KUN50,61..5F;1KDFTV,2KDFTV..KUN51,60..SUVW,THSUV200701-200810

main27416-33010i1KDFTV..KUN51,61..LA,SA200810

9006800022

main90068-00022

9006800023

main90068-00023

9006804033

main90068-04033

9006805010

main90068-05010

90178T0018

main90178-T0018

90178T0071

main90178-T0071

19 parts on this diagram · 8 diagrams in section
