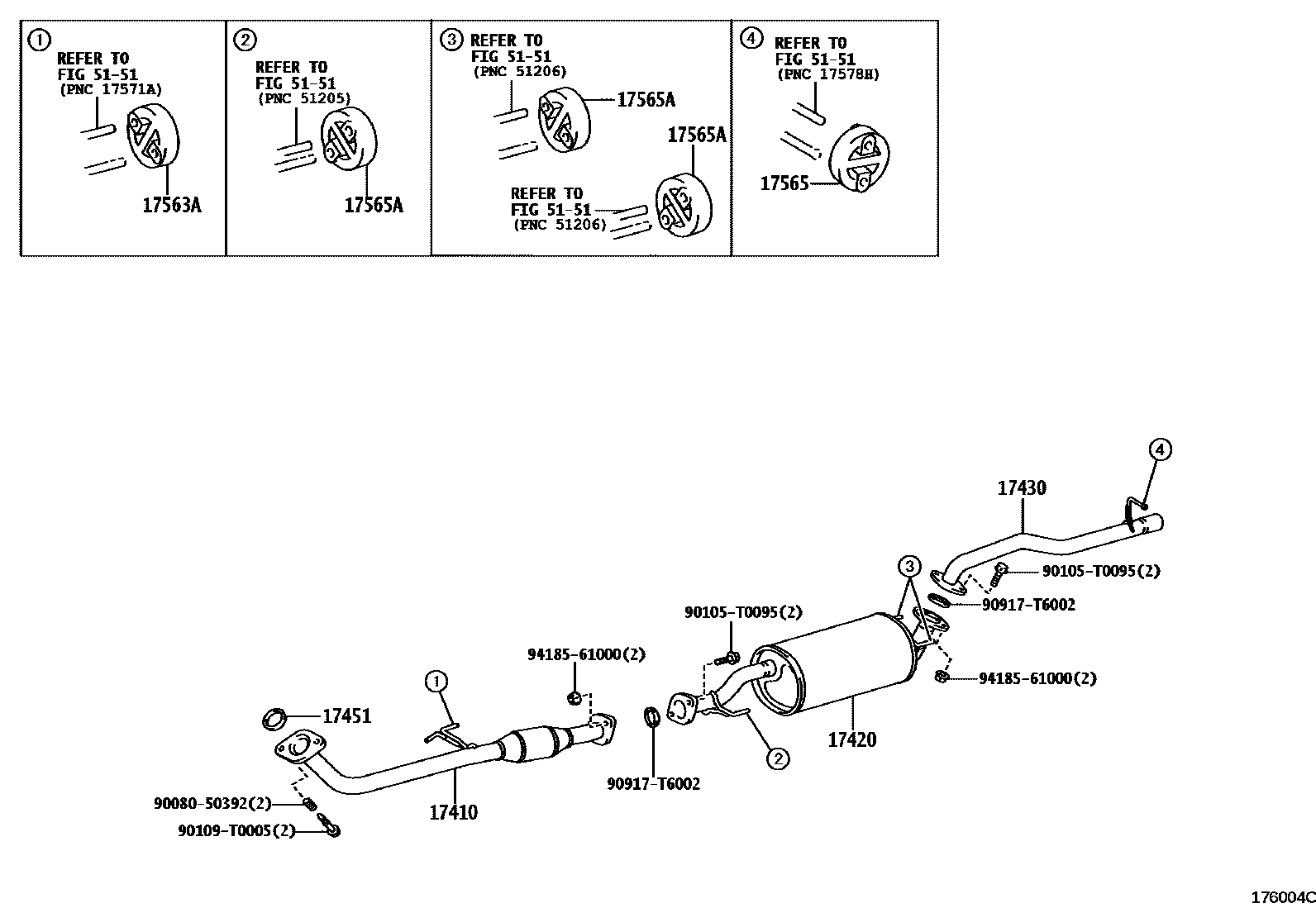

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1

17410PIPE ASSY, EXHAUST, FRONT

main17401-05110i5LE..LAN50200605-201108

sub17401-05111

main17401-0C210i2TRFE..TGN51,61..GCC,IDN,MA,PHL,SA,VN200504-201202

*114=TOYOTA/T30U55/Y

main17401-0C220i2TRFE..TGN61..5F..LA200501-201110

main17401-0C360i2TRFE..TGN61..TH200808-201107

main17401-0L030i1KDFTV..KUN51..SUVW..PHL200501-201110

*114=TOYOTA/AB5/Y

main17401-0L050i1KDFTV..KUN51..LA200810-201110

EXPORT FROM ARGENTINA

main17401-0L050i1KDFTV..KUN51..PHL200504-200810

main17401-0L060i2KDFTV..KUN50,60..SUVW200504-201202

main17401-0L090i1KDFTV..KUN51..IND200908-201201

*114=TOYOTA/AF3/Y

main17401-0P030i1GRFE..GGN50;1GRFE..GGN60..5F;1GRFE..GGN60..ANCOM200507-201204

main17410-0C110i2TRFE..TGN61..4FC..LA200810-201009

main17410-0P220i1GRFE..GGN50..LA200903-201110

17420PIPE ASSY, EXHAUST, CENTER

main17403-0C030i2TRFE..TGN51,61200501-201105

sub17403-0C110

main17403-0C110i2TRFE..TGN51,61201106-201202

main17403-0L070i1KDFTV..KUN61..5F;1KDFTV..KUN51..SUVW,THSUV200501-201105

sub17403-0L071

main17403-0L071i1KDFTV..KUN51,61;2KDFTV..KUN60..TH201106-201201

main17403-0L090i2KDFTV..KUN50..4FC;2KDFTV,5LE..KUN60,LAN50..IDN,PHL,SA,VN200504-201105

sub17403-0L091

main17403-0L091i2KDFTV,5LE..KUN50,60,LAN50..IDN,MA,PHL,SA,VN201106-201202

main17403-0P020i1GRFE..GGN60..5FC;1GRFE..GGN50..LHD;1GRFE..GGN50..5FC..SA200507-201105

sub17403-0P021

main17403-0P021i1GRFE..GGN50,60201106-201204

17430PIPE ASSY, EXHAUST, TAIL

main17405-0L090i2TRFE..TGN61..IDSUV..(GCC,IDN);1GRFE,2TRFE..GGN60,TGN61..SUVW..(4FC,5F)..SR;1GRFE,2TRFE..GGN60,TGN61..(5F,5FC)..(ANCOM,LA);1GRFE,2TRFE..GGN50,TGN51..ANCOM,GCC,GEN,I200501-201005

sub17405-0L091

main17405-0L091i1GRFE,2TRFE..GGN50,60,TGN51,61201006-201204

main17405-0L120i1KDFTV,2KDFTV..KUN51,60..SUVW,THSUV;1KDFTV,2KDFTV,5LE..KUN50,61,LAN50..5F200501-201005

sub17405-0L121

main17405-0L121i1KDFTV,2KDFTV,5LE..KUN5#,6#,LAN50201006-201202

17451GASKET, EXHAUST PIPE

main17451-0C010i2TRFE..TGN61..IDSUV..(GCC,IDN);1GRFE,2TRFE..GGN60,TGN61..SUVW..(4FC,5F)..SR;1GRFE,2TRFE..GGN60,TGN61..(5F,5FC)..(ANCOM,LA);1GRFE,2TRFE..GGN50,TGN51..ANCOM,GCC,GEN,I200501-201204

main17451-0L010i2KDFTV..KUN50..4FC;1KDFTV,2KDFTV..KUN51,6#200501-201202

17563ASUPPORT, EXHAUST PIPE, NO.3

main17565-0L020i1GRFE..GGN50..IDSUV200610-201107

main17565-0L030i1KDFTV..KUN51..IND200908-201201

sub17565-0L060

main17565-0L040i1KDFTV,2TRFE..KUN51,61,TGN61..LA200509-201204

sub17565-0M010

main17565-0M010i1KDFTV,2KDFTV,5LE..KUN50,61,LAN50..5F..(MA,SA);1KDFTV,2KDFTV,2TRFE..KUN51,60,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,MA,PHL,SA,TH)200501-201202

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-0L020i1GRFE,2TRFE..GGN50,TGN51,61..IDSUV200610-201107

main17565-0L030i1KDFTV..KUN51..IND200908-201201

sub17565-0L060

main17565-0L040i1GRFE,1KDFTV,2TRFE..GGN50,60,KUN51,61,TGN61..ANCOM,LA200509-201204

sub17565-0M010

main17565-0M010i1GRFE..GGN60..5FC..(GEN,SA);1GRFE..GGN50..(SUVW,THSUV)..(GCC,GEN);1GRFE,2KDFTV..GGN50,KUN50..RHD..(4FC,5FC);1KDFTV,2KDFTV,5LE,2TRFE..KUN51,6#,LAN50,TGN51,61..(SUVW,200501-201202

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-0L020i1GRFE,1KDFTV,2KDFTV,2TRFE..GGN50,KUN51,60,TGN51,61..IDSUV200610-201107

main17565-0L030i1KDFTV..KUN51..IND200908-201201

sub17565-0L060

main17565-0L040i2TRFE..TGN61..5F..LA;1GRFE,1KDFTV..GGN50,60,KUN51,61..ANCOM,LA200509-201204

sub17565-0M010

main17565-0M010i1GRFE..GGN60..5FC..(GEN,SA);1GRFE..GGN50..(SUVW,THSUV)..(GCC,GEN);1GRFE,2KDFTV..GGN50,KUN50..RHD..(4FC,5FC);1KDFTV,2KDFTV,5LE,2TRFE..KUN51,6#,LAN50,TGN51,61..(SUVW,200501-201202

5151

9008050392

main90080-50392

90105T0095

main90105-T0095

90109T0005

main90109-T0005

90917T6002

main90917-T6002

9418561000

main94185-61000

13 parts on this diagram · 4 diagrams in section
