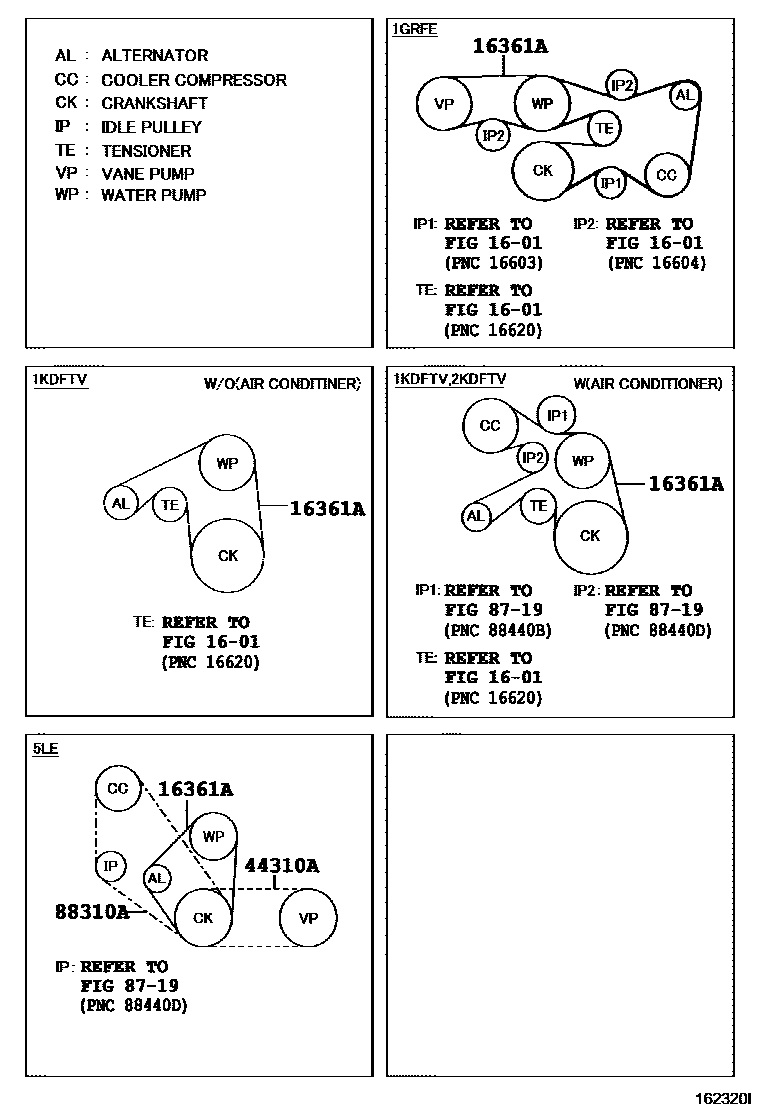

V-BELT
1601
16361ABELT, V(FOR FAN & ALTERNATOR)
sub99367-H2120
AIR CONDITIONER-DUAL AUTO COOLER(DOP),BANDO
sub90916-02707
WITHOUT(COOLER)
main90916-T2006i2KDFTV..KUN50..4FC;1KDFTV..KUN51..RHD;1KDFTV,2KDFTV..KUN6#;1KDFTV..KUN51..LHD..(GEN,LA,PHL)200501-201204
AIR CONDITIONER-AIR CONDITIONER DUAL
sub90916-T2022
MITSUBOSHI
AIR CONDITIONER-WITHOUT(COOLER),MITSUBOSHI
WITHOUT(COOLER),MITSUBOSHI
AIR CONDITIONER-DUAL AUTO COOLER(DOP),MITSUBOSHI
AUTO COOLER DUAL,MITSUBOSHI
COOLER SINGLE,MITSUBOSHI
DUAL AUTO COOLER(DEALER OPTION),MITSUBOSHI
main90916-T2024i2TRFE..TGN51..IDN,MA,SA;2TRFE..TGN61..IDSUV..IDN;2TRFE..TGN61..SUVW..(IDN,LA,PHL)200504-201204
MITSUBOSHI
AIR CONDITIONER-COOLER SINGLE,MITSUBOSHI
AIR CONDITIONER-AUTO COOLER DUAL,MITSUBOSHI
44310ABELT, V(FOR VANE PUMP)
L=825
8719
88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
L=1265
5 parts on this diagram · 2 diagrams in section
