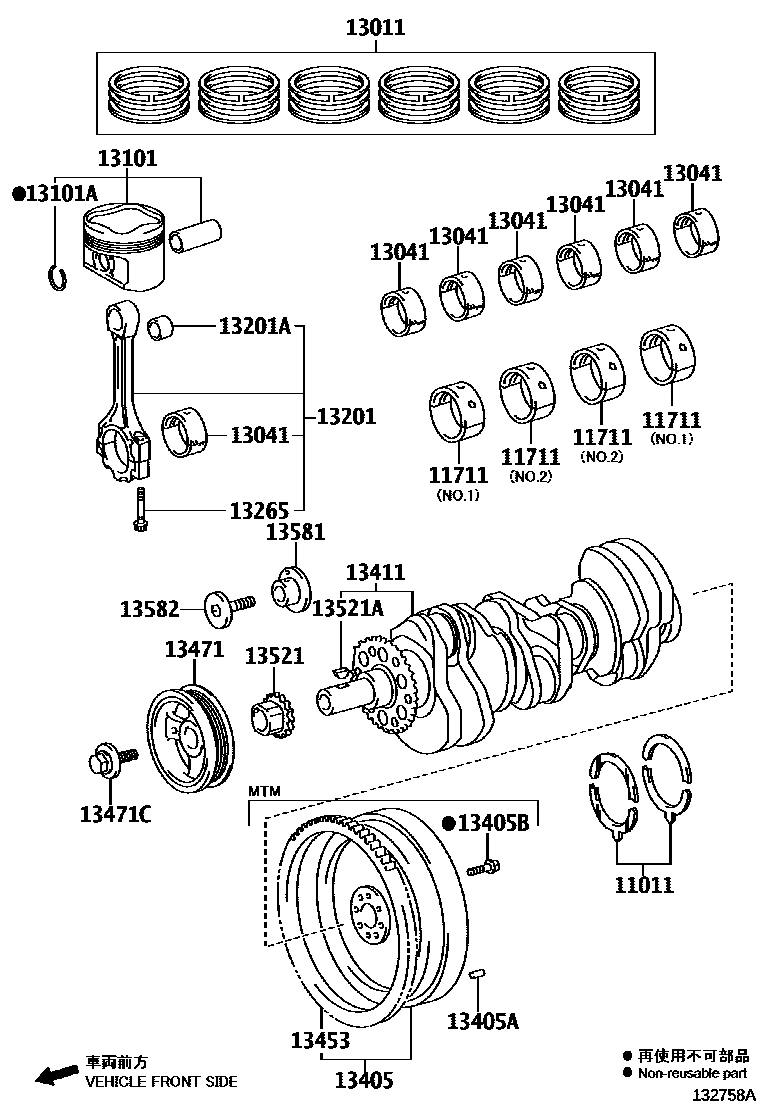

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD,(L)
main11011-0L020i1KDFTV,2KDFTV..KUN50,61..5F..DLX;1KDFTV,2KDFTV..KUN51,60..SUVW..(IDN,LA,PHL,TH)200501-201202
STD,*130
main11011-30010i2KDFTV..KUN50..5F;1KDFTV..KUN51..LHD..SA;1KDFTV,2KDFTV..KUN51,60..(SUVW,THSUV)..(GEN,IDN,PHL,TH)200507-201202
STD,*163 OR *184
STD
STD
STD
STD,(J)
O/S 0.125,*163 OR *184
main11012-30010i2KDFTV..KUN50..4FC;2KDFTV..KUN60..IDN,PHL,VN;1KDFTV..KUN51,61..GEN,PHL,SA,TH200808-201202
O/S 0.125,*130
O/S 0.125
O/S 0.125
main11013-30010i2KDFTV..KUN50..4FC;2KDFTV..KUN60..IDN,PHL,VN;1KDFTV..KUN51,61..GEN,PHL,SA,TH200808-201202
O/S 0.250,*163 OR *184
O/S 0.250,*130
O/S 0.250
O/S 0.250
11711BEARING, CRANKSHAFT
MARK2,NO.2,REFER R/M
sub11071-31050
MARK1,(L)
sub11701-0C011
MARK2,(L)
sub11701-0C011
MARK3,(L)
sub11701-0C011
MARK2,*130:REFER R/M
MARK3,*130:REFER R/M
MARK4,*130:REFER R/M
MARK5,*130:REFER R/M
MARK6,*130:REFER R/M
MARK1,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
13011RING SET, PISTON
STD,(L)
STD,*130
STD,*130
STD,*130
STD,*163 OR *184
STD,*163 OR *184
sub13011-30081
STD
STD
STD
STD,(J)
STD,BRAZIL SPEC
STD,LEADED GASOLINE
STD
O/S 0.50
O/S 0.50,*163 OR *184
O/S 0.50,*163 OR *184
O/S 0.50
O/S 0.50,*130
O/S 0.50
O/S 0.50
O/S 0.50,BRAZIL SPEC
O/S 0.50
O/S 0.50,LEADED GASOLINE
O/S 0.75,*130
sub13014-30051
O/S 0.75,*163 OR *184
O/S 0.75
O/S 0.75
O/S 1.00,*163 OR *184
O/S 1.00
O/S 1.00
13041BEARING, CONNECTING ROD
MARK4,(L),REFER R/M
sub13041-0C051
MARK5,(L),REFER R/M
sub13041-0C051
MARK6,(L),REFER R/M
sub13041-0C051
MARK2,*130:REFER R/M
MARK3,*130:REFER R/M
MARK4,*130:REFER R/M
MARK5,*130:REFER R/M
main13041-0L020-06i1KDFTV,2KDFTV..KUN50,61..5F..DLX;1KDFTV,2KDFTV..KUN51,60..SUVW..(IDN,LA,PHL,TH)200501-201202
MARK6,*130:REFER R/M
main13041-30020-05i2KDFTV..KUN50..5F;1KDFTV..KUN51..LHD..SA;1KDFTV,2KDFTV..KUN51,60..(SUVW,THSUV)..(GEN,IDN,PHL,TH)200507-201202
MARK5,*163 OR *184,RRM
sub13041-30020
main13041-30020-06i2KDFTV..KUN50..5F;1KDFTV..KUN51..LHD..SA;1KDFTV,2KDFTV..KUN51,60..(SUVW,THSUV)..(GEN,IDN,PHL,TH)200507-201202
MARK6,*163 OR *184,RRM
sub13041-30020
MARK 1
MARK 2
MARK 3
MARK 4
MARK1,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK4,(J)
sub13041-75050
MARK5,(J)
sub13041-75050
MARK6,(J)
sub13041-75050
13101PISTON SUB-ASSY, W/PIN
STD,(L)
STD,MARK1,*130:REFER R/M
sub13101-0L051
STD,MARK3,*130:REFER R/M
sub13101-0L051
STD,MARK 1,*130:REFER R/M
STD,MARK 2,*130:REFER R/M
STD,MARK 3,*130:REFER R/M
STD,MARK1,*130:REFER R/M
STD,MARK2,*130:REFER R/M
STD,MARK3,*130:REFER R/M
STD,MARK3,*163 OR *184,RRM
sub13101-30081
STD,MARK1,*163 OR *184,RRM
STD,MARK2,*163 OR *184,RRM
STD,MARK3,*163 OR *184,RRM
STD,MARK1,*130,(J):REFER R/M
sub13101-30150
STD,MARK1,*163 OR *184,RRM
sub13101-30150
STD,MARK3,*130,(J):REFER R/M
sub13101-30150
STD,MARK1,*163 OR *184,RRM
sub13101-30200
STD,MARK2,*163 OR *184,RRM
sub13101-30200
STD,MARK3,*163 OR *184,RRM
sub13101-30200
STD,MARK A,REFER REPAIR MANUAL
sub13101-31030
STD,MARK B,REFER REPAIR MANUAL
sub13101-31030
STD,MARK C,REFER REPAIR MANUAL
sub13101-31030
STD,MARK 1,REFER REPAIR MANUAL
STD,MARK 2,REFER REPAIR MANUAL
STD,MARK 3,REFER REPAIR MANUAL
STD,(J)
O/S 0.50,*130
O/S 0.50,*130
O/S 0.50,*163 OR *184
O/S 0.50
O/S 0.50,(J),(L)
O/S 0.50
13101ARING, HOLE SNAP(FOR PISTON PIN)
*163 OR *184
*130
13201ROD SUB-ASSY, CONNECTING
sub13201-09670
sub13201-09672
*130,(J)
*163 OR *184
*163 OR *184
*130
sub13201-39235
sub13201-59216
sub13201-79615
sub13201-79616
13201ABUSH(FOR CONNECTING ROD SMALL END)
13405FLYWHEEL SUB-ASSY
(L)
(L)
*130
*130
*130
*130
*130
main13405-30030i1KDFTV..KUN51..LHD..SA;1KDFTV,2KDFTV..KUN5#,60..5F..(GEN,IDN,MA,PHL,TH)200507-200806
*163 OR *184
sub13405-30031
*163 OR *184
sub13405-31091
sub13405-31092
(J)
*163 OR *184
(J)
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=15,OD=5,*163 OR *184
L=23,OD=8,(J)
L=23,OD=8
L=20,OD=10
L=22,OD=10,*163 OR *184
L=22,OD=10,*130
L=23,OD=8,(L)
L=23,OD=8
L=15,OD=5,*130
13405BBOLT, FLYWHEEL SETTING
*163 OR *184
*130
(J)
(L)
13411CRANKSHAFT
(L)
sub13401-0C021
*130
sub13401-30050
*130,(J)
*163 OR *184
*130
*163 OR *184,(J)
*130,(J)
*163 OR *184,MARK F
*163 OR *184
*130
sub13401-31011
sub13401-75041
13453GEAR, FLYWHEEL RING
(L)
(L)
*130
(J)
(J)
main13453-67030i2KDFTV..KUN50..5F;1KDFTV..KUN51..LHD..SA;1KDFTV,2KDFTV..KUN51,60..(SUVW,THSUV)..(GEN,IDN,PHL,TH)200507-201202
*163 OR *184
13471PULLEY, CRANKSHAFT
sub13408-0C040
*191
sub13408-0C030
*130
*163 OR *184
sub13408-30011
*163 OR *184
*125
sub13470-31014
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
(J)
(L)
main90119-18003i2KDFTV..KUN50..4FC;2KDFTV..KUN60..IDN,PHL,VN;1KDFTV..KUN51,61..GEN,PHL,SA,TH200507-201202
*163 OR *184
main90119-T0218i1KDFTV,2KDFTV..KUN50,61..5F..DLX;1KDFTV,2KDFTV..KUN51,60..SUVW..(IDN,LA,PHL,TH)200501-201202
*130
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
(L)
sub13521-0C011
sub13521-0C011
*130
*130,(L)
sub13521-31060
*163 OR *184
*130,(J)
*130
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
13581SHAFT, IDLE GEAR, NO.1
*130
sub13581-31030
main13581-67041i2KDFTV..KUN50..4FC;2KDFTV..KUN60..IDN,PHL,VN;1KDFTV..KUN51,61..GEN,PHL,SA,TH200507-201202
*163 OR *184
13582SHAFT, IDLE GEAR, NO.2
20 parts on this diagram · 7 diagrams in section
