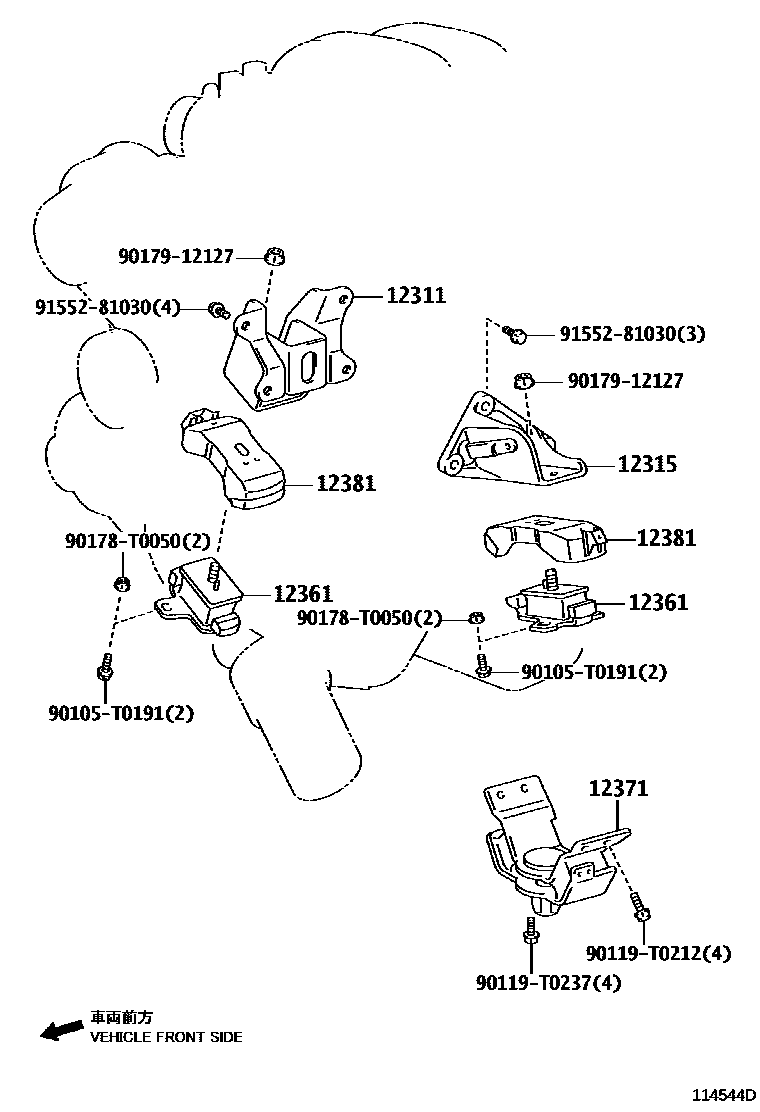

MOUNTING

0001 1 0002 1 0003 1 0004 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-0C010i2TRFE..TGN51,61..IDSUV;2TRFE..TGN51,61..LA,MA,SA,VN200508-201204

main12311-0C020i2TRFE..TGN51,61..SUVW..(GCC,IDN,PHL,TH)200501-201107

main12311-0L020i2KDFTV..KUN60..VN200501-201202

*130

main12311-0L020i2KDFTV..KUN60..TH;1KDFTV..KUN51..IND200908-201201

main12311-0L030i1KDFTV..KUN51,61..SA200602-200612

*130

main12311-0L040i1KDFTV..KUN51,61..LA200810-201110

main12311-0L040i1KDFTV..KUN51,61..LA200509-200810

*130

main12311-31031i1GRFE..GGN50..GCC,GEN200507-201107

main12311-54181i5LE..LAN50200605-201108

main12311-67021i1KDFTV..KUN51,61..SA200507-201202

*163 OR *184

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-0C010i2TRFE..TGN51,61..IDSUV;2TRFE..TGN51,61..LA,MA,SA,VN200508-201204

main12315-0C020i2TRFE..TGN51,61..SUVW..(GCC,IDN,PHL,TH)200501-201107

main12315-0L020i1KDFTV,2KDFTV..KUN5#,60..SUVW..(IDN,MA,PHL,TH)200501-201202

*130

main12315-0L020i2KDFTV..KUN60..TH;1KDFTV..KUN51..IND200908-201201

main12315-0L030i1KDFTV..KUN51,61..SA200602-200612

*130

main12315-0L040i1KDFTV..KUN51,61..LA200509-200810

*130

main12315-0L040i1KDFTV..KUN51,61..LA200810-201110

main12315-31061i1GRFE..GGN50..LHD;1GRFE..GGN50..5FC..SA;1GRFE..GGN60..SUVW..5FC200507-201107

sub12315-31062

main12315-67011i2KDFTV..KUN50..4FC;2KDFTV..KUN60..IDN,PHL,VN;1KDFTV..KUN51,61..GEN,PHL,SA,TH200507-201202

*163 OR *184

12361INSULATOR, ENGINE MOUNTING, FRONT

main12305-0C011i2TRFE..TGN51,61..IDSUV;2TRFE..TGN51,61..LA,MA,SA,TH,VN200606-200810

(L)

main12305-0C011i2TRFE..TGN51,61200501-200606

main12305-0C030i2TRFE..TGN51,61..SUVW..(GCC,IDN,PHL)200706-201107

main12305-75100i2TRFE..TGN51,61..IDSUV;2TRFE..TGN51,61..LA,MA,SA,TH,VN200606-200810

(J)

main12361-0L030i1KDFTV,2KDFTV..KUN50,61..RHD..5F;1KDFTV,2KDFTV..KUN51,60..(SUVW,THSUV)..(GEN,IDN,PHL,SA,TH)200501-200810

(L)

main12361-0L040i1KDFTV..KUN51,61..LA200509-200810

sub12361-0L030

main12361-30080i1KDFTV,2KDFTV..KUN50,61..RHD..5F;1KDFTV,2KDFTV..KUN51,60..(SUVW,THSUV)..(GEN,IDN,PHL,SA,TH)200506-200810

(J)

main12361-31090i1GRFE..GGN60..GEN200507-201107

main12361-54250i5LE..LAN50200605-201108

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-05040i5LE..LAN50200605-201102

sub12371-05041

main12371-05041i5LE..LAN50201103-201108

main12371-0C070i2TRFE..TGN61..5F..GCC200708-201102

sub12371-0C071

main12371-0C071i2TRFE..TGN61..5F..GCC201103-201107

sub12371-0C072

main12371-0C090i2TRFE..TGN61..4FC200504-201102

sub12371-0C091

main12371-0C091i2TRFE..TGN61..4FC201103-201107

main12371-0C100i2TRFE..TGN61..5F..LA200509-200810

main12371-0C110i2TRFE..TGN51..5F200507-201102

sub12371-0C111

main12371-0C111i2TRFE..TGN51..5F201103-201108

main12371-0C120i2TRFE..TGN51..4FC200501-201102

sub12371-0C121

main12371-0C121i2TRFE..TGN51..4FC201103

main12371-0L030i1KDFTV,2KDFTV..KUN6#..5F..SR200504-201102

sub12371-0L031

main12371-0L031i1KDFTV,2KDFTV..KUN6#..5F..SR201103

main12371-0L050i1KDFTV,2KDFTV..KUN6#..4FC200504-201102

sub12371-0L051

main12371-0L051i1KDFTV,2KDFTV..KUN6#..4FC201103-201108

sub12371-0L052

main12371-0L070i1KDFTV..KUN61..LA200509-200810

main12371-0L080i2KDFTV..KUN50..4FC;1KDFTV..KUN51..GEN,IND,PHL,SA,TH200501-201102

sub12371-0L081

main12371-0L081i1KDFTV,2KDFTV..KUN5#..GEN,IND,MA,PHL,SA,TH201103

main12371-0L090i1KDFTV..KUN51..LA200509-200810

main12371-0P050i1GRFE..GGN60..SA200602-200810

sub12371-0P051

main12371-0P060i1GRFE..GGN60..5FC200602-201102

sub12371-0P061

main12371-0P061i1GRFE..GGN60..GEN201103-201107

main12371-0P070i1GRFE..GGN50..LHD..5F200507-201102

sub12371-0P071

main12371-0P071i1GRFE..GGN50..5F201103

main12371-0P080i1GRFE..GGN50..5FC..ANCOM200507-201102

sub12371-0P081

main12371-0P081i1GRFE..GGN50..5FC201103

12381STABILIZER, ENGINE MOUNTING

main12381-0L030i1KDFTV,2KDFTV..KUN51,60200501-200507

(L)

sub12381-0L031

main12381-0L031i2KDFTV..KUN50..4FC;1KDFTV,2KDFTV..KUN51,6#..GEN,IDN,IND,PHL,SA,TH,VN200507-200810

(L)

main12381-0L040i1KDFTV..KUN51,61..LA200509-200810

main12381-30020i1KDFTV,2KDFTV..KUN51,60200506-200507

(J)

sub12381-30021

main12381-30021i1KDFTV,2KDFTV..KUN50,61..RHD..5F;1KDFTV,2KDFTV..KUN51,60..(SUVW,THSUV)..(GEN,IDN,PHL,SA,TH)200507-200810

(J)

main12381-31050i1GRFE..GGN60..GEN200507-201107

main12381-54110i5LE..LAN50200605-201108

90105T0191

main90105-T0191

90119T0212

main90119-T0212

90119T0237

main90119-T0237

90178T0050

main90178-T0050

9017912127

main90179-12127

9155281030

main91552-81030

11 parts on this diagram · 4 diagrams in section
