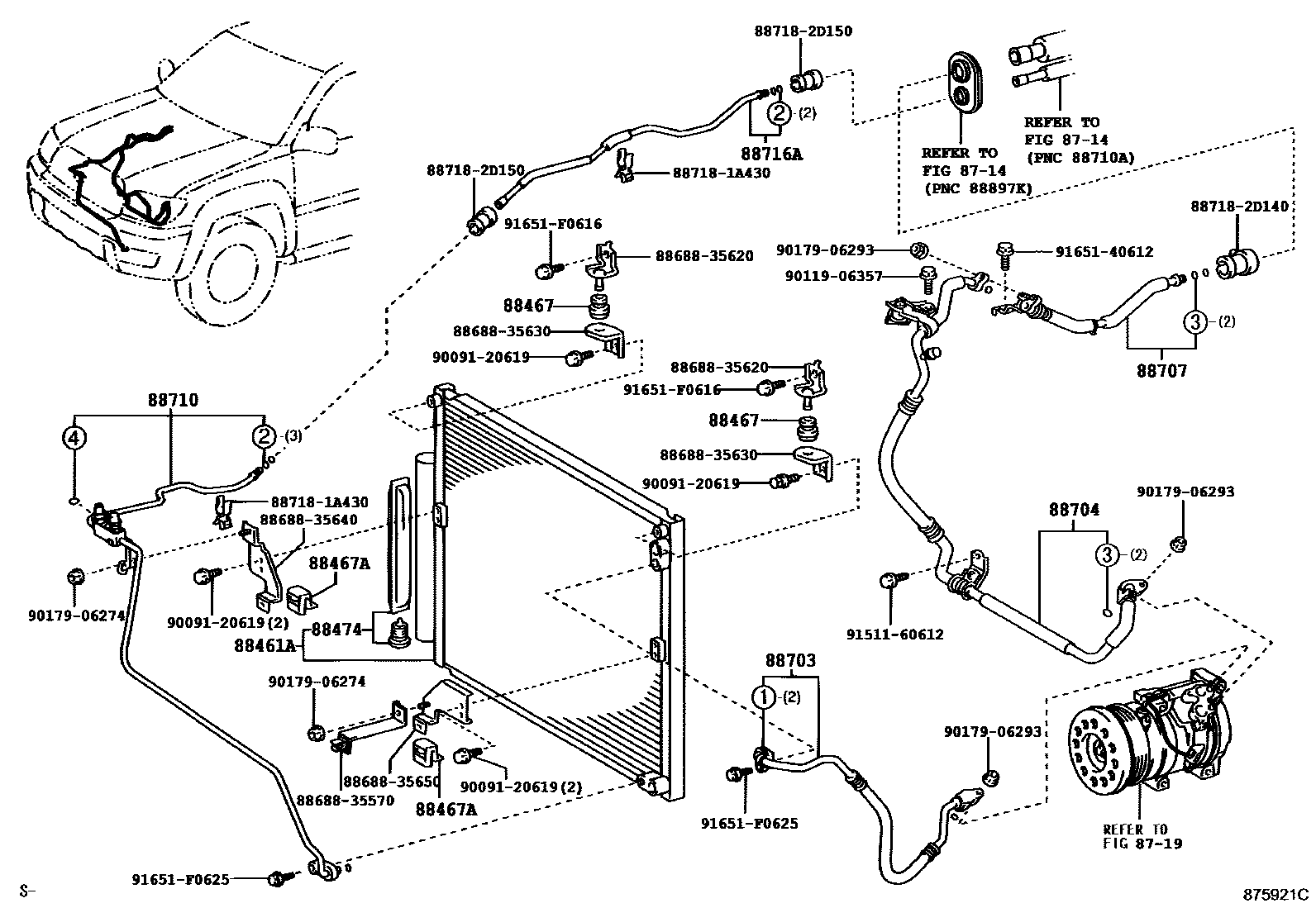

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1O-RING

8714

8719

88461ACORE, COOLER CONDENSER

main88461-35150iGRN21#200211-200307

main88461-35160iKZN215200211-200308

main88461-60090iGRN21#200307-200309

main88461-60091iGRN21#200309-200508

main88461-60100iKZN215200308-200508

88467CUSHION, COOLER CONDENSER, NO.1

main88467-28050iGRN21#200211-200508

88467ACUSHION, COOLER CONDENSER, NO.2

main88467-35080iGRN21#,KZN215200211-200508

88474DRYER, COOLER

main88474-17010iGRN21#,KZN215200211-200508

88703HOSE SUB-ASSY, DISCHARGE

main88703-35010iGRN21#200211-200508

88704HOSE SUB-ASSY, SUCTION

main88704-35010iGRN21#200211-200501

main88704-60370iGRN21#200502-200601

main88704-60390iGRN21#200601

88707PIPE SUB-ASSY, SUCTION

main88707-35010iGRN21#200211-200501

sub88707-60180

main88707-35040iKZN215200211-200508

main88707-60180iGRN21#200502-200601

88710TUBE ASSY, AIR CONDITIONER

main88710-35540iGRN21#200211-200508

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-35620iGRN21#200211-200601

main88716-6B800iGRN21#200601

8868835570BRACKET, COOLER DIAPHRAGM

main88688-35570

8868835620BRACKET, COOLER DIAPHRAGM

main88688-35620

8868835630BRACKET, COOLER DIAPHRAGM

main88688-35630

8868835640BRACKET, COOLER DIAPHRAGM

main88688-35640

8868835650BRACKET, COOLER DIAPHRAGM

main88688-35650

887181A430PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1A430

887182D140PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D140

887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D150

9009120619

main90091-20619

9011906357

main90119-06357

9017906274

main90179-06274

9017906293

main90179-06293

9151160612

main91511-60612

9165140612

main91651-40612

91651F0616

main91651-F0616

91651F0625

main91651-F0625

27 parts on this diagram · 4 diagrams in section
