RADIO RECEIVER & AMPLIFIER & CONDENSER

86120RECEIVER ASSY, RADIO

main86120-33450iGRN215,KZN215..LIMD200211-200308

FUJITSU TEN,ID=17808

main86120-33450iGRN215,KZN215..LIMD200211-200308

FUJITSU TEN,ID=17808,AUDIO(FOR OVERSEAS MARKET)-AM/FM,CS,CD,2D 6SP

86211BRACKET, RADIO, NO.1

main86211-35040iGRN21#200211-200908

86212BRACKET, RADIO, NO.2

main86212-35040iGRN21#200211-200908

86221APANEL, RADIO RECEIVER

main86221-52060iGRN21#200308-200508

AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS 6SP

main86221-52060iGRN21#200508

86221DPANEL, RADIO RECEIVER

main86221-52050iGRN21#200308-200508

AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS 6SP

main86221-52050iGRN21#200508

9015350010

main90153-50010

91631B0616

main91631-B0616

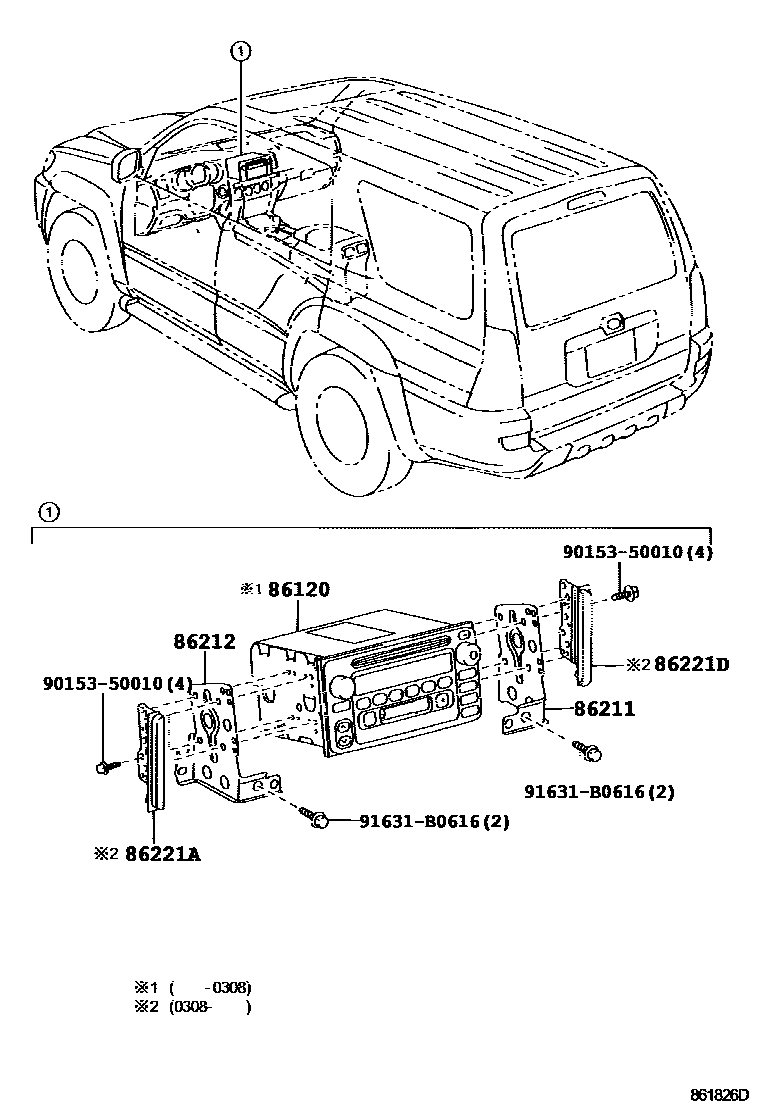

7 parts on this diagram · 1 diagram in section
