ABS & VSC

41534ABRACKET, FRONT DIFFERENTIAL BREATHER

main41534-60020iGRN21#200211-200408

88266BCLAMP, SKID CONTROL SENSOR, NO.1

main88266-60460iKZN215;GRN21#..5FC200211-200508

NO.1

main88266-60540iKZN215;GRN21#..5FC200211-200508

NO.2

main88266-60740iGRN21#200707

NO.2

88266CCLAMP, SKID CONTROL SENSOR, NO.2

main88266-60550iKZN215;GRN21#..5FC200211-200508

main88266-60750iGRN21#200707

89441ASENSOR, DECELERATION

main89440-60130iKZN215;GRN215..5FC200211-200508

89516WIRE, SKID CONTROL SENSOR

main89516-60070iGRN21#200211-200408

FRONT RH

main89516-60080iGRN21#200508

FRONT LH

main89516-60090iGRN21#200211-200408

REAR

89542SENSOR, SPEED, FRONT RH

main89542-60050iGRN21#200211-200408

89543SENSOR, SPEED, FRONT LH

main89543-60050iGRN21#200211-200408

89545SENSOR, SPEED, REAR RH

main89542-60050iGRN21#200211-200408

89546SENSOR, SPEED, REAR LH

main89543-60050iGRN21#200211-200408

91551A0616

main91551-A0616

91621J0612

main91621-J0612

91641H0820

main91641-H0820

91641K0816

main91641-K0816

91651B0814

main91651-B0814

91673A0612

main91673-A0612

9415010641

main94150-10641

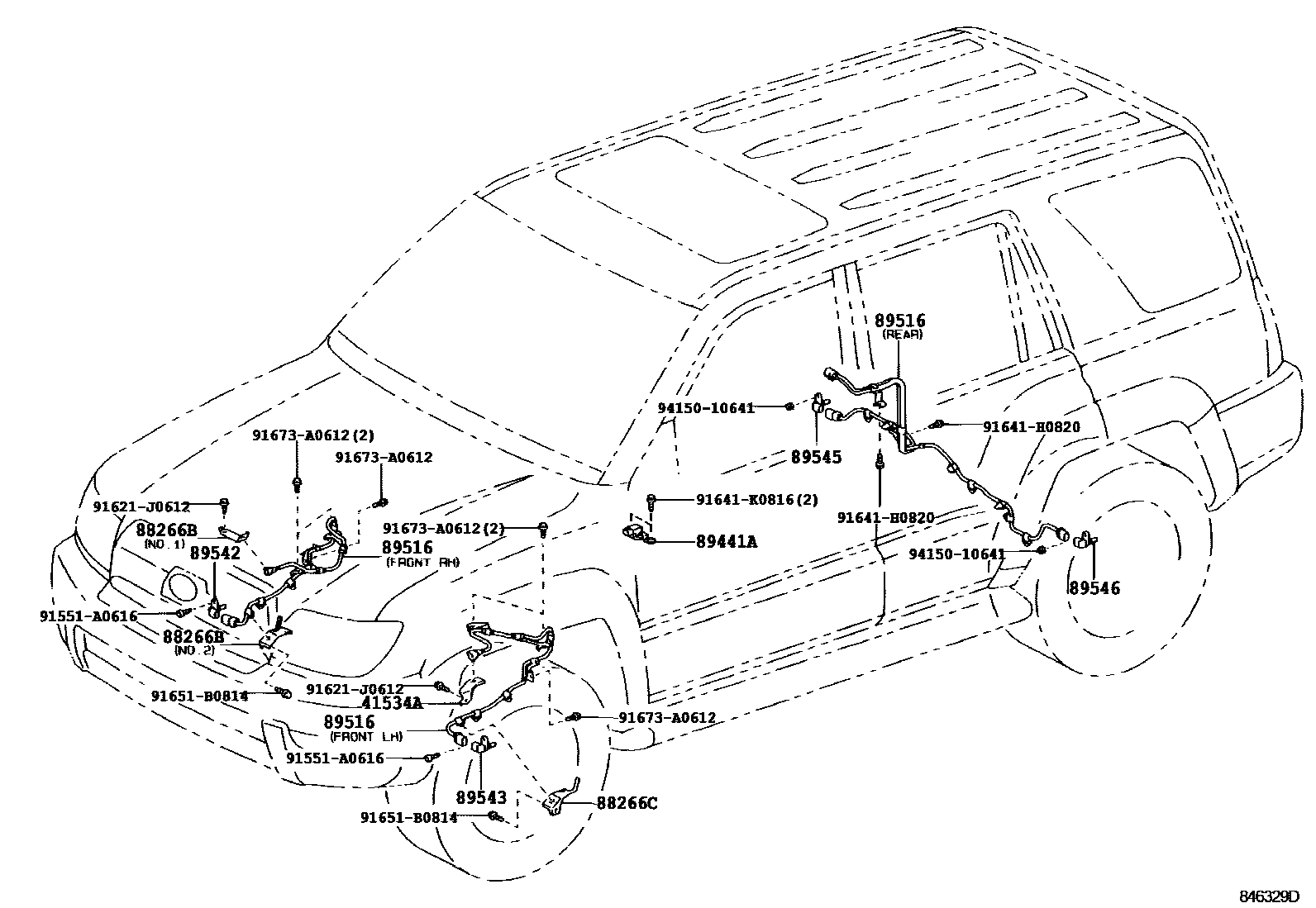

16 parts on this diagram · 1 diagram in section
