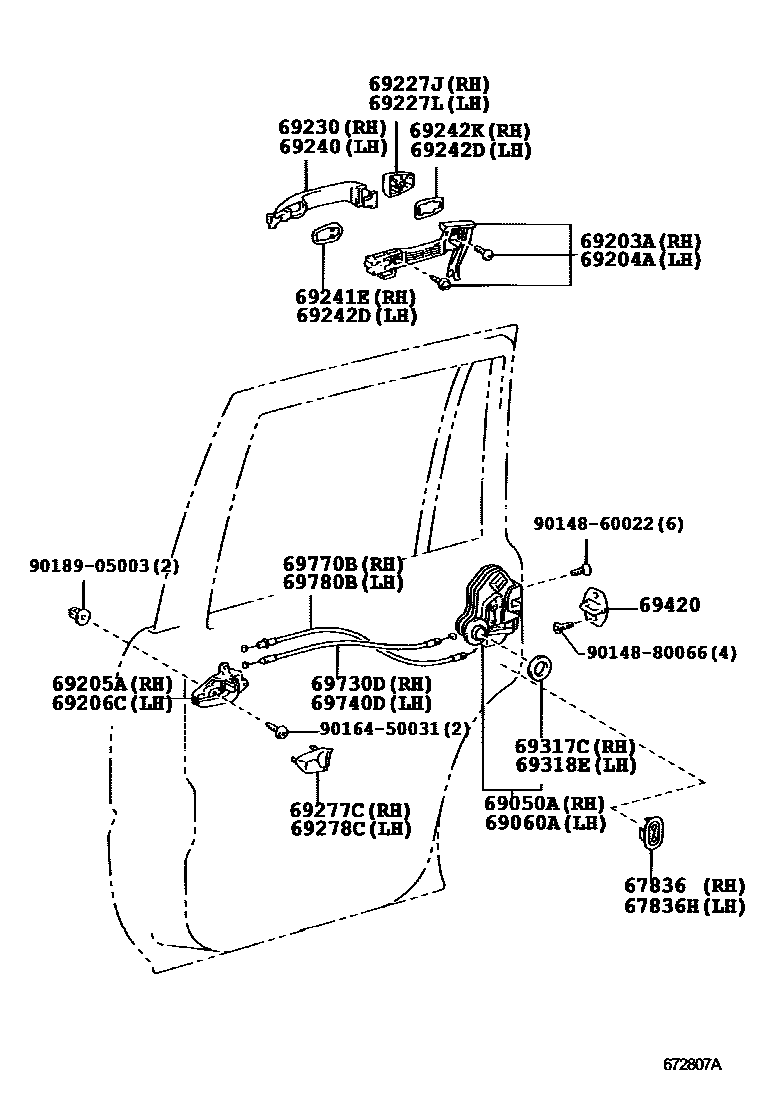

REAR DOOR LOCK & HANDLE

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-12040iGRN21#200211-200408

67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH

main67836-12040iGRN21#200211-200408

69050ALOCK ASSY, REAR DOOR W/MOTOR, RH

main69050-60090iGRN21#200211-200408

main69050-60091iGRN21#200610

69060ALOCK ASSY, REAR DOOR W/MOTOR, LH

main69060-60090iGRN21#200211-200408

main69060-60091iGRN21#200610

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-60010iGRN21#200211-200408

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-60010iGRN21#200211-200408

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-44020-B1iGRN21#200211-200408

DK.GRAY,TRIM1#,4#

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-44020-B1iGRN21#200211-200408

DK.GRAY,TRIM1#,4#

69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH

main69227-30070iGRN21#..SR5200508-200908

*CR

main69227-60020-A0iKZN215..SR5;GRN21#..5FC..SR5200211-200508

WHITE,056

main69227-60020-B0iKZN215;GRN21#..5FC200211-200508

SILVER ME.,1D4

main69227-60020-B1iGRN21#..SR5200508-200908

DK.GRAY M.M.,1E9

main69227-60020-C0iGRN21#..SR5200508-200908

LIMITED PACKAGE,BLACK,202

main69227-60020-D0iKZN215..SR5200211-200508

RED M.M.,3P1

main69227-60020-D7iGRN21#,KZN215..SR5200408-200508

DK. RED M.M.,3Q3

main69227-60020-E7iGRN21#..SR5200508-200908

BRONZE M.M.,4S2

main69227-60020-F0iKZN215;GRN21#..5FC200211-200508

CHAMPAGNE M.M.,587

main69227-60020-G0iGRN21#..SR5200211-200408

DK.GREEN MC.,6Q7

main69227-60020-J0iKZN215;GRN21#..5FC200211-200508

DK.BLUE MC.,8Q0

main69227-60020-J1iKZN215;GRN21#..5FC200211-200508

GRAYISH BLUE ME.,8R3

main69227-60020-P1iGRN21#..SR5200508-200908

LIMITED PACKAGE,DK. GRAY M.M.,1F4

main69227-60020-R4iGRN21#..SR5200508-200908

DK.BLUE MC.,8S6

69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH

main69227-30070iGRN21#..SR5200508-200908

*CR

main69227-60020-A0iGRN21#..SR5200508-200908

WHITE,056

main69227-60020-B0iGRN21#..SR5200508-200908

LIMITED PACKAGE,SILVER ME.,1D4

main69227-60020-B1iKZN215;GRN21#..5FC200211-200508

DK.GRAY M.M.,1E9

main69227-60020-C0iGRN21#..SR5200508-200908

LIMITED PACKAGE,BLACK,202

main69227-60020-D0iKZN215..SR5200211-200508

RED M.M.,3P1

main69227-60020-D7iGRN21#,KZN215..SR5200408-200508

DK. RED M.M.,3Q3

main69227-60020-E7iGRN21#..SR5200508-200908

BRONZE M.M.,4S2

main69227-60020-F0iKZN215;GRN21#..5FC200211-200508

CHAMPAGNE M.M.,587

main69227-60020-G0iGRN21#..SR5200211-200408

DK.GREEN MC.,6Q7

main69227-60020-J0iGRN21#200211-200408

DK.BLUE MC.,8Q0

main69227-60020-J1iKZN215;GRN21#..5FC200211-200508

GRAYISH BLUE ME.,8R3

main69227-60020-P1iGRN21#..SR5200508-200908

LIMITED PACKAGE,DK. GRAY M.M.,1F4

main69227-60020-R4iGRN21#..SR5200508-200908

DK.BLUE MC.,8S6

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69210-58010iGRN21#..SR5200508-200908

PLATED

main69211-28070-A2iGRN21#..SR5200508-200908

WHITE,056

main69211-28070-B0iGRN21#..SR5200508-200908

LIMITED PACKAGE,SILVER ME.,1D4

main69211-28070-B4iGRN21#..SR5200508-200908

DK.GRAY M.M.,1E9

main69211-28070-C1iKZN215;GRN21#..5FC200211-200508

BLACK,202

main69211-28070-D2iGRN21#..SR5200211-200408

RED M.M.,3P1

main69211-28070-D9iGRN21#,KZN215..SR5200408-200508

DK. RED M.M.,3Q3

main69211-28070-E7iGRN21#..SR5200508-200908

BRONZE M.M.,4S2

main69211-28070-F2iGRN21#200211-200408

CHAMPAGNE M.M.,587

main69211-28070-G1iGRN21#..SR5200211-200408

DK.GREEN MC.,6Q7

main69211-28070-J1iGRN21#200211-200408

DK.BLUE MC.,8Q0

main69211-28070-J2iGRN21#200211-200408

GRAYISH BLUE ME.,8R3

main69211-28070-P5iGRN21#..SR5200508-200908

LIMITED PACKAGE,DK. GRAY M.M.,1F4

main69211-28070-R9iGRN21#..SR5200508-200908

DK.BLUE MC.,8S6

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69210-58010iGRN21#..SR5200508-200908

PLATED

main69211-28070-A2iGRN21#..SR5200508-200908

WHITE,056

main69211-28070-B0iGRN21#,KZN215200211-200508

SILVER ME.,1D4

main69211-28070-B4iGRN21#,KZN215200211-200508

DK.GRAY M.M.,1E9

main69211-28070-C1iGRN21#..SR5200508-200908

LIMITED PACKAGE,BLACK,202

main69211-28070-D2iGRN21#,KZN215..4FC..SR5200211-200508

RED M.M.,3P1

main69211-28070-D9iGRN21#,KZN215..SR5200408-200508

DK. RED M.M.,3Q3

main69211-28070-E7iGRN21#..SR5200508-200908

BRONZE M.M.,4S2

main69211-28070-F2iGRN21#,KZN215200211-200508

CHAMPAGNE M.M.,587

main69211-28070-G1iGRN21#,KZN215..4FC..SR5200211-200508

DK.GREEN MC.,6Q7

main69211-28070-J1iGRN21#,KZN215200211-200508

DK.BLUE MC.,8Q0

main69211-28070-J2iGRN21#,KZN215200211-200508

GRAYISH BLUE ME.,8R3

main69211-28070-P5iGRN21#..SR5200508-200908

LIMITED PACKAGE,DK. GRAY M.M.,1F4

main69211-28070-R9iGRN21#..SR5200508-200908

DK.BLUE MC.,8S6

69241EPAD, REAR DOOR OUTSIDE HANDLE, RH

main69241-28060supersedes 69241-28060iGRN21#200211-200408

69242DPAD, REAR DOOR OUTSIDE HANDLE, LH

main69241-28060iGRN21#200211-200408

FRONT

main69242-33020iGRN21#200808

REAR

main69242-33030iGRN21#200704-200807

REAR

main69242-60030iGRN21#200508-200703

REAR

69242KPAD, REAR DOOR OUTSIDE HANDLE, RH

main69242-33020iGRN21#200808

main69242-33030iGRN21#200704-200807

main69242-60030iGRN21#200508-200703

69277CBEZEL, REAR DOOR INSIDE HANDLE, RH

main69297-30030-B2iGRN21#200211-200408

DK.GRAY,TRIM1#,4#

69278CBEZEL, REAR DOOR INSIDE HANDLE, LH

main69298-30030-B2iGRN21#200211-200408

DK.GRAY,TRIM1#,4#

69317CSEAL, DOOR LOCK WIRING HARNESS, RH

main69318-51010iGRN21#200508

69318ESEAL, DOOR LOCK WIRING HARNESS, LH

main69318-51010iGRN21#200211-200408

69420PLATE ASSY, REAR DOOR LOCK STRIKER

main69410-33010×2iGRN21#200211-200408

69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH

main69730-35020iGRN21#200211-200408

69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH

main69730-35020iGRN21#200211-200408

69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-35010iGRN21#200211-200408

69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH

main69770-35010iKZN215;GRN21#..5FC200211-200508

9014860022

main90148-60022

9014880066

main90148-80066

9016450031

main90164-50031

9018905003

main90189-05003

28 parts on this diagram · 1 diagram in section
