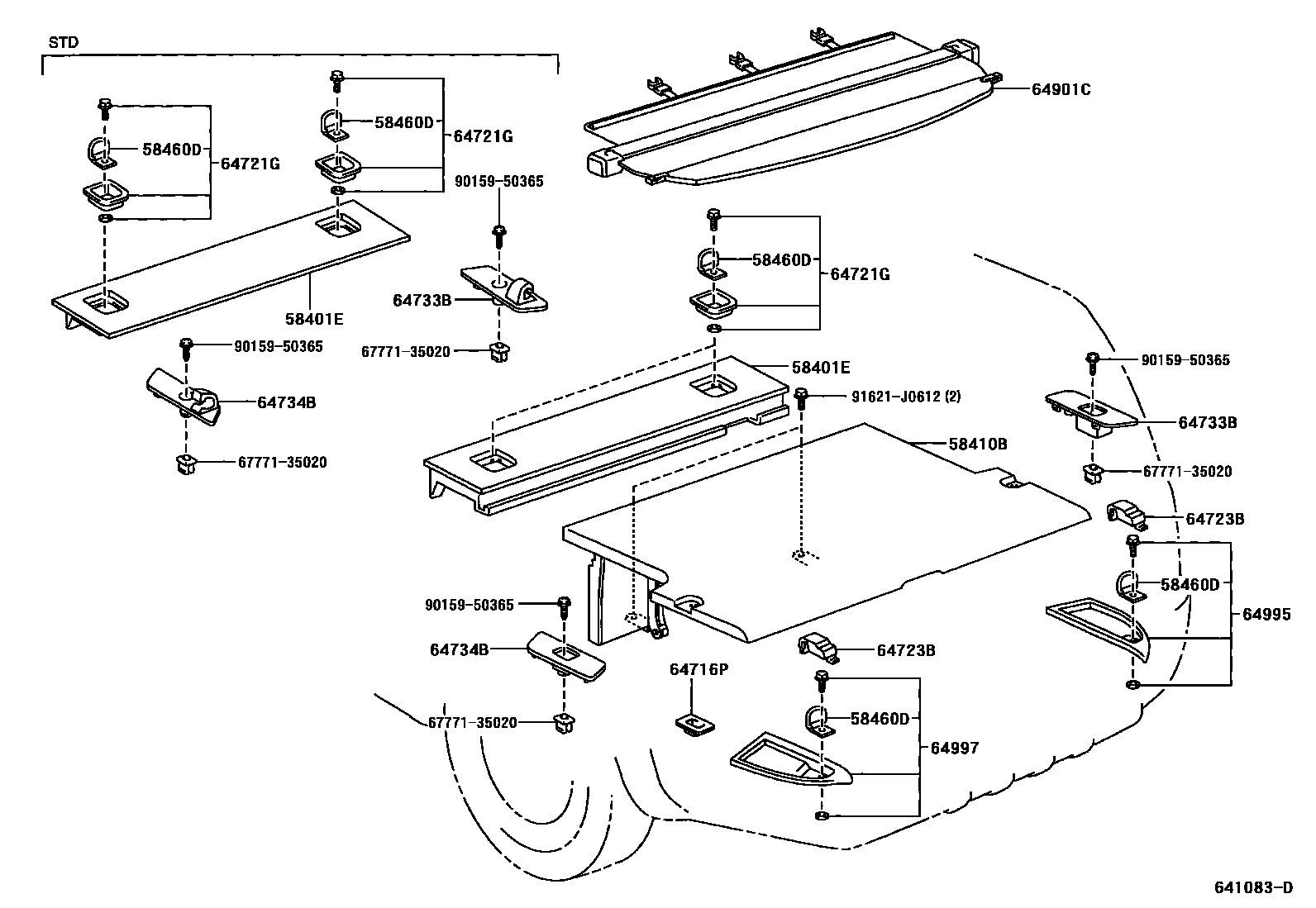

DECK BOARD & DECK TRIM COVER

58401EBOARD SUB-ASSY, DECK

main58401-35020-B0supersedes 58401-35010-B0iGRN21#200211-200408

TRUNK & DECK CARPET & MAT-DOUBLE DECK,STONE,TRIM1#

main58401-35020-E0supersedes 58401-35010-E0iKZN215;GRN21#..5FC200211-200508

TRUNK & DECK CARPET & MAT-DOUBLE DECK,FAWN,TRIM4#

58410BBOARD ASSY, DECK

main58410-35010-B0iGRN21#200508-200908

TRUNK & DECK CARPET & MAT-DOUBLE DECK,STONE,TRIM1#

main58410-35010-E0iKZN215;GRN21#..5FC200211-200508

TRUNK & DECK CARPET & MAT-DOUBLE DECK,FAWN,TRIM4#

58460DSTRIKER ASSY, LUGGAGE HOLD BELT

64716PCOVER, DECK TRIM, REAR

main64716-35010-B0×2iGRN21#200211-200408

TRUNK & DECK CARPET & MAT-DOUBLE DECK,STONE,TRIM1#

main64716-35010-E0×2iGRN21#200211-200408

TRUNK & DECK CARPET & MAT-DOUBLE DECK,FAWN,TRIM4#

64721GCOVER, DECK TRIM, NO.1

main64721-35010-B0×2supersedes 64721-35020-B0iGRN21#200508-200908

TRUNK & DECK CARPET & MAT-DOUBLE DECK,STONE,TRIM1#

main64721-35010-E0×2supersedes 64721-35020-E0iGRN21#200211-200408

TRUNK & DECK CARPET & MAT-DOUBLE DECK,FAWN,TRIM4#

64723BCOVER, LUGGAGE COMPARTMENT TRIM SIDE, LOWER

main64723-35010-B0×2iGRN21#200211-200408

TRUNK & DECK CARPET & MAT-DOUBLE DECK,STONE,TRIM1#

main64723-35010-E0×2iKZN215;GRN21#..5FC200211-200508

TRUNK & DECK CARPET & MAT-DOUBLE DECK,FAWN,TRIM4#

64733BBOARD, DECK TRIM SIDE, UPR RH

main64733-35020-B0supersedes 64703-35010-B0iGRN21#200508-200908

TRUNK & DECK CARPET & MAT-DOUBLE DECK,STONE,TRIM1#

main64733-35020-E0supersedes 64703-35010-E0iGRN21#200211-200408

TRUNK & DECK CARPET & MAT-DOUBLE DECK,FAWN,TRIM4#

64734BBOARD, DECK TRIM SIDE, UPPER LH

main64734-35020-B0supersedes 64704-35010-B0iGRN21#200508-200908

TRUNK & DECK CARPET & MAT-DOUBLE DECK,STONE,TRIM1#

main64734-35020-E0supersedes 64704-35010-E0iGRN21#200211-200408

TRUNK & DECK CARPET & MAT-DOUBLE DECK,FAWN,TRIM4#

64901CRETRACTOR SUB-ASSY, TONNEAU COVER

main64901-35040-B0iGRN21#,KZN215..SR5200211-200506

W/TONEAU COVER,STONE,TRIM1#

main64901-35040-B1iGRN21#,KZN215..SR5200506-200508

W/TONEAU COVER,STONE,TRIM12

main64901-35040-E0iGRN215,KZN215..LIMD200211-200506

W/TONEAU COVER,FAWN,TRIM4#

main64901-35040-E1iGRN215..LIMD200508-200908

W/TONEAU COVER,FAWN,TRIM4#

64995BOX, DECK FLOOR, RH

main64995-35010-B0iGRN21#200508-200908

TRUNK & DECK CARPET & MAT-DOUBLE DECK,STONE,TRIM1#

main64995-35010-E0iGRN21#200211-200408

TRUNK & DECK CARPET & MAT-DOUBLE DECK,FAWN,TRIM4#

64997BOX, DECK FLOOR, LH

main64997-35010-B0iKZN215;GRN21#..5FC200211-200508

TRUNK & DECK CARPET & MAT-DOUBLE DECK,STONE,TRIM1#

main64997-35010-E0iGRN21#200508-200908

TRUNK & DECK CARPET & MAT-DOUBLE DECK,FAWN,TRIM4#

6777135020WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-35020

9015950365

main90159-50365

91621J0612

main91621-J0612

14 parts on this diagram · 1 diagram in section
