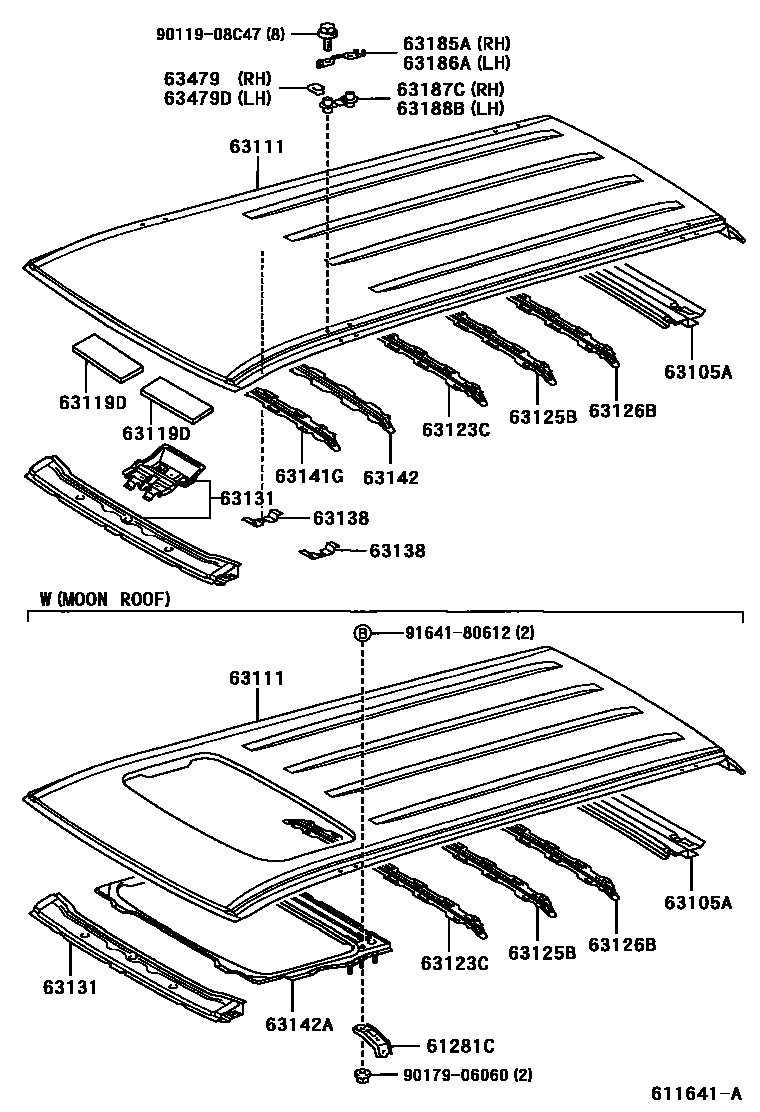

ROOF PANEL & BACK PANEL
61281CBRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1
W/MOON ROOF
WITH(MOON ROOF)
63111PANEL, ROOF
W/MOON ROOF
WITH(MOON ROOF)
63119DPAD, ROOF PANEL, NO.1
63123CREINFORCEMENT, ROOF PANEL
63125BREINFORCEMENT, ROOF PANEL, FRONT
63126BREINFORCEMENT, ROOF PANEL, REAR NO.2
63138BRACKET, DOME LAMP, NO.2
63141GREINFORCEMENT, ROOF PANEL, NO.1
63142AREINFORCEMENT, ROOF PANEL, NO.2
W/MOON ROOF
WITH(MOON ROOF)
63185ABRACKET, ROOF RACK, FRONT RH
63186ABRACKET, ROOF RACK, FRONT LH
63187CBRACKET, ROOF RACK, NO.1 REAR RH
63188BBRACKET, ROOF RACK, NO.1 REAR LH
63479RETAINER, ROOF INNER RACK
63479DRETAINER, ROOF INNER RACK, LH
9011908C47
main90119-08C47
9017906060
main90179-06060
9164180612
main91641-80612
21 parts on this diagram · 4 diagrams in section
