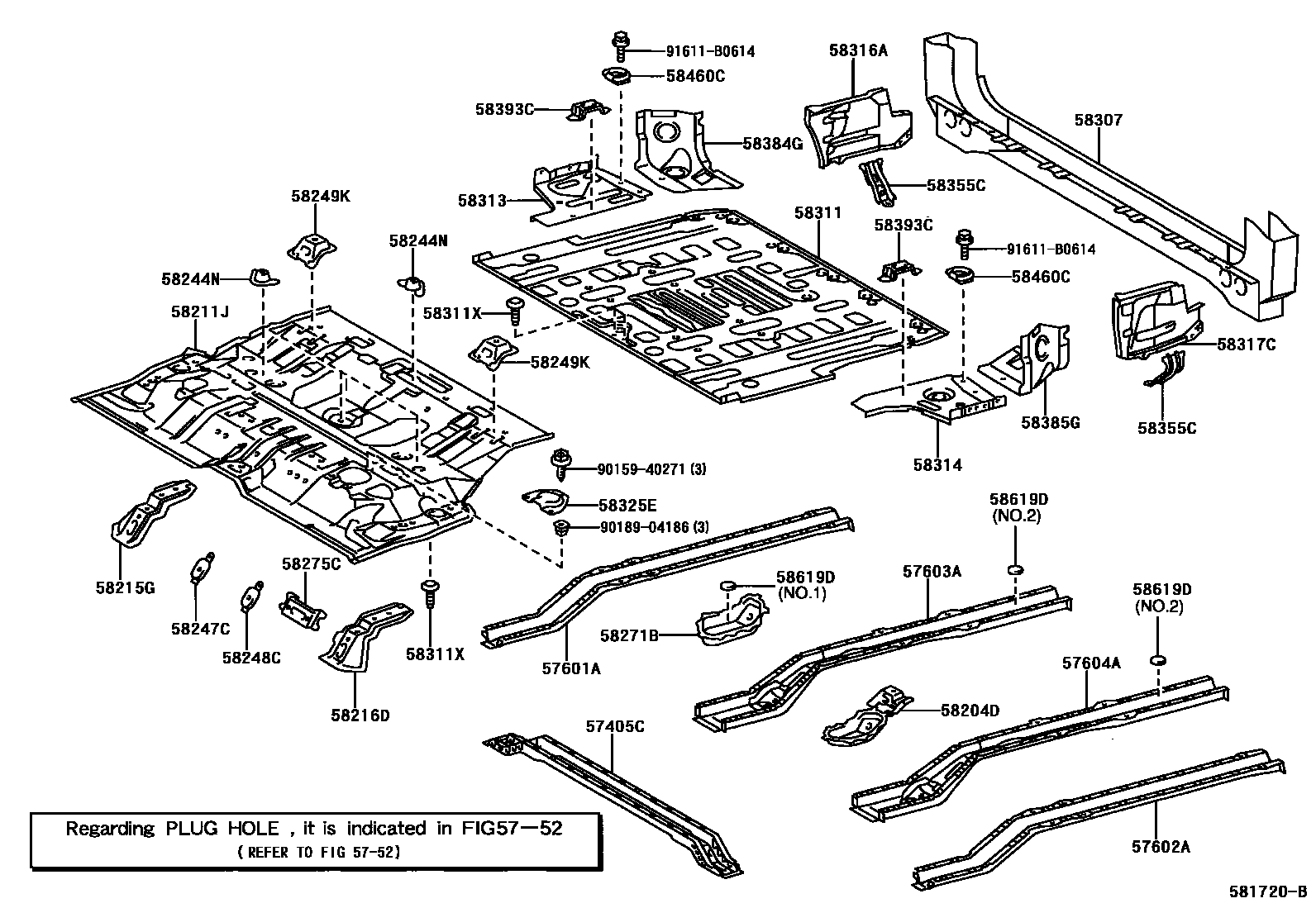

REAR FLOOR PANEL & REAR FLOOR MEMBER
5752
57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH
57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH
58211JPAN, CENTER FLOOR
TRUNK & DECK CARPET & MAT-DOUBLE DECK
58215GBRACKET, REAR SEAT MOUNTING, NO.1
58216DBRACKET, REAR SEAT MOUNTING, LH
58244NSTOPPER, REAR SEAT CUSHION BRACKET
58247CREINFORCEMENT, REAR SEAT CUSHION HINGE, RH
58248CREINFORCEMENT, REAR SEAT CUSHION HINGE, LH
58249KBRACKET, CENTER FLOOR BOARD SUPPORT
58271BPLATE, FLOOR SIDE, REAR, RH
58275CBRACKET, WIRE HARNESS PROTECTOR
58307PANEL SUB-ASSY, BODY LOWER BACK
58311XBOLT, REAR FLOOR WELD
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
sub58314-60120
58316AEXTENSION, REAR FLOOR SIDE PANEL, REAR RH
58317CEXTENSION, REAR FLOOR SIDE PANEL, REAR LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58355CBRACKET, REAR BUMPER ARM
58384GGUSSET, LOWER BACK, UPPER RH
58385GGUSSET, LOWER BACK, UPPER LH
58393CSUPPORT, DECK BOARD SET
TRUNK & DECK CARPET & MAT-DOUBLE DECK
58460CSTRIKER ASSY, LUGGAGE HOLD BELT
58619DSHEET, CENTER FLOOR SILENCER SUB
NO.1
NO.2
9015940271
main90159-40271
9018904186
main90189-04186
91611B0614
main91611-B0614
33 parts on this diagram · 1 diagram in section
