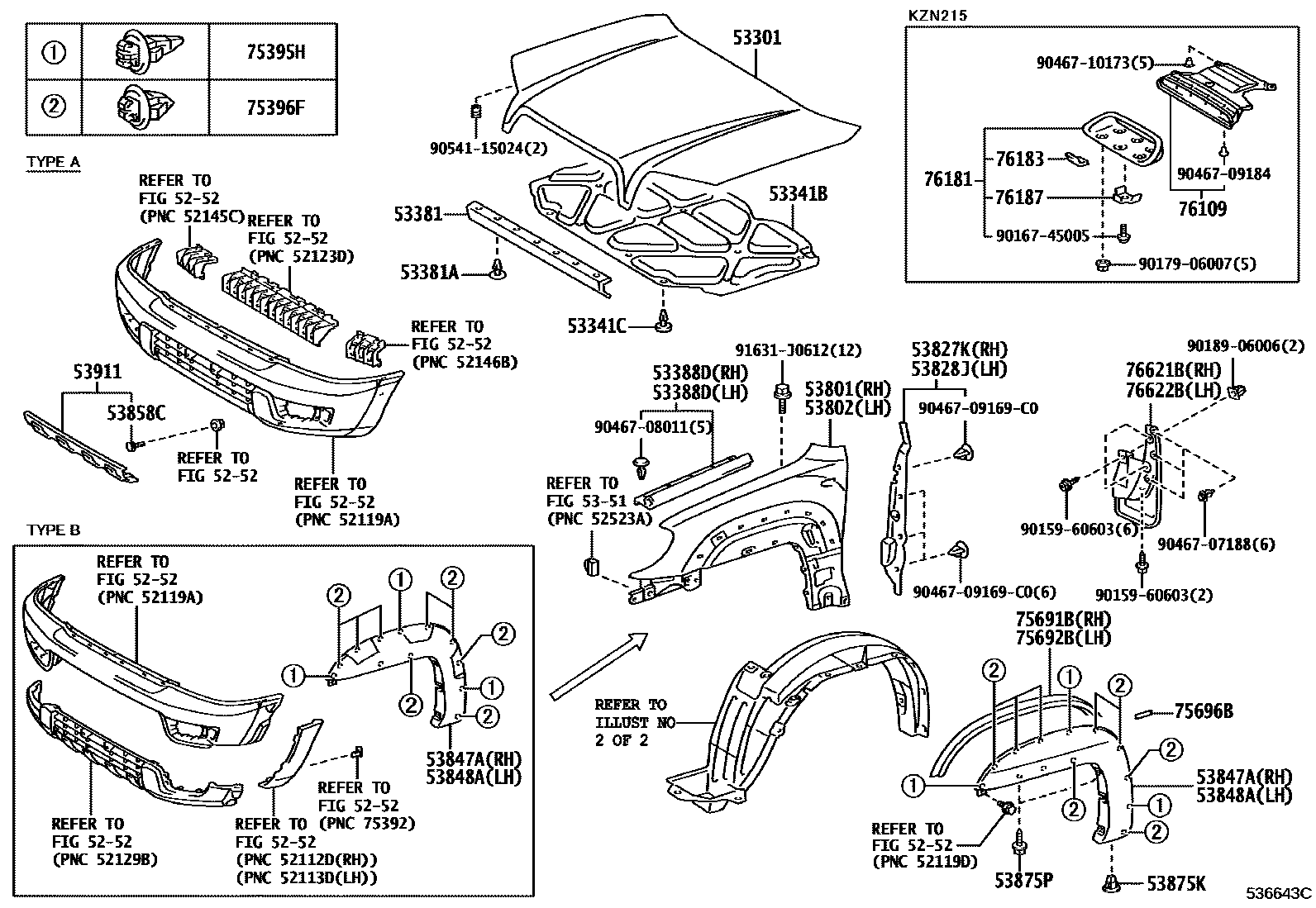

HOOD & FRONT FENDER

0001 1 0002 1 0003 1

5252

53301HOOD SUB-ASSY

main53301-35120iGRN21#¥55,700200211-200503

sub53301-35121¥55,400

main53301-35121iGRN21#¥55,400200504-200908

sub53301-35141¥55,600

main53301-35130iKZN215¥55,700200211-200503

sub53301-35131¥55,600

main53301-35131iKZN215¥55,600200504-200508

sub53301-35151¥55,400

53341BINSULATOR, HOOD

main53341-35140iKZN215¥14,100200211-200508

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iKZN215¥120200211-200508

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-35060iKZN215;GRN21#..5FC¥1,480200211-200508

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iGRN21#¥100200211-200508

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-35010iGRN21#¥900200211-200508

5351

53801FENDER SUB-ASSY, FRONT RH

main53801-35510iGRN21#,KZN215¥44,900200211-200508

main53801-35560iGRN21#¥44,800200508-200908

sub53801-35580¥49,300

53802FENDER SUB-ASSY, FRONT LH

main53802-35590iGRN21#,KZN215¥44,900200211-200508

main53802-35650iGRN21#¥44,800200508-200908

sub53802-35670¥49,300

53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-35030iGRN21#,KZN215¥2,910200211-200504

sub53827-35031¥2,910

main53827-35031iGRN21#,KZN215¥2,910200505-200508

53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-35050iGRN21#,KZN215¥2,910200211-200504

sub53828-35051¥2,910

main53828-35051iGRN21#,KZN215¥2,910200505-200508

53847AEXTENSION, FRONT WHEEL OPENING OR ARCH MOULDING, RH

main53847-35100-B0iGRN215..LIMD200211-200508

SILVER ME.,1D4

main53847-35100-B0iGRN215..LIMD200211-200508

LIMITED PACKAGE,SILVER ME.,1D4

main53847-35100-B1iGRN21#..SR5200211-200508

DK.GRAY M.M.,1E9

main53847-35100-B1iGRN215..LIMD200211-200508

LIMITED PACKAGE,DK.GRAY M.M.,1E9

main53847-35100-C0iKZN215..LIMD;GRN215..5FC..LIMD200211-200508

LIMITED PACKAGE,BLACK,202

main53847-35100-C0iGRN21#..SR5200211-200508

BLACK,202

main53847-35100-F0iKZN215..LIMD;GRN215..5FC..LIMD200211-200508

CHAMPAGNE M.M.,587

main53847-35100-F0iGRN21#..SR5200211-200508

LIMITED PACKAGE,CHAMPAGNE M.M.,587

main53847-35100-J0iGRN215..LIMD200211-200508

DK.BLUE MC.,8Q0

main53847-35100-J0iGRN215..LIMD200211-200508

LIMITED PACKAGE,DK.BLUE MC.,8Q0

main53847-35100-J1iKZN215..SR5;GRN21#..5FC..SR5200211-200508

LIMITED PACKAGE,GRAYISH BLUE ME.,8R3

main53847-35100-J1iGRN21#..SR5200211-200508

GRAYISH BLUE ME.,8R3

main53847-35110iGRN21#..SR5¥14,100200211-200508

NO PAINT REQ.

main53847-35120-A0iGRN21#200508-200908

WHITE,056

main53847-35120-B0iGRN21#200508-200908

SILVER ME.,1D4

main53847-35120-B1iGRN21#200508-200908

DK.GRAY M.M.,1E9

main53847-35120-B2iGRN21#200508-200908

DK. GRAY M.M.,1F4

main53847-35120-C0iGRN21#200508-200908

BLACK,202

main53847-35120-D0iGRN21#..SR5200508-200908

DK. RED M.M.,3Q3

main53847-35120-E0iGRN21#200508-200908

BRONZE M.M.,4S2

main53847-35120-J1iGRN21#200508-200908

DK.BLUE MC.,8S6

53848AEXTENSION, FRONT WHEEL OPENING OR ARCH MOULDING, LH

main53848-35100-B0iKZN215..LIMD;GRN215..5FC..LIMD200211-200508

SILVER ME.,1D4

main53848-35100-B0iGRN215..LIMD200211-200508

LIMITED PACKAGE,SILVER ME.,1D4

main53848-35100-B1iGRN215..LIMD200211-200508

LIMITED PACKAGE,DK.GRAY M.M.,1E9

main53848-35100-B1iGRN215..LIMD200211-200508

DK.GRAY M.M.,1E9

main53848-35100-C0iKZN215..SR5;GRN21#..5FC..SR5200211-200508

LIMITED PACKAGE,BLACK,202

main53848-35100-C0iKZN215..SR5;GRN21#..5FC..SR5200211-200508

BLACK,202

main53848-35100-F0iGRN21#..SR5200211-200508

LIMITED PACKAGE,CHAMPAGNE M.M.,587

main53848-35100-F0iGRN215..LIMD200211-200508

CHAMPAGNE M.M.,587

main53848-35100-J0iKZN215..LIMD;GRN215..5FC..LIMD200211-200508

DK.BLUE MC.,8Q0

main53848-35100-J0iGRN21#..SR5200211-200508

LIMITED PACKAGE,DK.BLUE MC.,8Q0

main53848-35100-J1iGRN215..LIMD200211-200508

GRAYISH BLUE ME.,8R3

main53848-35100-J1iKZN215..LIMD;GRN215..5FC..LIMD200211-200508

LIMITED PACKAGE,GRAYISH BLUE ME.,8R3

main53848-35110iGRN21#..SR5¥14,100200211-200508

NO PAINT REQ.

main53848-35120-A0iGRN21#200508-200908

WHITE,056

main53848-35120-B0iGRN21#200508-200908

SILVER ME.,1D4

main53848-35120-B1iGRN21#200508-200908

DK.GRAY M.M.,1E9

main53848-35120-B2iGRN21#200508-200908

DK. GRAY M.M.,1F4

main53848-35120-C0iGRN21#200508-200908

BLACK,202

main53848-35120-D0iGRN21#..SR5200508-200908

DK. RED M.M.,3Q3

main53848-35120-E0iGRN21#200508-200908

BRONZE M.M.,4S2

main53848-35120-J1iGRN21#200508-200908

DK.BLUE MC.,8S6

53858CBOLT, WHEEL OPENING

main90109-06304iGRN215,KZN215..LIMD¥70200211-200508

LIMITED PACKAGE

53875KGROMMET, SCREW

main90189-06028iGRN21#,KZN215¥110200211-200908

53875PSCREW, NO.1

main90159-60476iGRN21#,KZN215¥100200211-200510

main90159-60603iGRN21#¥60200511-200908

53911PANEL, FRONT VALANCE

main53901-35150-B0iGRN215,KZN215..LIMD200211-200508

SILVER ME.,1D4 ,1E9 ,202 ,587 ,8Q0 ,8R3

main53901-35150-B0iGRN215,KZN215..LIMD200211-200508

LIMITED PACKAGE,SILVER ME.,056 ,1D4 ,1E9 ,202 ,587 ,8Q0 ,8R3

main53901-35150-B1iKZN215..LIMD;GRN215..5FC..LIMD200211-200508

DK.GRAY M.M.,1E9

main53901-35150-B1iKZN215..LIMD;GRN215..5FC..LIMD200211-200508

LIMITED PACKAGE,DK.GRAY M.M.,1E9

main53901-35150-C0iKZN215..LIMD;GRN215..5FC..LIMD200211-200508

BLACK,202

main53901-35150-C0iKZN215..LIMD;GRN215..5FC..LIMD200211-200508

LIMITED PACKAGE,BLACK,202

main53901-35150-F0iGRN215,KZN215..LIMD200211-200508

CHAMPAGNE M.M.,587

main53901-35150-F0iGRN215,KZN215..LIMD200211-200508

LIMITED PACKAGE,CHAMPAGNE M.M.,587

main53901-35150-J0iKZN215..LIMD;GRN215..5FC..LIMD200211-200508

DK.BLUE MC.,8Q0

main53901-35150-J0iKZN215..LIMD;GRN215..5FC..LIMD200211-200508

LIMITED PACKAGE,DK.BLUE MC.,8Q0

main53901-35150-J1iKZN215..LIMD;GRN215..5FC..LIMD200211-200508

GRAYISH BLUE ME.,8R3

main53901-35150-J1iKZN215..LIMD;GRN215..5FC..LIMD200211-200508

LIMITED PACKAGE,GRAYISH BLUE ME.,8R3

75395HCLIP, OUTSIDE MOULDING, NO.1

main75395-35070iGRN21#¥220200211-200908

75396FCLIP, OUTSIDE MOULDING, NO.2

main75396-35020iGRN21#¥80200211-200908

75691BPAD, FRONT FENDER OUTSIDE MOULDING, RH

main75691-35020iGRN21#,KZN215¥900200211-200508

main75691-35030iGRN21#¥810200508-200908

75692BPAD, FRONT FENDER OUTSIDE MOULDING, LH

main75691-35020iGRN21#,KZN215¥900200211-200508

main75691-35030iGRN21#¥810200508-200908

75696BPAD, BODY OUTSIDE MOULDING, RH

main75696-35050iGRN21#¥380200211-200508

sub75696-35080¥380

main75696-35080iGRN21#¥380200508-200908

76109GUIDE SUB-ASSY, HOOD AIR INTAKE

main76109-35040iKZN215¥10,400200211-200508

76181BULGE, HOOD

main76181-21010-A2iKZN215..SR5200211-200508

WHITE,056

main76181-21010-B2iKZN215200211-200508

SILVER ME.,1D4

main76181-21010-B3iKZN215200211-200508

DK.GRAY M.M.,1E9

main76181-21010-C2iKZN215200211-200508

BLACK,202

main76181-21010-D1iKZN215..SR5200211-200508

RED M.M.,3P1

main76181-21010-D2iKZN215..SR5200211-200508

DK. RED M.M.,3Q3

main76181-21010-F0iKZN215200211-200508

CHAMPAGNE M.M.,587

main76181-21010-G1iKZN215..SR5200211-200508

DK.GREEN MC.,6Q7

main76181-21010-J2iKZN215200211-200508

DK.BLUE MC,8Q0

main76181-21010-J3iKZN215200211-200508

GRAYISH BLUE ME.,8R3

76183PROTECTOR, HOOD BULGE, NO.1

main76183-12030iKZN215¥130200211-200508

76187RETAINER, HOOD AIR INTAKE GUIDE, NO.1

main76187-35010iKZN215¥160200211-200508

76621BMUDGUARD, FRONT BODY, RH

main76621-35060iGRN21#¥2,550200211-200508

main76621-35100iGRN21#¥2,570200508

76622BMUDGUARD, FRONT BODY, LH

main76622-35060iKZN215;GRN21#..5FC¥2,550200211-200508

main76622-35100iGRN21#¥2,570200508

9015960603

main90159-60603¥60

9016745005

main90167-45005¥120

9017906007

main90179-06007¥80

9018906006

main90189-06006¥100

9046707188

main90467-07188¥130

9046708011

main90467-08011¥100

9046709169C0

main90467-09169C0

9046709184

main90467-09184¥240

9046710173

main90467-10173¥220

9054115024

main90541-15024¥200

91631J0612

main91631-J0612¥110

40 parts on this diagram · 3 diagrams in section
