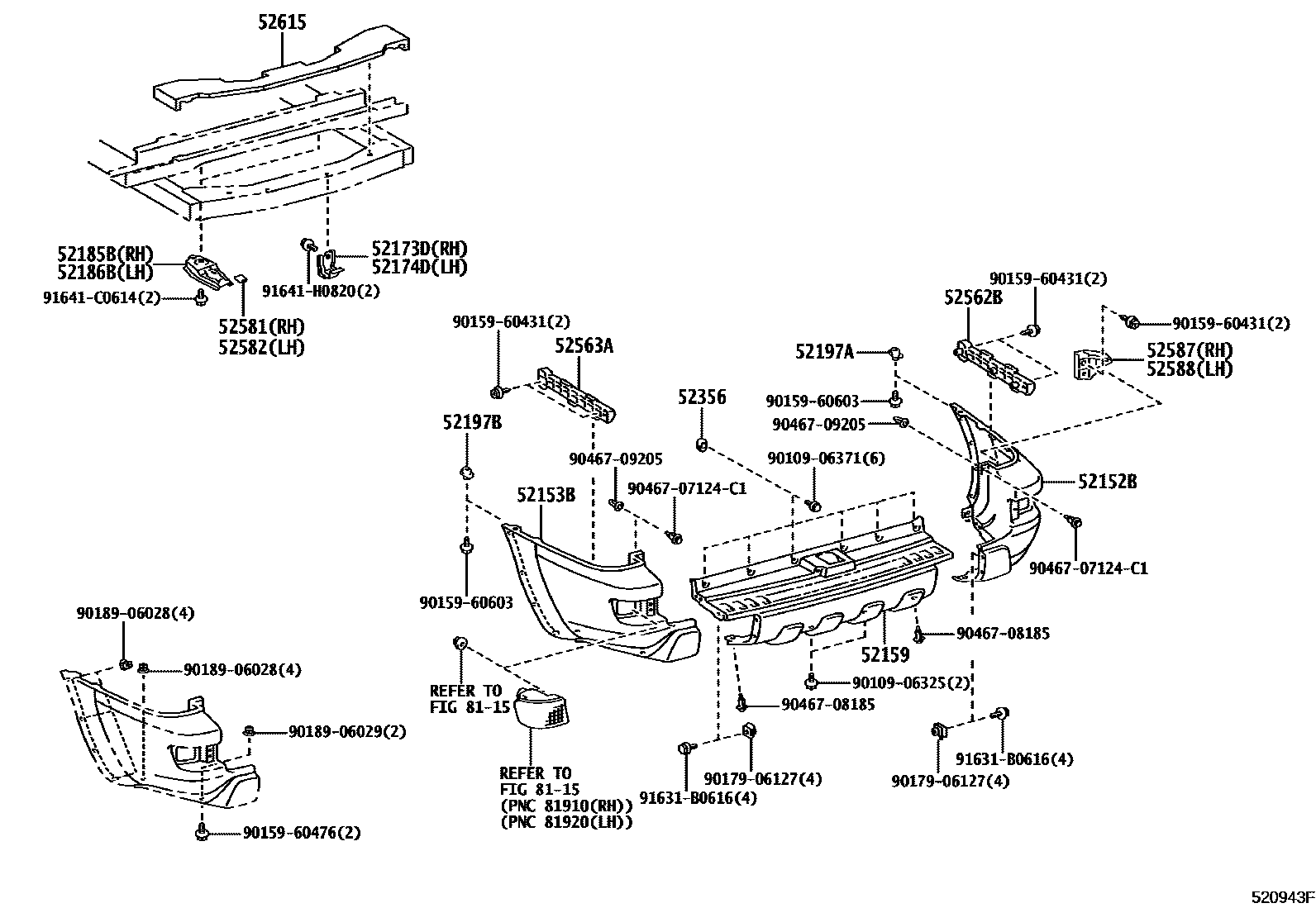

REAR BUMPER & BUMPER STAY
52152BEXTENSION, REAR BUMPER, RH
LIMITED PACKAGE
52153BEXTENSION, REAR BUMPER, LH
LIMITED PACKAGE
52159COVER, REAR BUMPER
NO PAINT REQ.
NO PAINT REQ.,LIMITED PACKAGE
PAINT REQ.
52173DREINFORCEMENT, REAR BUMPER BAR, RH
52174DREINFORCEMENT, REAR BUMPER BAR, LH
52185BBRACKET, REAR BUMPER SIDE MOUNTING, RH
52186BBRACKET, REAR BUMPER SIDE MOUNTING, LH
52197ABRACKET, REAR BUMPER SEAL, RH
52197BBRACKET, REAR BUMPER SEAL, LH
52356CUSHION, REAR BUMPER STEP
52562BRETAINER, REAR BUMPER, UPPER RH
52563ARETAINER, REAR BUMPER, UPPER LH
52581PROTECTOR, REAR BUMPER, RH
52582PROTECTOR, REAR BUMPER, LH
52587RETAINER, REAR BUMPER END, RH
52588RETAINER, REAR BUMPER END, LH
52615ABSORBER, REAR BUMPER ENERGY
8115
9010906325
main90109-06325
9010906371
main90109-06371
9015960431
main90159-60431
9015960476
main90159-60476
9015960603
main90159-60603
9017906127
main90179-06127
9018906028
main90189-06028
9018906029
main90189-06029
9046707124C1
main90467-07124C1
9046708185
main90467-08185
9046709205
main90467-09205
91631B0616
main91631-B0616
91641C0614
main91641-C0614
91641H0820
main91641-H0820
32 parts on this diagram · 2 diagrams in section
