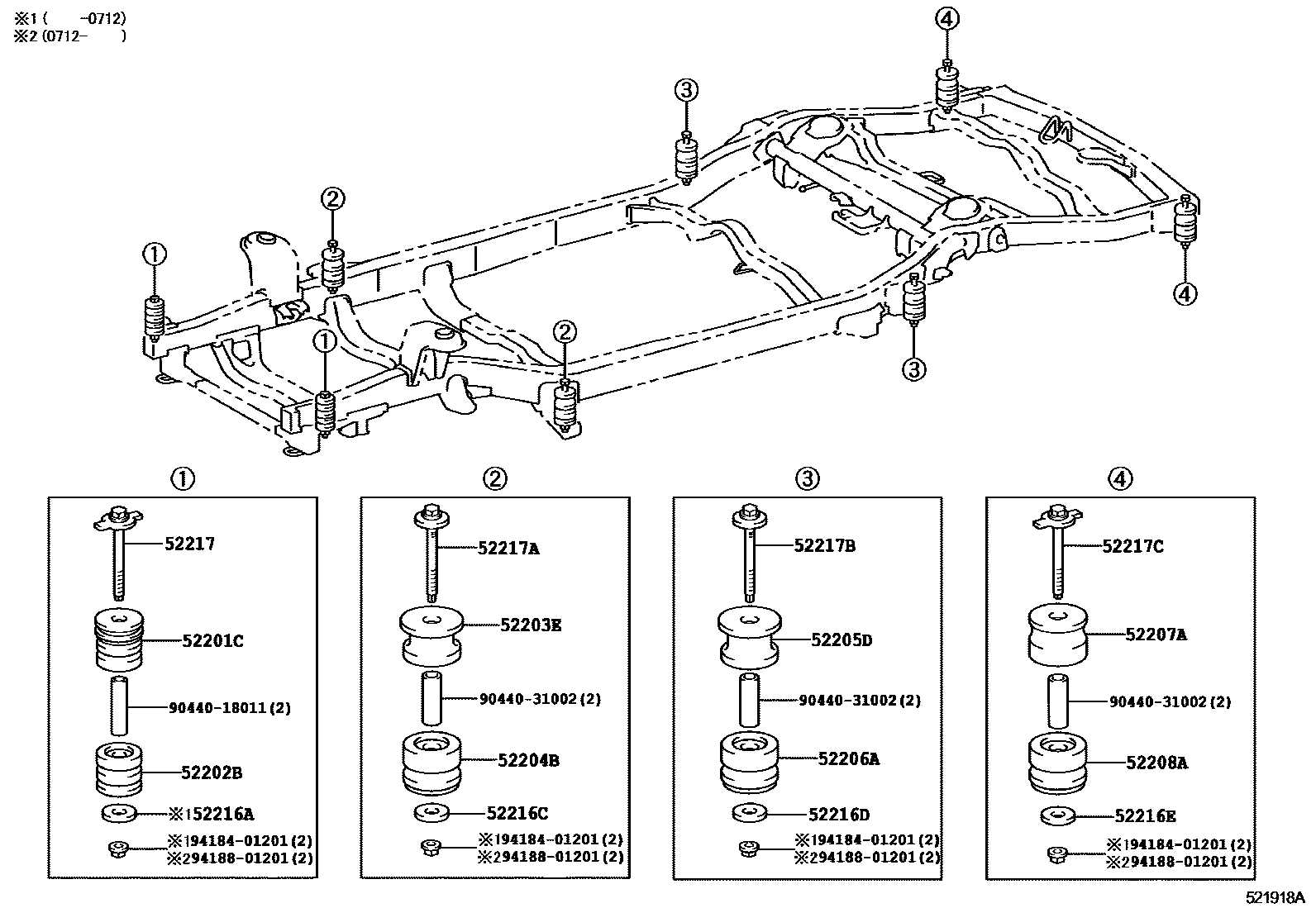

CAB MOUNTING & BODY MOUNTING

52201CCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 UPPER

main52201-35100iKZN215;GRN21#..5FC200211-200508

52202BCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 LOWER

main52202-35090iGRN21#200211-200508

52203ECUSHION SUB-ASSY, CAB MOUNTING, NO.2

main52203-35210iGRN21#200211-200508

52204BCUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER

main52204-35120iGRN21#200211-200508

52205DCUSHION SUB-ASSY, CAB MOUNTING, NO.3 UPPER

main52205-35160iGRN21#200211-200508

52206ACUSHION SUB-ASSY, CAB MOUNTING, NO.3 LOWER

main52206-35040iGRN21#200211-200508

52207ACUSHION SUB-ASSY, CAB MOUNTING, NO.4 UPPER

main52207-35050iGRN21#200211-200508

52208ACUSHION SUB-ASSY, CAB MOUNTING, NO.4 LOWER

main52208-35050iGRN21#200211-200508

52216ASTOPPER, CAB MOUNTING CUSHION

main90201-12078iGRN21#200211-200712

52216CSTOPPER, CAB MOUNTING CUSHION

main52216-60040iGRN21#200712

main90201-12078iGRN21#,KZN215200211-200712

52216DSTOPPER, CAB MOUNTING CUSHION

main52216-60040iGRN21#200712

main90201-12078iGRN21#,KZN215200211-200712

52216ESTOPPER, CAB MOUNTING CUSHION

main52216-60040iGRN21#200712

main90201-12078iGRN21#,KZN215200211-200712

52217BOLT, BODY MOUNTING

main52217-35180iGRN21#200211-200508

52217ABOLT, BODY MOUNTING

main52217-35191iGRN21#200211-200508

52217BBOLT, BODY MOUNTING

main52217-35191iGRN21#200211-200508

52217CBOLT, BODY MOUNTING

main52217-35180iGRN21#200211-200508

9044018011

main90440-18011

9044031002

main90440-31002

9418401201

main94184-01201

9418801201

main94188-01201

20 parts on this diagram · 1 diagram in section
