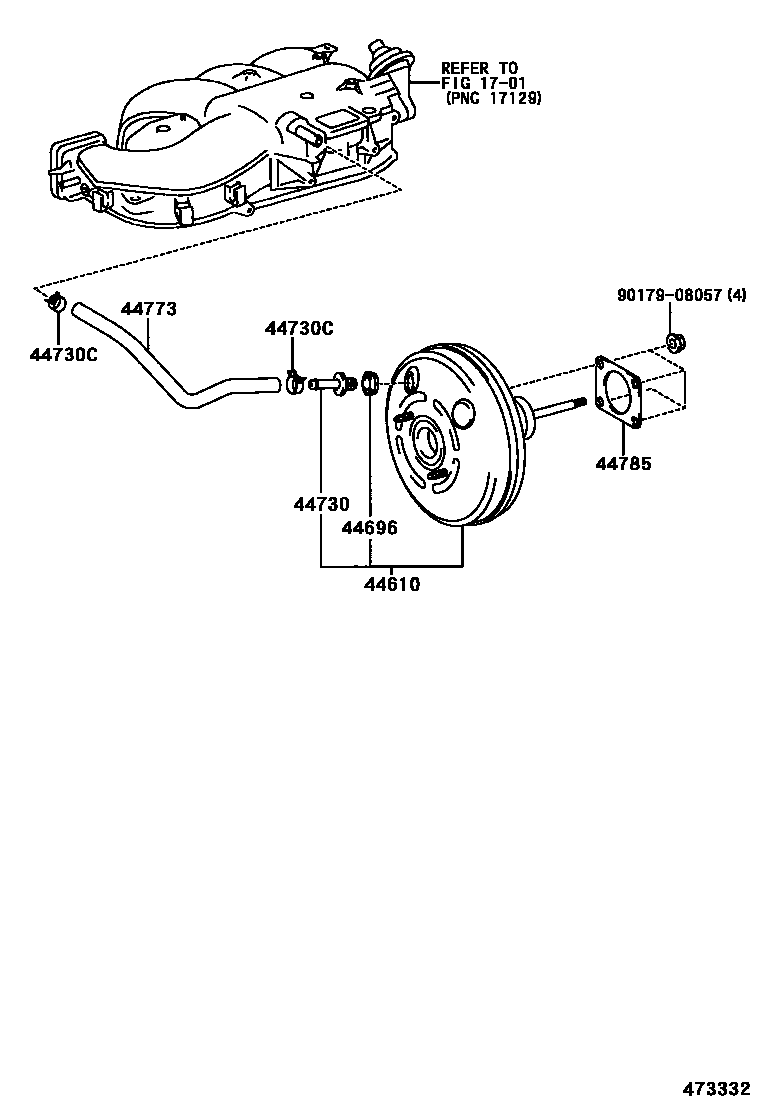

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1701

44610BOOSTER ASSY, BRAKE

main44610-6A180iGRN21#200408-200508

main44610-6A181iGRN21#200603-200902

main44610-6A182iGRN21#200903-200908

main44610-6A200iKZN215200211-200508

sub44610-6A201

44696GROMMET, CHECK VALVE

main90480-24439iGRN21#200211-200408

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-12070iKZN215200211-200508

main44730-20080iGRN21#200211-200408

44730CCLIP(FOR VACUUM HOSE)

main96133-41500×4iGRN21#200211-200508

44773HOSE, VACUUM, NO.2

main44773-60200iGRN21#200211-200408

main44773-60290iGRN21#200701-200702

44785GASKET, BRAKE BOOSTER

main44785-60020iGRN21#200211-200408

9017908057

main90179-08057

8 parts on this diagram · 2 diagrams in section
