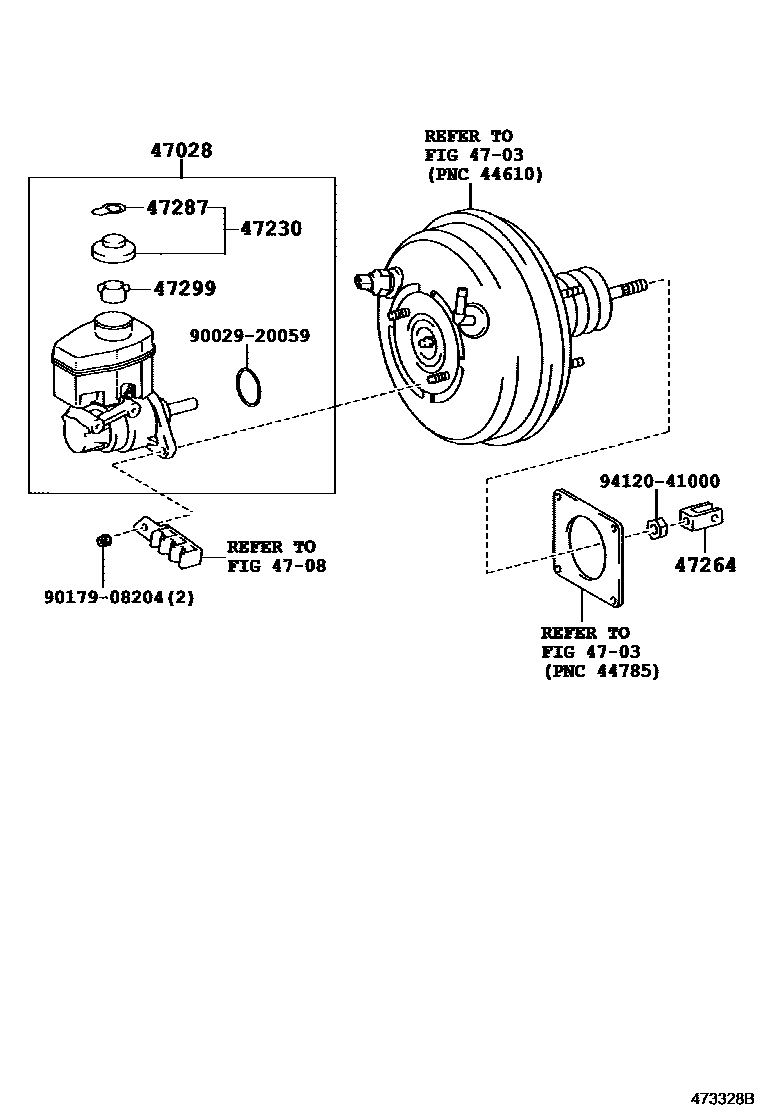

BRAKE MASTER CYLINDER

47028CYLINDER SUB-ASSY, BRAKE MASTER W/PLATE

main47028-60010iGRN21#200211-200508

4703

4708

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iGRN21#200211-200508

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-60020iGRN21#200211-200908

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iGRN21#200211-200508

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iGRN21#,KZN215200211-200508

9002920059

main90029-20059

9017908204

main90179-08204

9412041000

main94120-41000

10 parts on this diagram · 1 diagram in section
