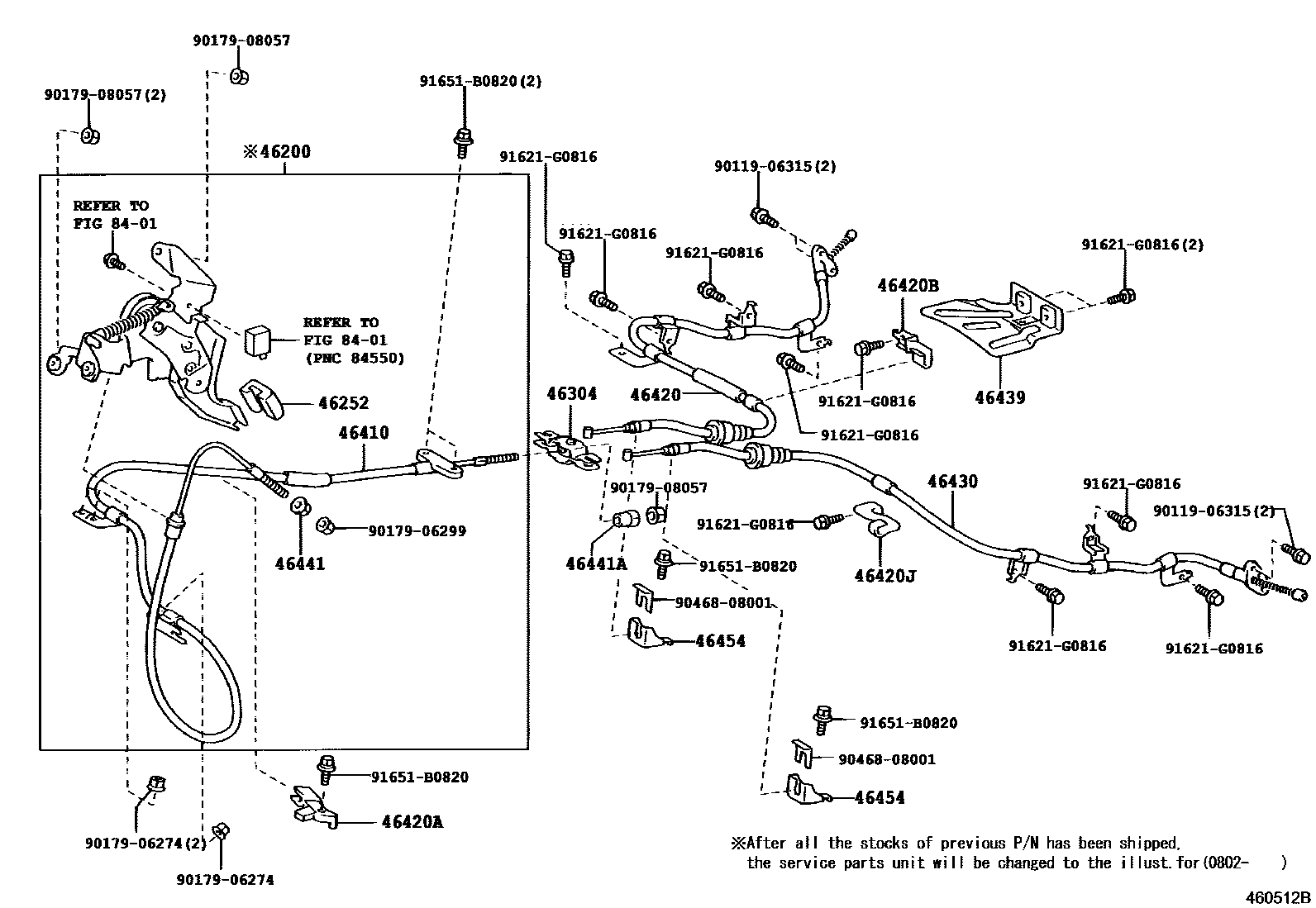

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-35010iKZN215;GRN21#..5FC200211-200802

sub46210-35040

sub46410-3D080

sub46441-12010

sub90179-06299

main46210-35040iGRN21#200802

46252PAD, PARKING PEDAL

main46252-52010iGRN21#200211-200508

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-17020iGRN21#200211-200508

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-3D080iGRN21#200211-200508

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-35760iGRN21#200211-200908

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main46411-35080iGRN21#200211-200508

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main46421-35020iGRN21#200211-200508

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main46431-35020iGRN21#200211-200508

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-35550iGRN21#200211-200908

46439INSULATOR, PARKING BRAKE CABLE HEAT

main46439-35060iGRN21#200211-200508

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iGRN21#200211-200508

46441ANUT, WIRE ADJUSTING, NO.2

main46441-35020iGRN21#200211-200508

46454BRACKET, CABLE RETAINER, FRONT

main46454-35180iGRN21#200211-200508

8401

9011906315

main90119-06315

9017906274

main90179-06274

9017906299

main90179-06299

9017908057

main90179-08057

9046808001

main90468-08001

91621G0816

main91621-G0816

91651B0820

main91651-B0820

21 parts on this diagram · 3 diagrams in section
