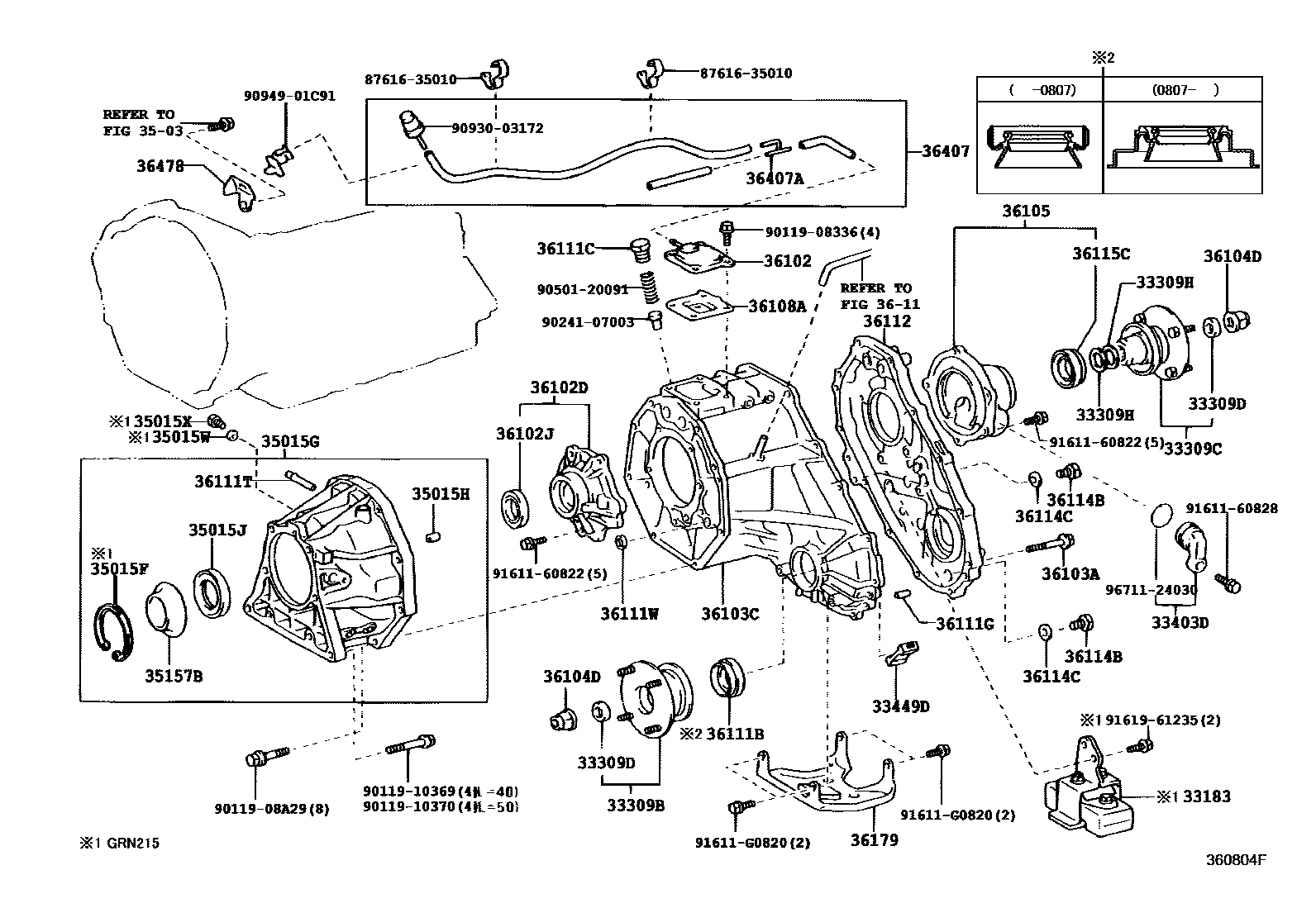

TRANSFER CASE & EXTENSION HOUSING

33183DAMPER, TRANSFER DYNAMIC

main33183-60030iGRN215200211-200408

33309BFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION

main33309-35110iGRN215,KZN215200211-200508

sub33309-35113

sub90311-41017

main33309-35111iGRN215200807

sub33309-35112

sub90311-41017

33309CFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION

main33309-35120iGRN215,KZN215200211-200508

33309DSEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)

main90312-23001×2iGRN215,KZN215200211-200508

33309HWASHER, TRANSFER OUTPUT SHAFT

main36275-35010×2iGRN215,KZN215200211-200508

N=30,OD=38

33403DCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE

main33403-35230iGRN215200211-200408

33449DMAGNET (FOR TRANSFER CASE)

main33449-32020iGRN215200508

35015FRING, HOLE SNAP(FOR TRANSFER ADAPTER)

main90521-72001iGRN215200508

35015GADAPTER, TRANSFER, REAR

main35015-0C010iGRN215200811

(L)

main35015-35080iGRN215200211-200408

main35015-35120iGRN215200508

(J)

35015HPIN, RING(FOR TRANSFER CASE)

main90250-11003×2iKZN215;GRN215..5FC200405-200508

main90253-11001×2iGRN215200211-200408

35015JSEAL, OIL(FOR TRANSFER CASE ADAPTER REAR)

main90311-43007iGRN215200211-200408

35015WRING, O(FOR TRANSMISSION CASE ADAPTER REFILL PLUG)

main90301-15004iGRN215200408-200508

35015XPLUG, REFILL(FOR TRANSMISSION CASE ADAPTER)

main90341-18059iGRN215200508-200908

3503

35157BRECEIVER, TRANSFER CASE REAR ADAPTER OIL

main35157-60010iGRN215200211-200408

36102COVER SUB-ASSY, TRANSFER CASE

main36102-35040iGRN215,KZN215200211-200508

36102DRETAINER SUB-ASSY, TRANSFER RH BEARING

main36102-35060iGRN215,KZN215200211-200508

36102JSEAL, TYPE T OIL (FOR TRANSFER COVER)

main90311-43008iGRN215,KZN215200211-200508

36103ABOLT (FOR TRANSFER CASE)

main90119-08A28×12iGRN215,KZN215200211-200508

*8-1.25PX55-30

36103CCASE, TRANSFER, FRONT

main36103-35060iGRN215,KZN215200211-200508

sub36101-71020

36104DNUT (FOR TRANSFER OUTPUT SHAFT)

main90179-22016×2iGRN215,KZN215200211-200508

36105HOUSING SUB-ASSY, TRANSFER EXTENSION, FRONT

main36105-35040iGRN215,KZN215200211-200508

36108ADEFLECTOR SUB-ASSY, BREATHER OIL

main36128-35060iGRN215,KZN215200211-200508

3611

36111BSEAL, OIL (FOR TRANSFER CASE)

main90311-41010iGRN215,KZN215200211-200508

main90311-41012iGRN215200609-200807

main90311-41013iGRN215200807

36111CPLUG (FOR TRANSFER CASE)

main90341-14012iGRN215,KZN215200211-200508

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10214×2iGRN215,KZN215200211-200508

L=14,OD=10

36111TTUBE (FOR TRANSFER CASE)

main90441-05001iGRN215200211-200408

sub90406-T0007

36111WPLUG, TIGHT NO.2(FOR TRANSFER CASE)

main90331-15003iGRN215,KZN215200211-200508

36112CASE, TRANSFER, REAR

main36112-34010iGRN215,KZN215200211-200508

36114BPLUG, NO.1 (FOR TRANSFER CASE)

main90341-18006×2iGRN215200508

36114CGASKET, NO.1 (FOR TRANSFER CASE)

main90430-18008×2iGRN215,KZN215200211-200508

36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)

main90311-41007iGRN215200508

sub90311-41020

36179PROTECTOR, TRANSFER CASE LOWER

main36179-35020iGRN215200211-200408

sub36179-60030

36407HOSE SUB-ASSY, TRANSFER BREATHER

main36407-60070iKZN215200211-200508

main36407-60110iGRN215200211-200408

main36407-60120iGRN215200408-200508

36407AWAY, 3(FOR TRANSFER BREATHER HOSE)

main90413-04008iGRN215200211-200408

36478BRACKET, TRANSFER BREATHER

main36478-60010iGRN215200211-200408

8761635010CLAMP, COOLING UNIT CASE

main87616-35010

9011908336

main90119-08336

9011908A29

main90119-08A29

9011910369

main90119-10369

9011910370

main90119-10370

9024107003

main90241-07003

9050120091

main90501-20091

9093003172

main90930-03172

9094901C91

main90949-01C91

9161160822

main91611-60822

9161160828

main91611-60828

91611G0820

main91611-G0820

9161961235

main91619-61235

9671124030

main96711-24030

51 parts on this diagram · 1 diagram in section
