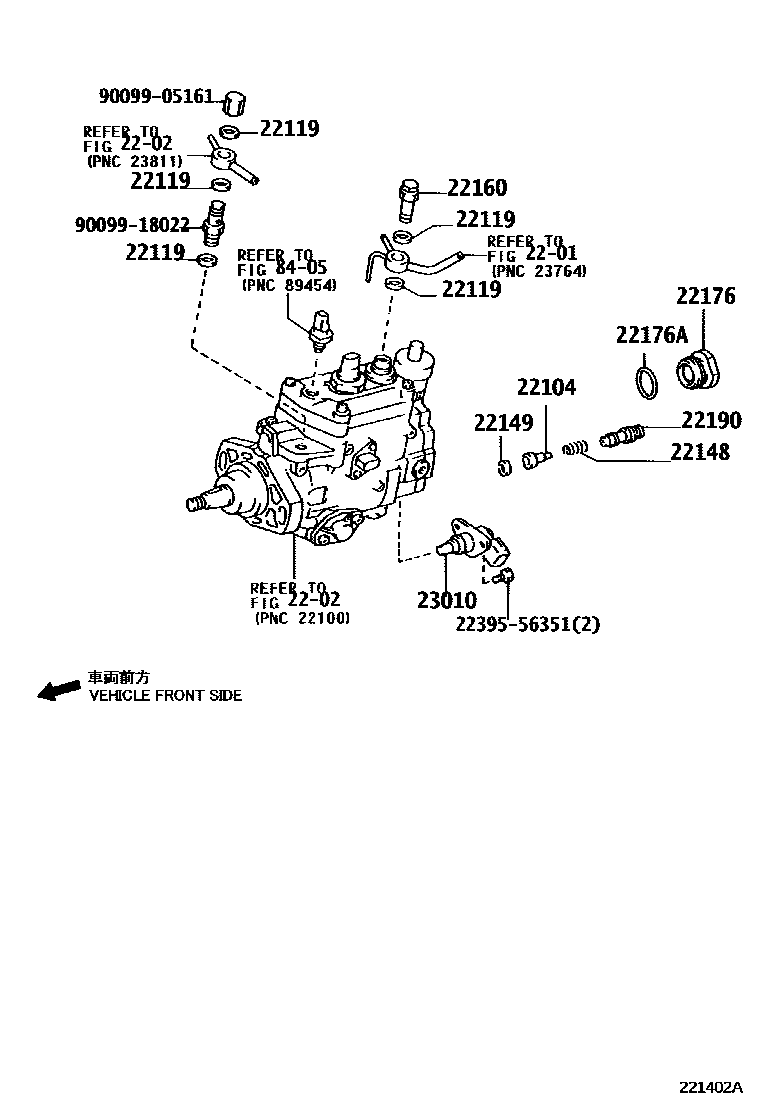

INJECTION PUMP BODY

2201

2202

22104VALVE SUB-ASSY, INJECTION PUMP DELIVERY

main22104-67100×4i1KZTE..KZN215200211

22119WASHER, AIR BLEEDER NIPPLE

main22119-77020×5i1KZTE..KZN215200211

sub90201-12109

22148SPRING, DELIVERY VALVE

main22148-54010×4i1KZTE..KZN215200211

22149GASKET, DELIVERY VALVE

main22149-56351×4i1KZTE..KZN215200211

22160SCREW SUB-ASSY, OVERFLOW

main22160-67100i1KZTE..KZN215200211

22176PLUG, DISTRIBUTIVE HEAD

main22176-54640i1KZTE..KZN215200211

22176ARING, O(FOR DISTRIBUTIVE HEAD PLUG)

main22193-54772i1KZTE..KZN215200211

22190VALVE SUB-ASSY, SNUBBER

main22190-6A680×4i1KZTE..KZN215200211

23010VALVE ASSY, TIMING CONTROL

main23010-67010i1KZTE..KZN215200211

8405

2239556351BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)

main22395-56351

9009905161

main90099-05161

9009918022

main90099-18022

15 parts on this diagram · 1 diagram in section
