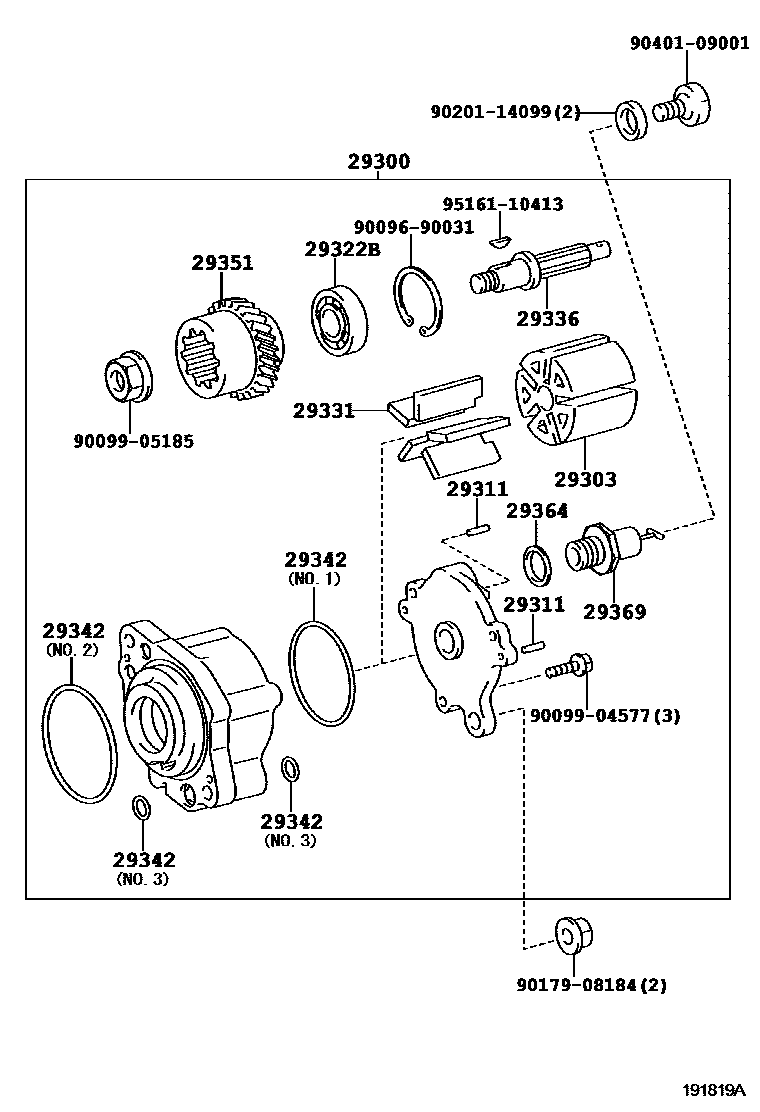

VACUUM PUMP

29300PUMP ASSY, VACUUM

main29300-67020i1KZTE..KZN215200211-200508

29303ROTOR SUB-ASSY, VACUUM PUMP

main29303-67020i1KZTE..KZN215200211

29311PIN, VACUUM PUMP DOWEL, NO.1

main29311-76010×2i1KZTE..KZN215200211

29322BBEARING, VACUUM PUMP

main90099-10185i1KZTE..KZN215200211

29331BLADE, VACUUM PUMP, A

main29331-67020×5i1KZTE..KZN215200211

29336SHAFT, VACUUM PUMP

main29336-58050i1KZTE..KZN215200211

29342PACKING, VACUUM PUMP

main29342-58010i1KZTE..KZN215200211

NO.1

main29342-67020i1KZTE..KZN215200211

NO.2

main29342-68010×2i1KZTE..KZN215200211

NO.3

29351GEAR, VACUUM PUMP

main29351-67020i1KZTE..KZN215200211

29364WASHER, VACUUM PUMP

main29364-66010i1KZTE..KZN215200211

29369VALVE SUB-ASSY, CHECK

main29369-64030i1KZTE..KZN215200211

9009690031

main90096-90031

9009904577

main90099-04577

9009905185

main90099-05185

9017908184

main90179-08184

9020114099

main90201-14099

9040109001

main90401-09001

9516110413

main95161-10413

17 parts on this diagram · 1 diagram in section
