WATER PUMP

0001 1 0002 1 0003 1

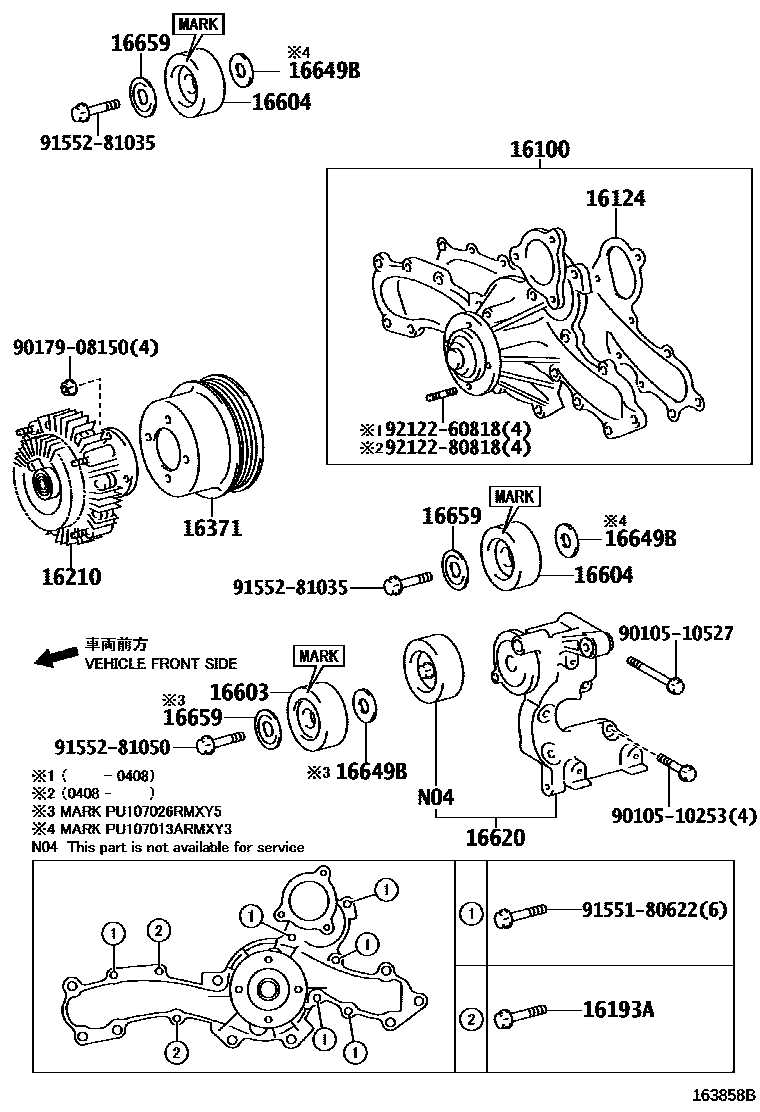

16100PUMP ASSY, ENGINE WATER

main16100-39405i1GRFE..GRN21#200211-200903

sub16100-39406

main16100-39406i1GRFE..GRN21#200903

main16100-69356i1KZTE..KZN215200211

sub16100-69357

16124GASKET, WATER PUMP COVER

main16124-31070i1GRFE..GRN21#200211-200508

main16124-67010i1KZTE..KZN215200211

16193ABOLT(FOR WATER PUMP COVER)

main16193-31070i1GRFE..GRN21#200211-200308

main16193-31080i1GRFE..GRN21#200308-200508

16210COUPLING ASSY, FLUID

main16210-31020i1GRFE..GRN21#200211-200508

sub16210-31021

main16210-67030i1KZTE..KZN215200211

16371PULLEY, FAN

main16371-31040i1GRFE..GRN21#200211-200508

main16371-67020i1KZTE..KZN215200211

16603PULLEY SUB-ASSY, IDLER, NO.1

main16603-31010i1GRFE..GRN21#200211-200409

sub16603-31040

sub90387-10174

sub91672-81060

main16603-31030i1GRFE..GRN21#200409-200511

sub16603-31040

sub90387-10174

sub91672-81060

main16603-31040i1GRFE..GRN21#200511-200810

main16603-31050i1GRFE..GRN21#200810

16604PULLEY SUB-ASSY, IDLER, NO.2

main16604-31010i1GRFE..GRN21#200211-200711

main16604-31010i1GRFE..GRN21#200711-200908

MARK=PU107013ARMXY1

main16604-31020i1GRFE..GRN21#200711-200908

MARK=PU107013ARMXY3

16620TENSIONER ASSY, V-RIBBED BELT

main16620-31010i1GRFE..GRN21#200211-200304

sub16620-31011

main16620-31011i1GRFE..GRN21#200304-200307

sub16620-31013

main16620-31012i1GRFE..GRN21#200307-200508

sub16620-31013

16649BPLATE, IDLER PULLEY COVER

main16649-31010i1GRFE..GRN21#200409-200511

main16649-31020i1GRFE..GRN21#200711-200908

16659PLATE, IDLER PULLEY COVER, NO.2

main16659-31010i1GRFE..GRN21#200211-200312

sub16659-31011

main16659-31011i1GRFE..GRN21#200312-200908

9010510253

main90105-10253

9010510527

main90105-10527

9017908150

main90179-08150

9155180622

main91551-80622

9155281035

main91552-81035

9155281050

main91552-81050

9212260818

main92122-60818

9212280818

main92122-80818
