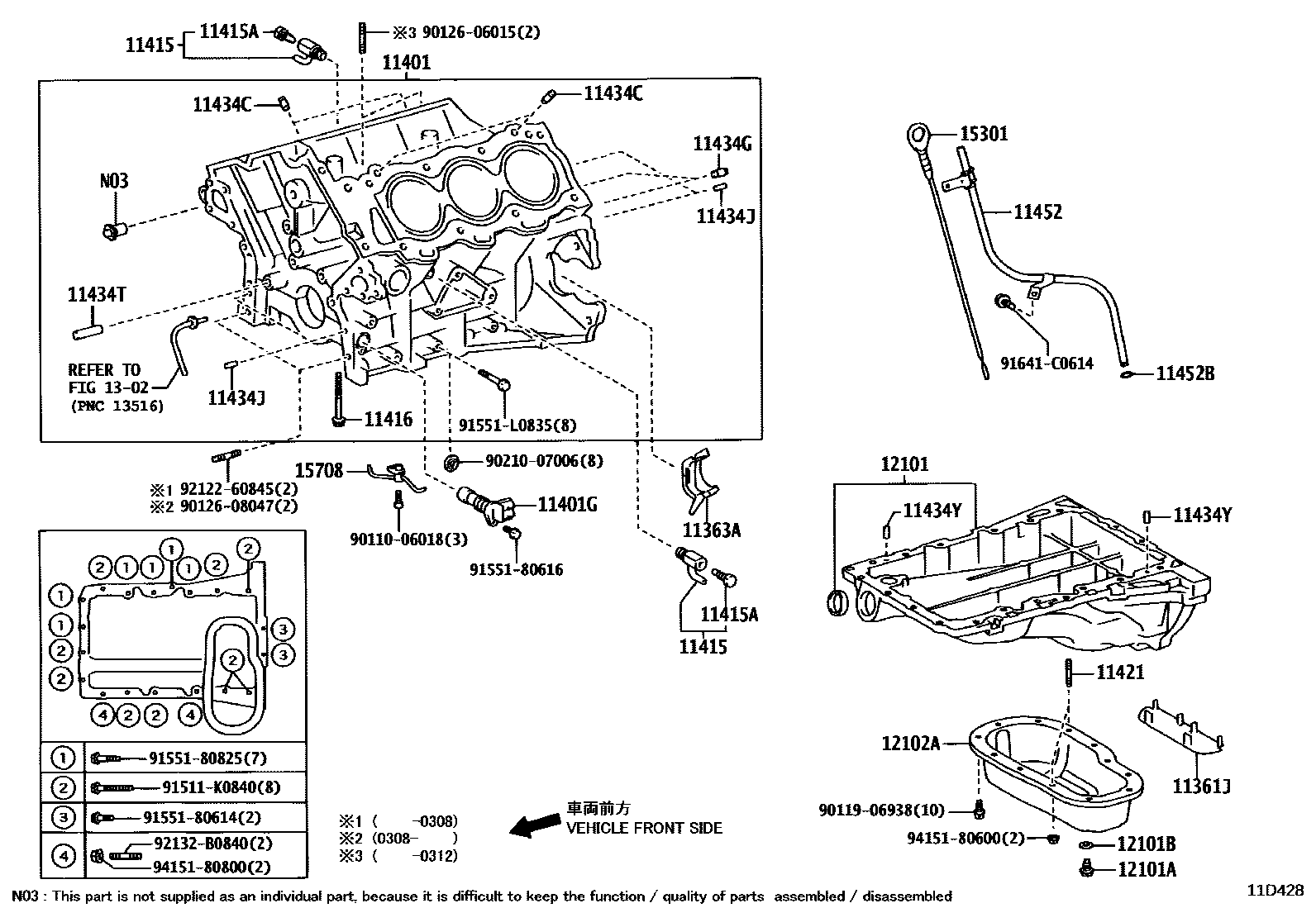

CYLINDER BLOCK

0001 1 0002 1 0003 1

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-31040i1GRFE..GRN21#..5FC200211-200508

11363ACOVER, FLYWHEEL HOUSING SIDE

main11363-31020i1GRFE..GRN21#200211-200508

sub11363-31050

11401BLOCK SUB-ASSY, CYLINDER

main11401-39575i1GRFE..GRN21#200211-200408

sub11401-39695

main11401-39695i1GRFE..GRN21#200408-200906

sub11011-31070

sub11401-80790

sub11401-80791

main11401-69839i1KZTE..KZN215200211-200403

sub11401-80766

main11401-80737i1KZTE..KZN215200403

sub11401-80766

main11401-80790i1GRFE..GRN21#200906-200908

sub11401-80795

11401GSENSOR, CRANK POSITION

main90919-05005i1KZTE..KZN215200211

main90919-05057i1GRFE..GRN21#200211-200508

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09125i1GRFE..GRN21#200211-200503

sub90910-09129

main90910-09129i1GRFE..GRN21#200503-200508

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09087i1GRFE..GRN21#200211-200508

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02072i1GRFE..GRN21#..5FC200211-200908

sub90910-02176

main90910-02113i1KZTE..KZN215200211

11421BOLT, STUD(FOR OIL PAN)

main90126-06015i1GRFE..GRN21#200211-200312

main90126-06028i1GRFE..GRN21#200312-200508

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08120i1GRFE..GRN21#200312-200908

L=18,OD=8

11434GPIN, STRAIGHT(FOR END PLATE)

main90250-10113i1GRFE..GRN21#200312-200908

main90250-10192i1KZTE..KZN215200211

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90250-04097i1GRFE..GRN21#..5FC200312-200908

main90253-15016i1KZTE..KZN215200211

11434TPIN, RING(FOR TIMING BELT IDLER BRACKET SET)

main90250-10030i1GRFE..GRN21#..5FC200312-200908

11434YPIN, STRAIGHT(FOR OIL PAN)

main90250-04097i1GRFE..GRN21#..5FC200211-200508

11452GUIDE, OIL LEVEL GAGE

main11452-31030i1GRFE..GRN21#200211-200508

main11452-67050i1KZTE..KZN215200211

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main96721-19010i1GRFE..GRN21#..5FC200211-200904

main96723-19010i1GRFE..GRN21#200904

12101PAN SUB-ASSY, OIL

main12101-30080i1KZTE..KZN215200211

sub12101-30081

main12101-31070i1GRFE..GRN21#200211-200407

sub12101-31071

main12101-31071i1GRFE..GRN21#..5FC200407-200508

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i1KZTE..KZN215200211-200508

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i1GRFE..GRN21#200211-200508

12102APAN SUB-ASSY, OIL, NO.2

main12102-30020i1KZTE..KZN215200211

main12102-31010i1GRFE..GRN21#..5FC200211-200508

1302

15301GAGE SUB-ASSY, OIL LEVEL

main15301-31060i1GRFE..GRN21#200211-200508

main15301-67031i1KZTE..KZN215200211

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-30010i1KZTE..KZN215200211-200307

sub15708-30011

main15708-30011i1KZTE..KZN215200307

main15708-31020i1GRFE..GRN21#200211-200508

9011006018

main90110-06018

9011906938

main90119-06938

9012606015

main90126-06015

9012608047

main90126-08047

9021007006

main90210-07006

91511K0840

main91511-K0840

9155180614

main91551-80614

9155180616

main91551-80616

9155180825

main91551-80825

91551L0835

main91551-L0835

91641C0614

main91641-C0614

9212260845

main92122-60845

92132B0840

main92132-B0840

9415180600

main94151-80600

9415180800

main94151-80800

37 parts on this diagram · 3 diagrams in section
