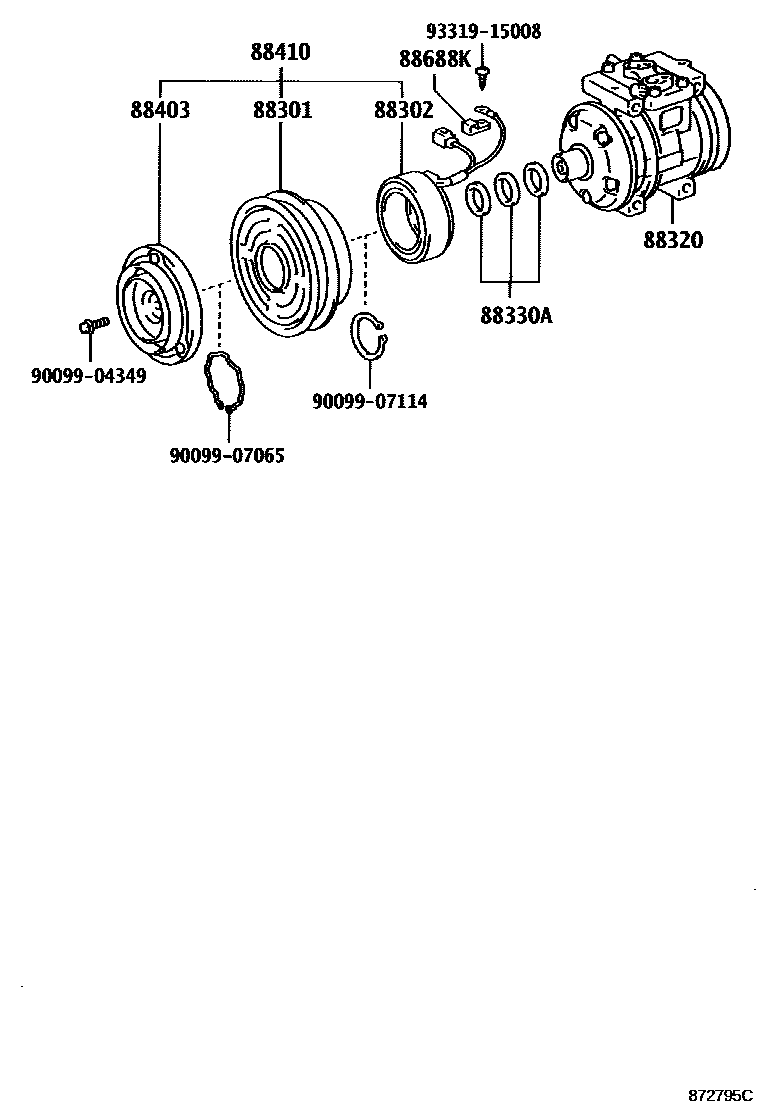

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-12150iRZN18#199608-200211

main88412-26030iKZN185199511-200211

main88412-35090iVZN18#199511-200211

main88412-95J00iRZN185199511-199608

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-22310iKZN185,RZN185,VZN185199511-199608

main88411-2A030iKZN185,RZN18#,VZN18#199608-200211

88320COMPRESSOR ASSY, COOLER

main88320-35450iRZN18#199511-200211

sub88320-26H91

main88320-35470iKZN185199807-200008

sub88320-26H91

main88320-35600iVZN18#199511-200211

main88320-35610iKZN185199604-199807

sub88320-26H91

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iKZN185,RZN185,VZN185199511-199807

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-30290iKZN185,RZN185,VZN185199511-199807

main88403-50020iVZN18#199807-200211

88410CLUTCH ASSY, MAGNET

main88410-34040iRZN18#199511-200211

main88410-35250iKZN185199511-200211

main88410-35340iVZN185199511-199807

main88410-35360iVZN18#199807-200211

88688KBRACKET, COOLER COMPRESSOR

main88688-2D770iKZN185199604

main88688-35390iRZN18#199511

main88688-37320iVZN185199604-199807

9009904349

main90099-04349

9009907065

main90099-07065

9009907114

main90099-07114

9331915008

main93319-15008

11 parts on this diagram · 4 diagrams in section
